Economic EuroVision RV Double Glazed Top-Hung Hinged Caravan Windows for Recreational Vehicle and expedition Motorhomes

Economic EuroVision RV Double Glazed Top-Hung Hinged Caravan Windows for Recreational Vehicle and expedition Motorhomes

FOB Reference Price: Get Latest Price

≥5 Pieces

US $135

≥50 Pieces

US $122

≥100 Pieces

US $117

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Round Corner:: R=75

Frame color Optional:: White, black,silver grey,or customizable.

Glass:: Grey, double glazing acrylic panel,UV resistance

Open Method:: Telescopic strut stays open at 10 and 35 degrees

Wall thickness:: 22-55mm or customize

Blind & FlyScreen:: Pleated blind or roller blind, with PVC frame or aluminum frame

Suitable:: Road RV, Caravan Trailer,Truck Campers

Quality:: Emark, DOT

Quick Details

Place of Origin:: China

Brand Name:: GET CAMPING | GET VEHICLES

Window Frame:: Aluminum alloy

Round Corner:: R=75

Frame color Optional:: White, black,silver grey,or customizable.

Glass:: Grey, double glazing acrylic panel,UV resistance

Open Method:: Telescopic strut stays open at 10 and 35 degrees

Wall thickness:: 22-55mm or customize

Blind & FlyScreen:: Pleated blind or roller blind, with PVC frame or aluminum frame

Suitable:: Road RV, Caravan Trailer,Truck Campers

Quality:: Emark, DOT

Product Overview

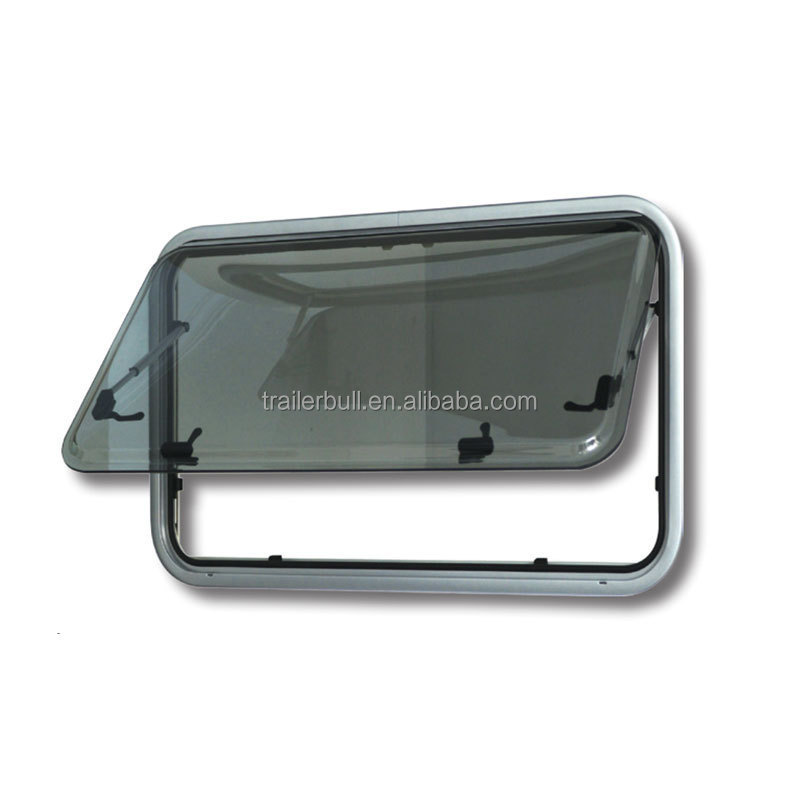

EV02 Economical EuroVision Motorhome Windows

GET Industry RV Recreation vehicles windows, suitable for three wall thickness ranges 22-55mm. The inner frames of windows will vary based on the wall thickness range. So it is necessary to specify the wall thickness when placing order.

FEATURES AT A GLANCE

Frame	Broken bridge aluminum alloy, good thermal insulation
Frame color	Black, white, gray, can also be customized
Glass	Double glazing acrylic, UV resistant, with convex or flat outer surface, black or light gray
Window stays	Infinitely adjustable window stays, window stays with click-clack automatic, or window stays in screw fix type
Handle	Two types of handles are available
Blind	Pleated blind or roller blind, with PVC frame or aluminum frame
Certificate	E-Mark or DOT
Wall thickness	22-55mm

Main application

Recreation vehicles windows, suitable for three wall thickness ranges 22-55mm. The inner frames of windows will vary
based on the wall thickness range. So it is necessary to specify the wall thickness when placing order.

Interior elevation

Blind & Fly Screen elevation

PRODUCT SPECIFICATIONS

Window					AL pleated blind		PVC-Rollo
Cut Hole size	Overall size (mm)	Weight (kg)	Overall size (mm)	Weight (kg)	Overall size (mm)	Weight (kg)
H x W (mm)	（W+27)x(H+27)	Weight (kg)		Weight (kg)	(W+27) x (H+44)	Weight (kg)	(W+51)x(H+75.5)
450x300	327 x 477	1.95	327 x 494	1.02	351 x 525.5	0.67
300x350	377 x 327	1.61	377 x 344	1.08	401 x 375.5	0.67
300x450	477 x 327	1.95	477 x 344	1.34	501 x 375.5	0.85
400x450	477 x 427	2.38	477 x 444	1.39	501 x 475.5	0.91
500x450	477 x 527	2.82	477 x 544	1.44	501 x 575.5	0.97
250x500	527 x 277	1.89	527 x 294	1.45	551 x 325.5	0.9
300x500	527 x 327	2.12	527 x 344	1.48	551 x 375.5	0.94
350x500	527 x 377	2.35	527 x 394	1.5	551 x 425.5	0.97
400x500	527 x 427	2.58	527 x 444	1.53	551 x 475.5	1
450x500	527 x 477	2.82	527 x 494	1.55	551 x 525.5	1.03
500x500	527 x 527	3.05	527 x 544	1.58	551 x 575.5	1.07
510x510	537 x 537	3.14	537 x 554	1.61	561 x 585.5	1.09
500x550	577 x 527	3.28	577 x 544	1.71	601 x 575.5	1.16
350x600	627 x 377	2.72	627 x 394	1.77	651 x 425.5	1.15
400x600	627 x 427	2.98	627 x 444	1.79	651 x 475.5	1.18
450x600	627 x 477	3.25	627 x 494	1.82	651 x 525.5	1.22
500x600	627 x 527	3.51	627 x 544	1.84	651 x 575.5	1.25
600x600	627 x 627	4.04	627 x 644	1.89	651 x 675.5	1.32
610x610	637 x 637	4.15	637 x 654	1.92	661 x 685.5	1.35
450x650	677 x 477	3.46	677 x 494	1.95	701 x 525.5	1.31
300x700	727 x 327	2.79	727 x 344	2.01	751 x 375.5	1.29
350x700	727 x 377	3.09	727 x 394	2.03	751 x 425.5	1.33
400x700	727 x 427	3.38	727 x 444	2.06	751 x 475.5	1.37
500x700	727 x 527	3.98	727 x 544	2.11	751 x 575.5	1.44
510x700	727 x 537	4.04	727 x 554	2.11	751 x 585.5	1.44
600x700	727 x 627	4.57	727 x 644	2.16	751 x 675.5	1.51
800x700	727 x 827	5.76	727 x 844	2.26	751 x 875.5	1.65
900x700	727 x 927	6.35	727 x 944	2.31	751 x 975.5	1.72
400x800	827 x 427	3.79	827 x 444	2.32	851 x 475.5	1.55
450x800	827 x 477	4.11	827 x 494	2.35	851 x 525.5	1.58
500x800	827 x 527	4.44	827 x 544	2.37	851 x 575.5	1.62
510x800	827 x 537	4.51	827 x 554	2.38	851 x 585.5	1.63
350x900	927 x 377	3.83	927 x 394	2.56	951 x 425.5	1.69
450x900	927 x 477	4.55	927 x 494	2.61	951 x 525.5	1.77
500x900	927 x 527	4.91	927 x 544	2.64	951 x 575.5	1.81
550x900	927 x 577	5.27	927 x 594	2.66	951 x 625.5	1.85
600x900	927 x 627	5.63	927 x 644	2.69	951 x 675.5	1.89
900x900	927 x 927	7.79	927 x 944	2.84	951 x 975.5	2.12
610x910	937 x 637	5.75	937 x 654	2.72	961 x 685.5	1.91
250x1000	1027 x 277	3.41	1027 x 294	2.78	1051 x 325.5	1.79
500x1000	1027 x 527	5.37	1027 x 544	2.9	1051 x 575.5	1.99
510x1000	1027 x 537	5.45	1027 x 554	2.91	1051 x 585.5	2
800x1000	1027 x 827	7.73	1027 x 844	3.05	1051 x 875.5	2.24
450x1100	1127 x 477	5.41	1127 x 494	3.14	1151 x 525.5	2.14
550x1100	1127 x 577	6.26	1127 x 594	3.19	1151 x 625.5	2.22
300x1200	1227 x 327	4.48	1227 x 344	3.33	1251 x 375.5	2.19
350x1200	1227 x 377	4.93	1227 x 394	3.36	1251 x 425.5	2.23
500x1200	1227 x 527	6.3	1227 x 544	3.43	1251 x 575.5	2.36
600x1200	1227 x 627	7.21	1227 x 644	3.48	1251 x 675.5	2.45
700x1200	1227 x 727	8.13	1227 x 744	3.53	1251 x 775.5	2.54
800x1200	1227 x 827	9.04	1227 x 844	3.58	1251 x 875.5	2.62
510x1300	1327 x 537	6.86	1327 x 554	3.7	1351 x 585.5	2.56
600x1300	1327 x 627	7.74	1327 x 644	3.75	1351 x 675.5	2.64
575x1400	1427 x 602	8.01	1427 x 619	4	1451 x 650.5	2.8
550x1450	1477 x 577	8	1477 x 594	4.12	1501 x 625.5	2.87
Specifications can be customized according to customer requirements, W: width of car body opening, H: height of car body opening.

● Installation：Clip with sheet metal.
● Wall thickness：30~36、37~41、42~45mm.
● Frame：High quality aluminum alloy .
● Panel：Laminated aluminum sheet with powder coated and insulation material.
● Lock：2-point locking system made in Europe，M1 tested.
● Hinges：Safty Aluminum hinges for motor vehiches.
● Window：Double glazing acrylic from Europe.E-mark.
● Flyscreen：RAL9001 ASA frame with black gauze.
● Others：ABS inner shell with abat vent wastebin and solid handle.

Fast Installation

Wall Hole Fitting diagram

SALES AND SERVICE NETWORK

SIMILAR PRODUCTS

FAQ

Can you pre-cut openings for windows and doors?
We can offer this service with cost as we have embeded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embeded strengthen parts can not make . So if it willl work in really bad expedition, you'd better let us pre-cut opennings for windows and doors.

Can you do departure angles?
Yes, we have two size of the box shape, one is the standard square shape , the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need.

-Can you design subframes?
We have the service of this, but you need supply the full chassis layout to us in advance.

- Can I use different windows and doors than what’s listed on your specification?
Yes. However, we highly recommend our windows and doors as they work in perfect balance with our camper bodies.

–Can I order a camper body with an alcove?
Yes. Please ask us for our alcove quoting template.

–What’s included in the shipment?
1. CKD type with All panels cut to size (other than departure angle), 2. CBU type with assembled box per your requirements.

–Can you help with the interior layout?

No. We are solely a camper body supplier, not a full scale outfitter/design office.

What is a Flatbed Truck Camper?
Truck campers mounted on pickup trucks are the most popular. A unit referred to as a slide-in, or cab-over is lowered or slid into the bed of the pickup then secured in place using tie-downs and turnbuckles. Pickup campers can be mounted on trucks as small as half-ton models, also known as light-duty pickups, such as the Ford F-150, Ram 1500, Chevrolet Silverado 1500, GMC Sierra 1500, Nissan Titan and Toyota Tundra. These trucks are rated to carry loads up 1,000 lbs. making them suitable for small slide-ins. Larger camper units require a three-quarter or one-ton pickup. Flatbed truck campers are mounted on trucks with a flatbed. And as the name suggests, they are built with no fixed sides, tailgate or roof. Tie-downs are typically located along the side of the trailer. Some people remove the truck bed from their pickup truck and replace it with a flatbed. Some flatbed truck and campers can range up to 53 feet long, accommodating a larger, more roomy camper body, although most camper bodies are 6.5 to 11.5 feet in length. The resulting vehicle often looks much like a Class C RV. The difference being that the camper portion can be lifted off, allowing the vehicle underneath to revert to use as a truck.

Why Choose a Flatbed Truck Camper?
1. Off-Road Capabilities: Truck campers in general, both the pickup and flatbed based models, are favorites with owners who plan to take their rigs off-road, do a lot of boondocking, or just enjoy going where more “delicate” motorhomes wouldn’t dare. The four-wheel-drive feature of many trucks lets the truck camper travel through sand, mud, and steep and bumpy conditions that would destroy a typical motorhome, or at least leave it waiting for a tow.

2. Can Tow A Trailer: Truck campers, with their more powerful engines, also are great for towing boats, horse trailers, or utility trailers loaded with motorcycles, ATVs, jet skis, snowmobiles or other “toys” that today’s adventure seekers want to bring along on vacation.

3. Easy to Drive: Truck campers are generally smaller than big motorhomes or fifth-wheel combinations. They have a tighter turning radius and are easier to park since they usually fit in a regular parking space. Gas mileage is likely to be a bit better as well. And the units are easier to store and maintain.

4. Registration and Insurance Savings: Another, often overlooked, advantage of a truck camper is the savings in insurance, registration, and licensing fees. Many, if not most, states consider the camper body itself to be cargo, instead of a typical RV that has to be registered as a separate vehicle. All owners have to do is maintain the license and registration on the
truck itself. The same goes for insurance, although some companies will offer a special rider for the truck camper, usually at low cost.

5. Tax Advantages: There may be a tax break involved as well. The IRS waives the $25,000 limit on expensing any vehicle
“equipped with a cargo area (either open or enclosed by a cap) of at least 6 feet in interior length that is not readily accessible from the passenger compartment.”

6. More Space: Since flatbed truck campers don’t have to fit into a pickup truck bed, they have additional storage space for a water heater, water tanks, extra batteries, and propane as well as more spacious living quarters. Some even have storage boxes mounted at the back of the camper.

They are secured to the truck bed itself, often with pins or bolts, without cutouts around the wheel wells and the sides of the truck bed. This lower center of gravity makes them more stable, as well, allowing heavy items like water, propane, and batteries to sit lower in the overall design. Some flatbed trucks also have a crew cab so a couple more adults can ride along too.

7. Multiple Uses: You can also remove the camper and use your flatbed truck for work or other activities. Therefore, your flatbed truck can be used in a variety of ways. Truck campers have some “cons” as well. They aren’t ideal for people that need accessible features, due to the higher clearance, and many find that the interior is cramped compared to a big Class A of the sort preferred by full-timers. While pickup campers have traditionally dominated the truck camper field, flatbed campers have become increasingly popular in recent years. The slide-out design necessarily causes the pickup camper to be narrow on the bottom to fit into the truck bed, then balloon out over the truck sides. This design not only limits storage and living space; it may create a top-heavy and affect stability.
