Quick Details
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-XFR350
-
Product name:
-
XRF Handheld alloy composition analyzer
-
Type:
-
alloy tester gun for scrap metal sorting
-
Optical design:
-
alloy composition analyzer
-
Model:
-
alloy analyzer
-
Weight:
-
≤ 1.75kg (including battery)
-
size:
-
254mm(L)X91mm(W)X319mm(H)
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-XFR350
-
Product name:
-
XRF Handheld alloy composition analyzer
-
Type:
-
alloy tester gun for scrap metal sorting
-
Optical design:
-
alloy composition analyzer
-
Model:
-
alloy analyzer
-
Weight:
-
≤ 1.75kg (including battery)
-
size:
-
254mm(L)X91mm(W)X319mm(H)
Products Description

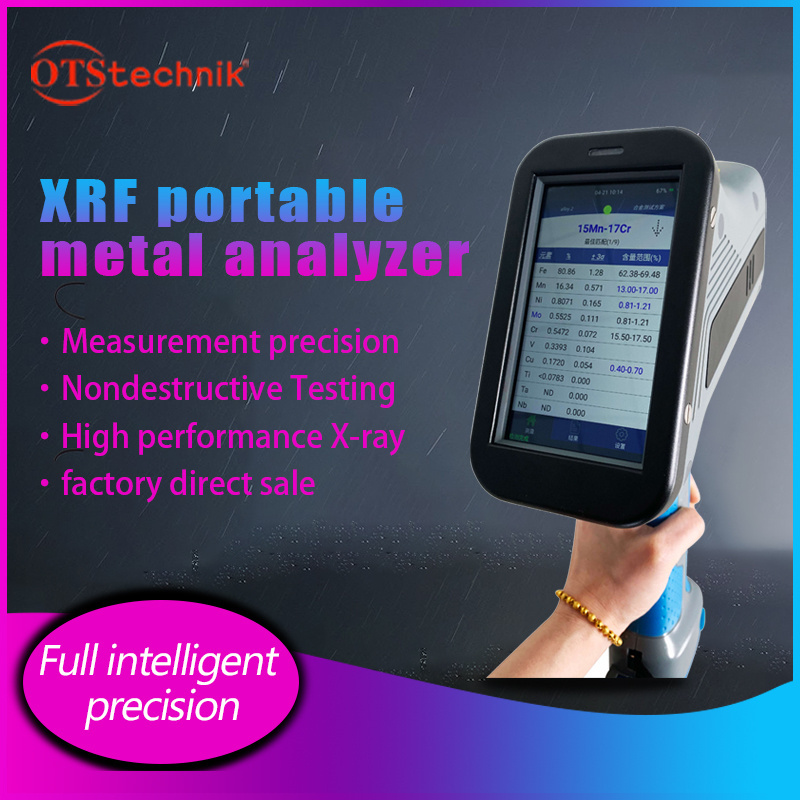

Handheld alloy composition analyzer
Title goes here.
excellent performance (used on site, nondestructive, fast and accurate)
High precision and fast speed, close to the analysis level of laboratory level, and quickly and accurately analyze the coating thickness and content on site. The whole analysis process can be completed in just a few seconds. Even non-technical personnel can easily master the one button operation.
non destructive testing (NDT)
It does not damage or affect the service performance of the tested object, does not damage the internal organization of the tested object, and there is no damage in the whole test process.
Product Paramenters
|
detector
|
High performance Sipin detection component
|
|
Excitation source
|
50kV / 200uA silver target / tungsten target end window integrated micro X-ray tube and high voltage source
|
|
Element detection range
|
Elements with atomic numbers ranging from 20 to 92
[calcium (CA) to uranium (U)] can be measured |
|
Detection object
|
solid
|
|
Power Supply
|
1. Rechargeable lithium battery, standard 6800mah, voltage: 7.2V; Sustainable work up to 12 hours;
|
|
|
2. The instrument has the function of hot plug, delayed power off, no need to shut down when replacing the battery, and the
battery has its own power display; |
|
camera
|
It has a built-in 5 megapixel HD camera function, which can take pictures of the tested object for convenient management
|
|
Test report sending method
|
E-mail sending, Bluetooth synchronous transmission, software synchronous transmission
|
Details Images
Test function:
Performance advantage
1.light weight, small volume, ergonomic handle design, equipped with special instrument cover, easier to grasp and more convenient for field use.
2.5-inch high-definition screen supports multi-point control and can be clearly displayed in any light.
3.sealed integrated design, with waterproof and dustproof function, can be used continuously in harsh environment.
4.there is no need to prepare samples, and the surface of the object to be measured can be measured directly. The instrument can not only carry out rapid test by hand, but also use the test seat to carry out fine test on the sample for a long time
5.rapid nondestructive testing, which can be tested immediately after alignment, and the results can be reported in a few seconds. The performance is comparable to that of desktop computer, and the detection effect is fast and accurate.
6.the optional alloy analysis module can detect titanium, vanadium, chromium, manganese, iron, cobalt, nickel, copper, zinc, gallium, germanium, zirconium, niobium, molybdenum, ruthenium, rhodium, palladium, silver, indium, tin, antimony, hafnium, tantalum, tungsten, rhenium, platinum, gold, lead, bismuth and other elements at the same time. The elements can be customized according to customer needs.
7.large 27000mah lithium battery is selected, and the service life can reach three days. It is also equipped with AC and on-board charger to ensure power supply.
The hand-held XRF coating thickness analyzer is the first portable hand-held coating thickness analyzer using a new large screen high-resolution LCD and a new digital multichannel data processor. It can analyze the film thickness of large-area coated products. The instrument is not only small in volume and light in weight, but also can be carried with you for measurement; And superior performance, comparable to desktop computers.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
