Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huaquan
-
Model Number:
-
HQW400SGF
-
Speed:
-
1500/1800rpm
-
product type:
-
500KVA Diesel Genset Factory Price in Ghana
-
Engine Model:
-
6M26D484E200
-
Alternator Model:
-
HQ-F400
-
fuel consumption:
-
208g/kw.h
-
Generator Optional:
-
silent/ATS/trailer/electric pump/protector
-
warranty period:
-
one year or 1000 hours
-
Weight:
-
3600KG
-
Dimension:
-
4000*1600*1900
-
Power factor:
-
0.8 Lagging
-
400kw generator:
-
Key word
Quick Details
-
Rated Voltage:
-
400/230V 380/220V 220/110V
-
Rated Current:
-
720A
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huaquan
-
Model Number:
-
HQW400SGF
-
Speed:
-
1500/1800rpm
-
product type:
-
500KVA Diesel Genset Factory Price in Ghana
-
Engine Model:
-
6M26D484E200
-
Alternator Model:
-
HQ-F400
-
fuel consumption:
-
208g/kw.h
-
Generator Optional:
-
silent/ATS/trailer/electric pump/protector
-
warranty period:
-
one year or 1000 hours
-
Weight:
-
3600KG
-
Dimension:
-
4000*1600*1900
-
Power factor:
-
0.8 Lagging
-
400kw generator:
-
Key word
|

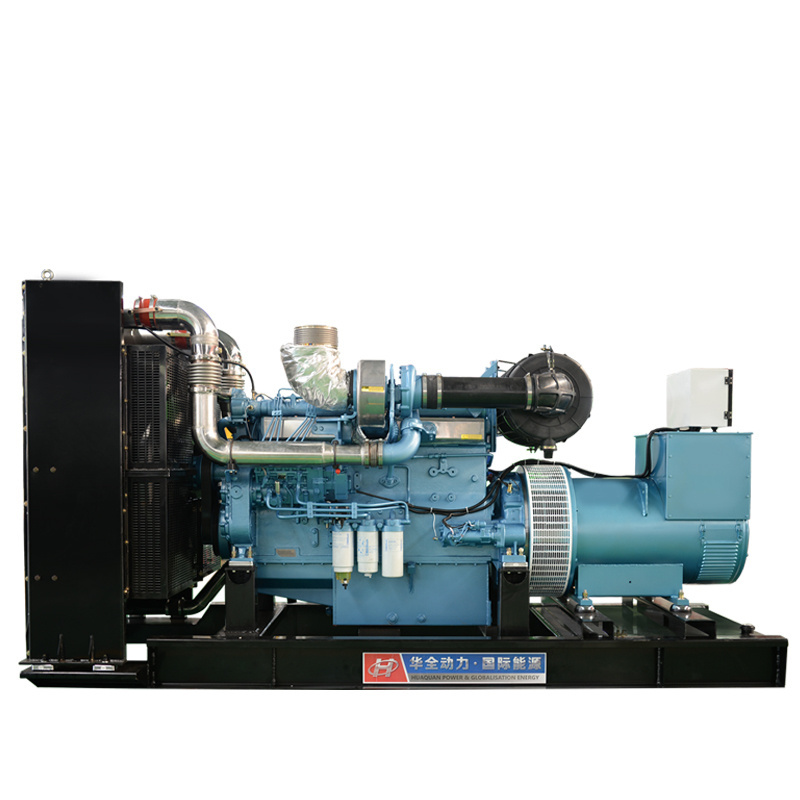

1、Huaquan 400kw diesel generator set, this choice is Weichai Boduan series engine, 6 cylinder, BOSCH integral inline pump, full speed regulator.
|
|
|
|
|
|
2、This generator set is equipped with high temperature parts and rotating parts protection device, which can greatly guarantee the safety of use.
|
|
|
|
|
|
3、The lubricating system designed by the top European design team, large flow oil pump, can provide higher oil pressure.
|
|
|
|
|
|
4、The base is equipped with a fuel tank, large capacity, longer battery life.
|
|
|
|
|
|
5、Adopt Zhongzhi control module, LCD screen display, there are manual and automatic starting methods, efficient and convenient
|
|
|
|
|
Angerlia Zhao
Whatsapp:+8613666361356
E-mail: hqgenerator@huaquanpower.com
Web:www.huaquanpower.com
ADD:Weifang City, Shandong Province, China
Thank you for your inquiry,we will do you our best to provide high-quality products and full range of servicess!!!
|
Technical parameters of diesel generator set
|
|
|
|
|
||||
|
Generator set model：HQ400GF
|
|
|
Steady state voltage adjustment rate (%):≤± 1
|
|
||||
|
Generator power:400kW/500kVA
|
|
|
Voltage fluctuation rate (%):≤ ± 0.5
|
|
||||
|
Power factor:COSΦ = 0.8 (lagging)
|
|
|
Transient voltage adjustment rate (%):＋20 ～－15
|
|
||||
|
Output voltage:400V/230V
|
|
|
Voltage stabilization time (s):≤1
|
|
||||
|
Generator set current:720A
|
|
|
Steady state frequency adjustment rate (%):≤ ± 1
|
|
||||
|
Rated frequency:50Hz
|
|
|
Frequency fluctuation rate (%):≤ ± 0.5
|
|
||||
|
Rated speed:1500rpm
|
|
|
Transient frequency adjustment rate (%):+ 10 ~ -7
|
|
||||
|
Fuel grade:(standard) 0 # light diesel (normal temperature)
|
|
|
Frequency stabilization time (S):≤3
|
|
||||
|
Diesel generator size:3650*1540*1920 （L*W*H mm）
|
|
|
Diesel generator fuel consumption (100% load):210g/kW·h
|
|
||||
|
Diesel generator weight:4200kg
|
|
|
Diesel generator volume(LP7m):95dB（A）
|
|
||||
|
Technical parameters of diesel engine
|
|
|
|
|
||||
|
Diesel engines brand：Weichai Boduan diesel engine
|
|
|
Cooling method: Closed water-cooling
|
|
||||
|
Diesel engines model: WP13D490E310
|
|
|
Oil supply method: direct injection
|
|
||||
|
Engine cylinder number: 6 / L Type
|
|
|
Speed regulation method: Mechanical
|
|
||||
|
Bore stroke: 150*150 mm
|
|
|
Intake method: Natural inhalation
|
|
||||
|
Compression ratio: 15：1
|
|
|
Overload capacity: 110%
|
|
||||
|
Start method：DC 24V Electric start
|
|
|
Diesel engines Speed: 1500rpm
|
|
||||
|
Technical parameters of generator
|
|
|
|
|
||||
|
Generator brand：Huaquan Brushless Generator
|
|
|
Protection level：IP22
|
|
||||
|
Generator Model：HQF-400
|
|
|
Wiring mode：Three-phase four-wire, Y-connection
|
|
||||
|
Generator power: 400kW/500kVA
|
|
|
Adjustment method: AVR (Automatic Voltage Regulator)
|
|
||||
|
Rated voltage: 400V / 230V
|
|
|
Output frequency: 50Hz
|
|
||||
|
Insulation class: H class
|
|
|
Output factor: COSΦ = 0.8 (lag)
|
|
||||
|
Genset standard features
|
|
|
|
|
||||
|
1)、Direct injection internal combustion engine(Diesel)；
|
|
|
|
|
||||
|
2)、AC synchronous generator（Single Bearing）；
|
|
|
|
|
||||
|
3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；
|
|
|
|
|
||||
|
4)、Generation output air switch、Standard control panel；
|
|
|
|
|
||||
|
5)、Steel common base with shock absorber；
|
|
|
|
|
||||
|
6)、Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；
|
|
|
|
|
||||
|
7)、starter battery and connecting cables；
|
|
|
|
|
||||
|
8)、Industrial 9dB muffler and accessories；
|
|
|
|
|
||||
|
9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；
|
|
|
|
|
||||
|
Optional accessories（Extra charged）
|
|
|
|
|
||||
|
1)、Engine oil、diesel、water jacket、Anti-condensation heater
|
|
|
|
|
||||
|
2)、Battery floating charger
|
|
|
|
|
||||
|
3)、Self-protection unit/self-starting control panel
|
|
|
|
|
||||
|
4)、Tree-remote control panel
|
|
|
|
|
||||
|
5)、ATS AUTO-loaded transferring screen
|
|
|
|
|
||||
|
6)、Daily fuel tank、Integral fuel tank
|
|
|
|
|
||||
|
7)、Waterproof type(Cabinet)
|
|
|
|
|
||||
|
8)、Mobile trailer(Drip proof)
|
|
|
|
|
||||
|
9)、Mobile trailer(Silent type)
|
|
|
|
|
||||
|
|
|
|
|
|
||||
