china 4-12m multi function fiberglass double sided Insulated telescopic ladder for electric construction

china 4-12m multi function fiberglass double sided Insulated telescopic ladder for electric construction

FOB Reference Price: Get Latest Price

≥2 Pieces

US $300

≥50 Pieces

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: all place

Design Style:: Industrial

Weight Capacity:: 150kg

Place of Origin:: Hubei, China

Brand Name:: HZ

Model Number:: L01

Product name:: Insulated telescopic ladder

Color:: Yellow

Max load:: 150kgs/330lb

Packing:: Brown Box

Usage:: Power Industry

Thickness:: 3.0mm

Withstand voltage rating:: 220V

Materail:: FRP

Height:: 2.5-12m

Keywords:: Telescopic Extension Ladder

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Project Solution Capability:: graphic design, Others

Application:: all place

Design Style:: Industrial

Weight Capacity:: 150kg

Place of Origin:: Hubei, China

Brand Name:: HZ

Model Number:: L01

Product name:: Insulated telescopic ladder

Color:: Yellow

Max load:: 150kgs/330lb

Packing:: Brown Box

Usage:: Power Industry

Thickness:: 3.0mm

Withstand voltage rating:: 220V

Materail:: FRP

Height:: 2.5-12m

Keywords:: Telescopic Extension Ladder

Product Overview

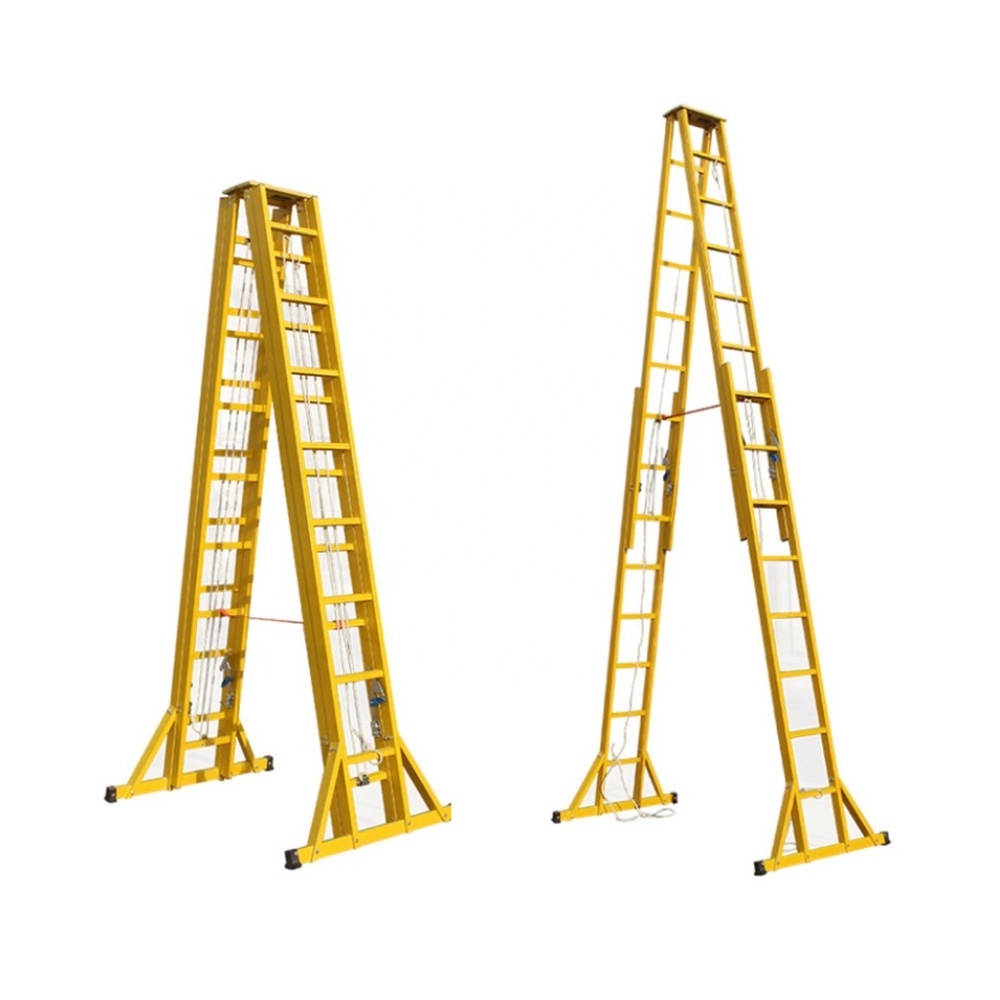

Insulated telescopic ladder

Insulated ladders are divided into insulated single ladders, insulated soft ladders, insulated bamboo ladders (fishing pole ladders), insulated joint ladders, insulated single straight ladders, insulated combined ladders, insulated herringbone ladders, insulated lift ladders (insulated herringbone single lifts, Insulated telescopic ladder, the bureau is also regarded as telescopic herringbone ladder), insulated stool, insulated step stool, insulated high and low stool, insulated lifting platform, fully insulated scaffolding, etc.

FEATURES AT A GLANCE

Features:

150Kg Load Rating

Safety yellow fibreglass stiles and rungs Super strong, durable box rails Corrosion and weather resistant No water absorption Low maintenance Specially designed non-slip rungs Non-Slip corrosion-resistant polyurethane feet

PRODUCT SPECIFICATIONS

Max length	Min length	Footprint spacing	Width	Weight
4.0m	2.5m	300-400mm	35mm	28kg
5.0m	3.0m	300-400mm	35mm	51kg
6.0m	3.5m	300-400mm	35mm	60kg
7.0m	4.3m	300-400mm	35mm	66kg
8.0m	5.0m	300-400mm	35mm	77kg
9.0m	5.5m	300-400mm	35mm	100kg
10.0	6.0m	300-400mm	35mm	106kg

Successful Project

SIMILAR PRODUCTS

insulated joint ladders 1.5-3m

insulated A-shaped ladders 1.5-6m

Insulated bamboo ladders (fishing pole
ladders) 2.2-4m

Insulated telescopic ladder 4-12m

Insulated single telescopic ladder 4-12m

insulated single straight ladders 1.5-6m

Name	Insulated single straight ladders	Insulated telescopic ladder	Insulated single telescopic ladder	Insulated bamboo ladders	insulated A-shaped ladders 1.5-6m	insulated joint ladders
Loading Capacity	≤ 150kg	≤ 150kg	≤ 150kg	≤ 150kg	≤ 150kg	≤ 150kg
Height	≤ 6m	≤ 12m	≤ 12m	≤ 4m	≤ 6m	≤ 6m
Thickness	3mm	3mm	3mm	3mm	3mm	3mm
Remark			with hooks			with joint

FAQ

Please read the safety instructions
1. When working with a ladder, please choose a PAL ladder with appropriate length and endurance.
2. Please do not use the ladder after drinking, taking medicine or when you are unwell.
3. Do not erect ladders on slippery or unstable ground.
4. Do not climb the ladder in slippery shoes.
5. When using a ladder, someone should support it with both hands to avoid shaking.
6. When climbing, you should face the ladder, hold the ladder rod firmly with both hands, and keep your body at the center of the ladder rods on both sides.
7. Do not stand or sit on the top step when used as a type A ladder.
8. When using a single ladder, only one person can use it. Do not overload or use the back up and down.
9. Limbs should not be overstretched to avoid losing balance.
10. Please move the position of the ladder to meet the needs of the scope of work, do not force work on the ladder, so as to avoid danger due to unstable center of gravity.
11. Do not move the ladder when there are people on the ladder.
12. The ladder should be wiped clean after use, and the joints should be regularly lubricated.
13. Ladder should be stored in a safe and dry place.
14. Do not store other oily items on the ladder.
15. If the ladder is damaged, it should be sent to the dealer for repair, and do not handle it by yourself.
16. Note: The metal ladder is conductive, and it must not be erected on the ground in contact with the power source.
