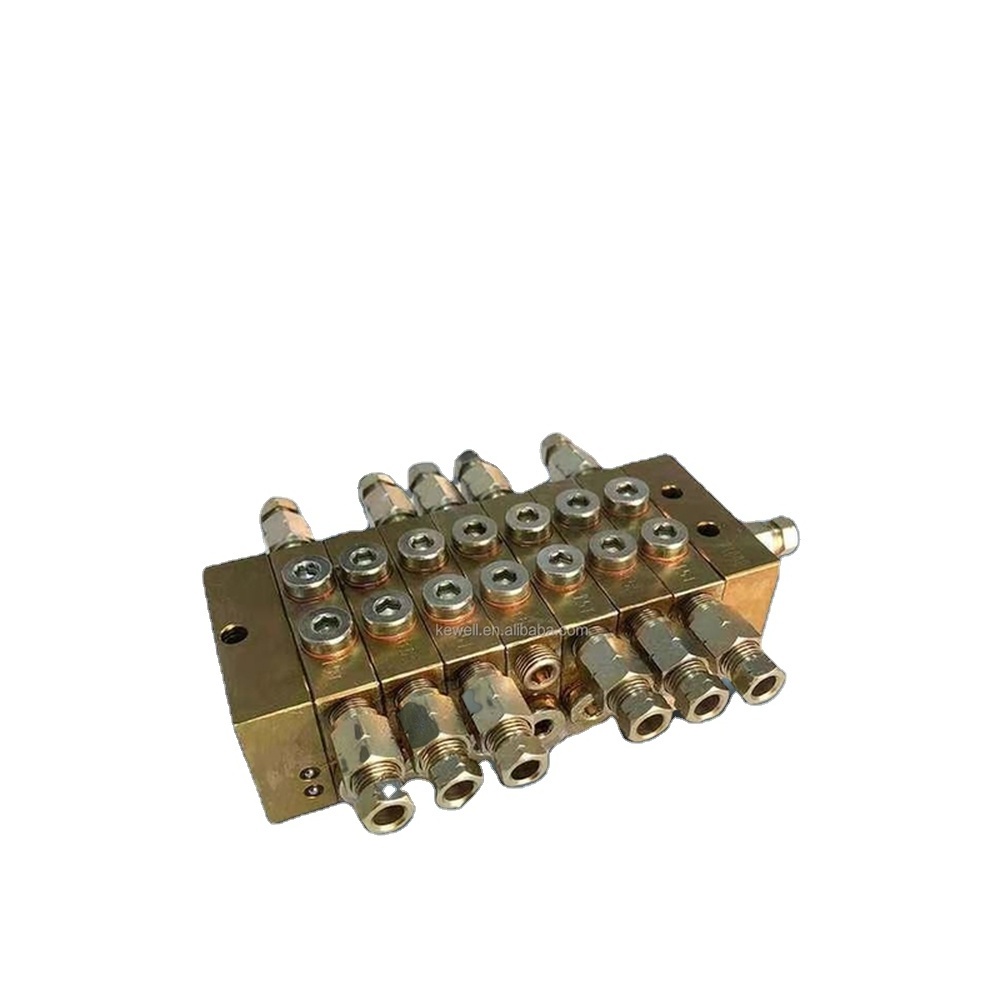

DS Modular Oil Dispenser Block Device Progressive Lobe Metering Grease Distributor for Excavator Machine Lubrication

DS Modular Oil Dispenser Block Device Progressive Lobe Metering Grease Distributor for Excavator Machine Lubrication

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: /

Model Number:: P1000/2000/3000/MVB

Place of Origin:: Zhejiang, China

Structure:: Progressive grease distributor

Outlet Size:: 6MM/8MM/10MM

Power:: According machine

Standard flow:: Detail check follow

Working temperature:: -20°C to +60°C

Inlet Outlet Pipe dia (mm):: 6mm/8mm/10mm

Max Presssure Mpa:: 25-30MPa

Material:: Steel

Use media:: (NLGI)#000,#00,#0,#1,#2

Type:: Progressive distributor

OEM:: customized

Color:: Silver store ;Black customized

Advance:: Easy to monitor, configurable cycle indicator rod

Quick Details

Application:: Automotive Industry, Developing World Water Solutions, Drinking water treatment, HVAC OEM, Industrial Boilers, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Mining industry

Pressure:: 25-30MPa

Voltage:: 12VDC/ 24VDC/110VDC/220VAC/ 380VAC

Brand Name:: /

Model Number:: P1000/2000/3000/MVB

Place of Origin:: Zhejiang, China

Structure:: Progressive grease distributor

Outlet Size:: 6MM/8MM/10MM

Power:: According machine

Standard flow:: Detail check follow

Working temperature:: -20°C to +60°C

Inlet Outlet Pipe dia (mm):: 6mm/8mm/10mm

Max Presssure Mpa:: 25-30MPa

Material:: Steel

Use media:: (NLGI)#000,#00,#0,#1,#2

Type:: Progressive distributor

OEM:: customized

Color:: Silver store ;Black customized

Advance:: Easy to monitor, configurable cycle indicator rod

SUPPLY OEM ODM SERVICE PROFESSIONAL MANUFACTURER

Progressive Divider Valves DS1/DS2/DS3

DS1/DS2/DS3 series progressive grease distributor is an advanced design and reasonable structural oil distributor; Can be used in high pressure and wide temperature change conditions. It can be combined with electric and pneumatic pumps to form a single line lubrication system. It is used as a female distributor for various large machine tools and port of equipment , or for large single-line lubrication systems.
A standard set of dispensers consists of a "first chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication
points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the
working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil
outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.

DSC Progressive Divider Valves DSC Progressive Divider Valves

DSC is progressive dividers is generally composed of 3-10 working valve pieces, its head and tail valve pieces are working valve pieces. There are 5 displacement specifications for the working valve disc, and different displacement specifications can be. selected for combination. The distributor valve disc has two side outlet structure, which can be changed to one side outlet by merging, and the displacement is superimposed. The distributor valve disc is sealed with O-ring, the whole has good sealing, stable and reliable oil.

DL Type Oil Injector DL Type Oil Injector

DL3 injectors are used in unloading lubrication systems to form a pressurized volumetric lubrication system. It has
the advantages of high oil injection pressure at the lubrication point, adjustable individual displacement, strong resistance
to oil return at the oil outlet, and simple system pipeline layout. And can be used in thin oil or grease systems.
With a suitable oil pump, the number of lubrication points in the system ranges from a few points to several hundred
points. It is suitable for all kinds of equipment centralized lubrication occasions.

DL3 type oil injector is reasonably designed, and its internal structure is plunger type.It can accurately lubricate each lubricating point, and the oil output is stable and reliable. The displacement of each stroke is continuously adjustable, and the displacement of each stroke can be adjusted without stopping the system. The lubricating points can be quickly set without redesigning the lubricating system.
The DL type oil injector is a pressurized oil outlet, which stores oil when the system is unloaded.
DL oil injector is sealed with aromatic rubber, which is applicable to thousands of high temperature environments (up to 176 ° C).
It is widely used in thousands of working conditions and various mechanical equipment.

DSV Progressive Grease Distributor

The DSV series progressive distributor is designed for small-size progressive lubrication systems. They are a cost efficient
solution for supplying multiple lubrication points with relatively small volumes of oil and grease. The series can be used with machine tools, processing machinery, presses, textile, printing and packaging machinery.
1 Oil Outlet :
Standard Flow : 0.17ml
2 Distribution principle
The plunger sleeve is connected through the oil hole to establish pressure. As long as there is pressure to allow the lubricant to enter the oil mouth, the distributor will run continuously in a progressive manner and fill with a constant displacement.
3 Alarm
Once the supplied pressure lubricant stops, all of the plungers in the dispenser will also stop moving. Therefore, by operating a specific indicator to observe the movement of an oil discharge plunger, the operation of the entire distributor can be monitored.
In the event of a blockage, an alarm can be issued.
4 Oil Outlet
The plunger which closest to the oil inlet ,discharges the lubricant oil first from the farthest oil outlet , and the other
plungers in the valve body discharge the quantitative lubricant through the next oil outlet.

DSF Progressive Divider Valves

DSF type progressive distributor is a small displacement plate distributor, which is composed of a first piece installation valve plate and several working valve plates. Generally, a group of DSF type distributors has 3-10 working valve plates, and the valve plates have four displacement specifications. Different displacement specifications can be selected for combination. The working valve plate of the distributor is a structure of oil outlet on both sides, which can be changed into a single oil outlet by merging, and the displacement is superposed. O-ring seal is adopted between the distributor working valve plates, which has good sealing performance and stable and reliable oil delivery.

DSA Progressive Divider Valves

The DSA type progressive distributor consists of 3-10 working valve plates, with both the head and tail valve plates being working valve plates, and mounting brackets installed on the head and tail valve plates.

The DSA type distributor has four displacement specifications, and users can choose different displacement specifications for combination. Each displacement specification is marked according to the actual displacement of the valve disc oil outlet. The distributor valve plates are sealed with O-ring seals, which have good overall sealing performance and stable and reliable oil output.

DDV Double Line Distributor DDV Double Line Distributor

DDV double line distributor has two oil inlets, which distribute lubricant quantitatively to each lubrication point through
alternate oil supply, and is applicable to double line centralized lubrication system. The distributor is easy to install and
maintain, and has three rated displacement options. The distributor outlet can be equipped with an indicator rod, which can be adjusted to adjust the oil output, and can be used to judge whether the distributor works normally by observing the indicator rod.
Technical parameter
Rated working pressure: 40MPa
Rated displacement: 0. 5ml/cyc, 1. 5ml/cyc, 3. 0ml/cyc
Quantity of oil outlet :1-8
Valve body material: carbon steel/stainless steel
Oil inlet thread specification: G3/8
Oil outlet thread specification: G1/4
Operating ambient temperature: - 20 ° C - 80 ° C
Lubricant range: grease NLGI # 000 - # 3

Progressive Divider Valves DMA DMB

The DMA DMB progressive distributor is made up of a first piece, a tail piece and some working pieces. The oil is supplied to the lubricating points by point by continuous action of the plunger in the work piece. Each work piece has 2 outlets, usually one distributor has 3-10 work pieces.
The working piece is modular design. The work piece is made up of a base block and a working valve block. It is versatile and easy to remove and maintain. It is suitable for high pressure and wide temperature changing conditions. The oil outlet is stable and reliable. The outlet can be equipped with a circular indicator to monitor the distributor's working state.
Selection rules of DMA DMB distributor:
1. According to the position of the oil inlet, mark the displacement code of each work piece in sequence according to the order from top to bottom.
2.The work piece specification code T indicates that the working piece is the oil outlet on both sides. S indicates that the
working piece is a unilateral outlet, and the suffix plus L and R indicate the direction of the oil outlet.
3.Users need to change the diameter of inlet and outlet tubing, please specify when ordering. See the overall dimension drawing for the threads of each distributor body.
4.the position of the circular indicator should be marked on the corresponding work piece. The suffix plus L and R indicate the direction of the indicator.
5. If you need to merge the distributor outlet, you can install the adapter on the work piece, and use CF to indicate the details.

Under any circumstances, the user shall not block the distributor outlet, so as not to overpressure the distributor !!!!

DU/MDU -Block Distributors

DU/MDU type progressive distributor is an aluminum alloy integral structure with compact valve body, which is suitable for working conditions of medium and low pressure, and is widely used in forging machine tools, engineering machinery and other industrial equipment. The DU distributor has two types of standard valve bodies. The number of standard outlets is 8 and 12.
The displacement is 0.3ml/cyc. The number of oil outlets can be changed by changing the number of pistons and merging the outlets.
The DU distributor can provide 2, 4, 6, 8, 10 and 12 oil outlets. The DU type distributor can be combined with the base
distributor to form a MDU type distributor. The base distributor provides two to four oil outlets with a displacement of
1.5ml/cyc.

JIAXING KEWELL INTELLIGENT EQUIPMENT CO.,LTD

We have two factory located in Zhejiang and Jiangsu Province China Which have over 2000 squares for factory land Welcome visit us. We offers every type of lubrication system, ranging from manual models to complex systems, fully automated and centralized that run on oil and grease. Our products are used in all industrial systems, vehicular systems and several other fields such as mining, railway, machine tools, paper industries, wind energy and marine equipment. The lubrication systems at our disposal are distinguished as:

Progressive Lubrication
It is the most reliable and comprehensive system offered by us to measure grease and oil with actual control on operation. The 3 types of progressive metering can be combined with automatic or manual pumps or powered directly from a single point in the system. Suitable for industrial machinery and the vehicle sector.

Single Line Lubrication System
The single line lubrication system is the most widely spread lubrication system in the general engineering field.
Small quantities of oil or fluid grease are fed intermittently in the desired cycle time of the lubrication point. Supply to
numerous lubrication points ,Flexible construction , Exact dosing .Point-target type of spraying possible, e.g. chain bolt lubrication .
Dual-line Lubrication System
Dual line lubrication systems can be used for large systems with dispersed lubrication points that require different amounts of lubrication. Using two main lines Alternating branch lines along the main line are connected to a two-line metering unit to supply large quantities of lubricant to the lubrication points.
Main products : Automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump, progressive distributor, quantitative distributor, pipe connector, metering unit, high pressure nylon hose, high pressure pipe etc.
These products are widely used in robot, cutting machine tools, forging machine, plastic machine, CNC machine tools, construction machinery, vehicles, metallurgical machinery, textile machinery, printing machinery, woodworking machinery, chemical machinery, mining machinery and other industrial machinery.
Our customer : We mainly exported to Russia ,Brazil ,Australia, Thailand,South korea and so on.
Our team : If you interesting in our lubrication products , please let us know. We will be pleased to give you a quotation according your detailed specifications in short time . If you have technical help ,Our expert engineering team also will ready to serve you for consultation and feedback . We can provide you professional technical info about products in time.
Products control : Each product is carefully made with strictly controller and testing , it will make you satisfied. We trust that only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation.
Our attitude : In order to build long-term friendly relationship. We all significantly promise: same excellent, better selling price; exact selling price, better quality.
