Quick Details
-
Working area:
-
1300x2500mm, 4*8 feet
-
4 axis rotary chuck device:
-
150mm 200mm 300mm diameter rotary, double chucks paw claw
-
Control system:
-
RichAuto DSP, Mach3, Weihong with handheld
-
Spindle:
-
3.2kw 4.5kw 5.5kw, 6kw HQD Italy HSD water/air cooled spindle
-
Transmission:
-
Taiwan HIWIN 25mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine 450B motor, MA860H driver, HBS758 or 2206 servo
-
Table:
-
Vacuum adsorption table with T slot
-
Popular:
-
Uzbekistan, Europe countrys, India
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
artcam 3 d wood 4 axis cnc machine price india with rotary device
-
Function advantage:
-
4 axis rotary cnc machine router
-
Working area:
-
1300x2500mm, 4*8 feet
-
4 axis rotary chuck device:
-
150mm 200mm 300mm diameter rotary, double chucks paw claw
-
Control system:
-
RichAuto DSP, Mach3, Weihong with handheld
-
Spindle:
-
3.2kw 4.5kw 5.5kw, 6kw HQD Italy HSD water/air cooled spindle
-
Transmission:
-
Taiwan HIWIN 25mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine 450B motor, MA860H driver, HBS758 or 2206 servo
-
Table:
-
Vacuum adsorption table with T slot
-
Popular:
-
Uzbekistan, Europe countrys, India
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE

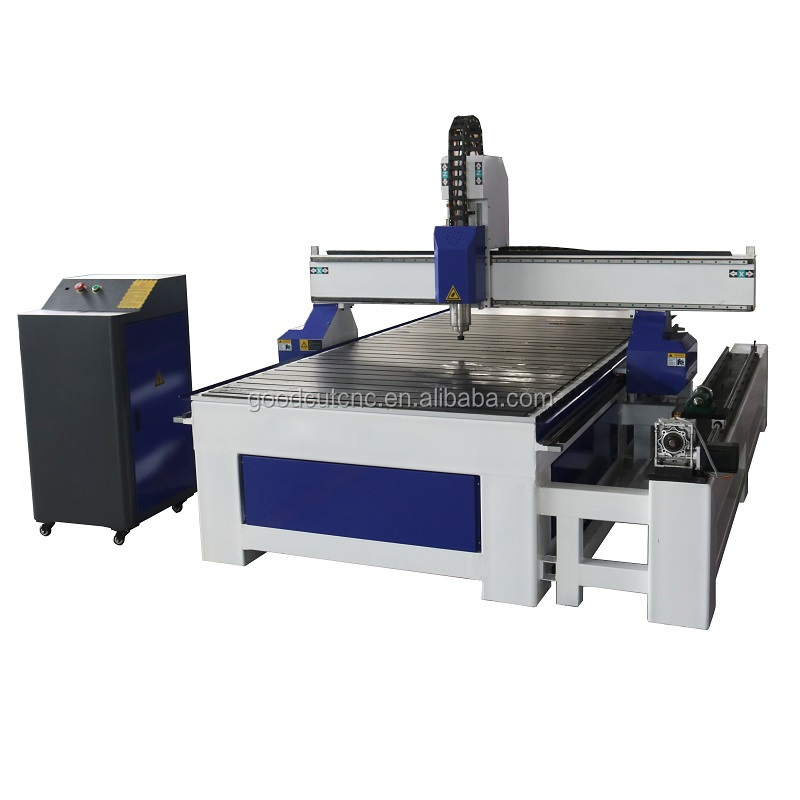

Hot Selling artcam 3 d wood 4 axis cnc machine price india with rotary device
Feature:
1. It is mainly used for engraving the wood plate and round shape.
2. High-speed machining: the curve and straight speed is the same, the idle speed can reach 30m/min, the cutting speed can reach 10m/min.
3. The weight loading and redundancy are high, the working life is long: three axes adopt the imported line square guide rail with the high precision, Axis Y adopts the double engine driving, the rigidity of machine is strong, the potency dimension is powerful, the turn is balanced.
4. Compatiility of software: it may be compatible with all kinds of software, such as JINGDIAO, Type3, Artcam, Castmate, CAD and CAM desigh software etc.
5. The convenience of control: it cn choose the advanced DSP control system of USB connection, the machine is completely offline working, not occupying any computer resources, and it can achieve the DSP on-off antomatism, achieve high-speed machining, the curve and straight line reach synchronization, the curve is more perfect.
|
Model |
GC1325R 4 axis cnc router |
||||
|
X,Y,Z Working Area |
1300*2500*200mm |
||||
|
Z axis travel |
200mm-700mm (according to your requests) |
||||
|
Table Surface |
Vacuum and T-slot working table with 6 zones |
||||
|
Frame |
Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
||||
|
X, Y Structure |
Helical Gear and rack transmission, Taiwan HIWIN Linear Rail 25# |
||||
|
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail 25# |
||||
|
Spindle Power |
4.5kw Italy HSD Air cooling spindle (optional:China top brand Water cooling spindle) |
||||
|
Spindle Speed |
0-24000RPM |
||||
|
Drive Motors |
Leadshine stepper servo motor driver |
||||
|
Working Voltage |
380V, 3Ph, 50Hz |
||||
|
Command Language |
G Code |
||||
|
Operating System |
Taiwan SYNTEC 6MB control system |
||||
|
Lubrication system |
Automatic lubrication system |
||||
|
Tool sensor |
Automatic tool sensor calibration |
||||
|
Inverter |
11kw Taiwan Delta inverter |
||||
| Vacuum pump | 5.5kw air type vacuum pump (380V, 3Ph, 50Hz) | ||||
| Dust collector | 1.5kw new type double pockets dust collector (380V, 3Ph, 50Hz) | ||||
| Rotary | 200mm diameter with 2400mm working length | ||||
PS:All the working area and specifications can be customized according to your requests.
4th axis cnc router Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
4th axis cnc router Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
- Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
- Relief sculpture and 3D engraving.
- Cylindrical object.
