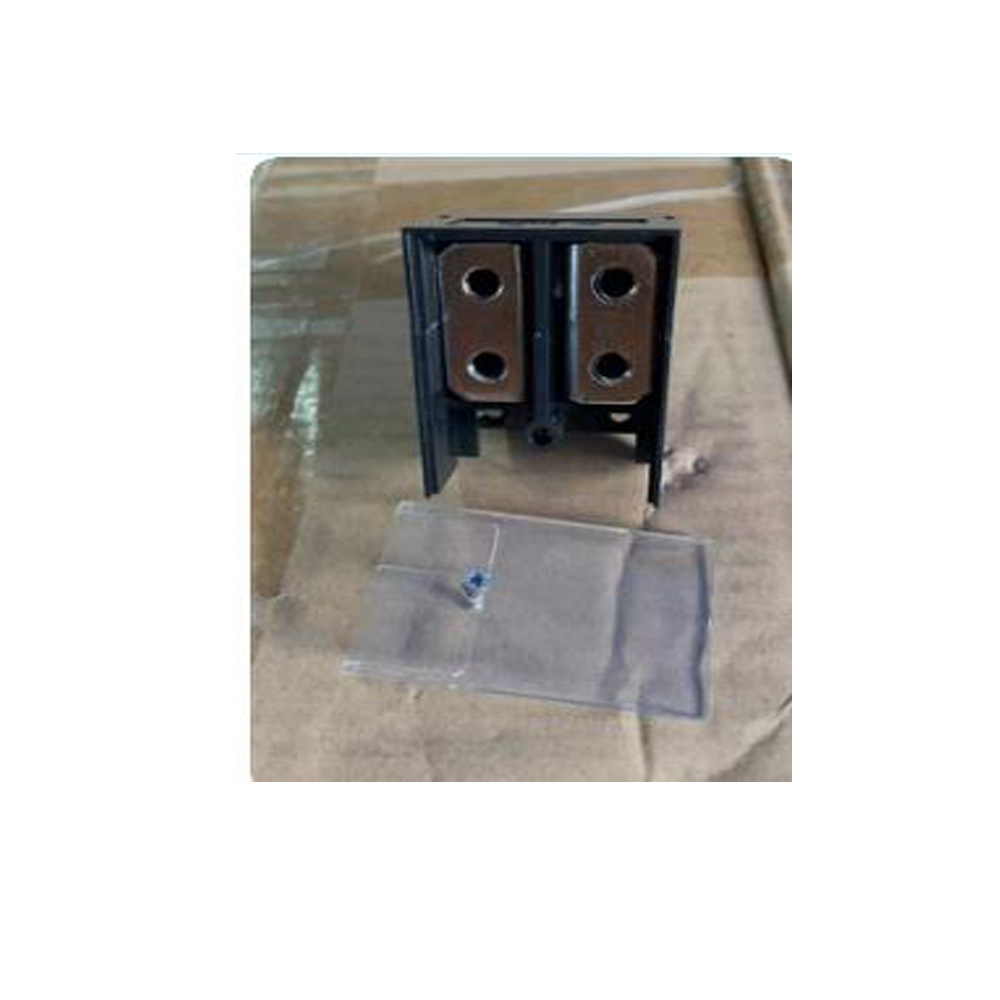

power input connector

2.1 Operating environment

u Operating temperature:-40℃~+70℃;

u Relative humidity:5%-95%;

u Atmosphere pressure:70kPa~106kPa

2.2 Storage environment

u Storage temperature:-40℃~+85℃;

u Relative humidity:5%-95%;

u Atmosphere pressure:70kPa~106kPa

u Storage time limit:12months

2.3 Reference standards

u GB4943.2001/IEC60950:1999                      Safety of information technology equipment

u GB/T18802.21-2004/IEC61643-21:2000    Low voltage surge protective device, part 21, SPD for telecommunication and signal networks-performance requirements and tests.

u YD/T1542-2006                                               Technical requirements and test methods of SPDs for signal networks

3. Dimensions

Profile dimensions:482.6mm×228mm×43.6mm

Installation dimensions:465 mm×31.8mm
