2.5mm Professional HVLP Spray Gun HVLP Gravity Feed SPRAY GUN Kit With Regulator Paint Primer Metal Flake 1L DIY Spray Paint Kit

HVLP(High Volume Low Pressure) Gravity Feed Spray Gun with 1.4mm 1.7mm 2.5mm Fluid Tips Nozzles, 1000cc Aluminum Cup Auto Paint Air Spray Gun Kit Gravity Feed Car Primer For Auto Paint, Primer, Clear/Top Coat & Touch-Up

Application:

• Ideal for Spraying Base Coats,Clear Coats and other High Viscosity Coatings.

Such as extreme high build or polyester primers, thick enamels, latex paints, chip guard, metal flakes, gel coats, liquid mask, etc.

Specification:

• 100% quality assurance tested, more responsive, less expensive, easier to install.
• It can provide equal atomization and particle size for various surface coatings.
• Light weight, ergonomic design and simple trigger pivot, reducing operating fatigue
• It has control knobs for full adjustment over spray pattern, fluid control and air pressure.
• Nozzle Size: 1.4mm, 1.7mm, 2.5mm (meet your different applications)
• Paint Cup Capacity : 1L (1000cc)
• Spraying Distance: about 25cm
• Compressor Required:1 HP
• Air Connection: 1/4" NPS(M)
• Operating Pressure:15-43 PSI
• Air Consumption:7-12 CFM

Material & Color:

• Material: made of high quality Aluminum & Stainless Steel.
• Color: as picture.

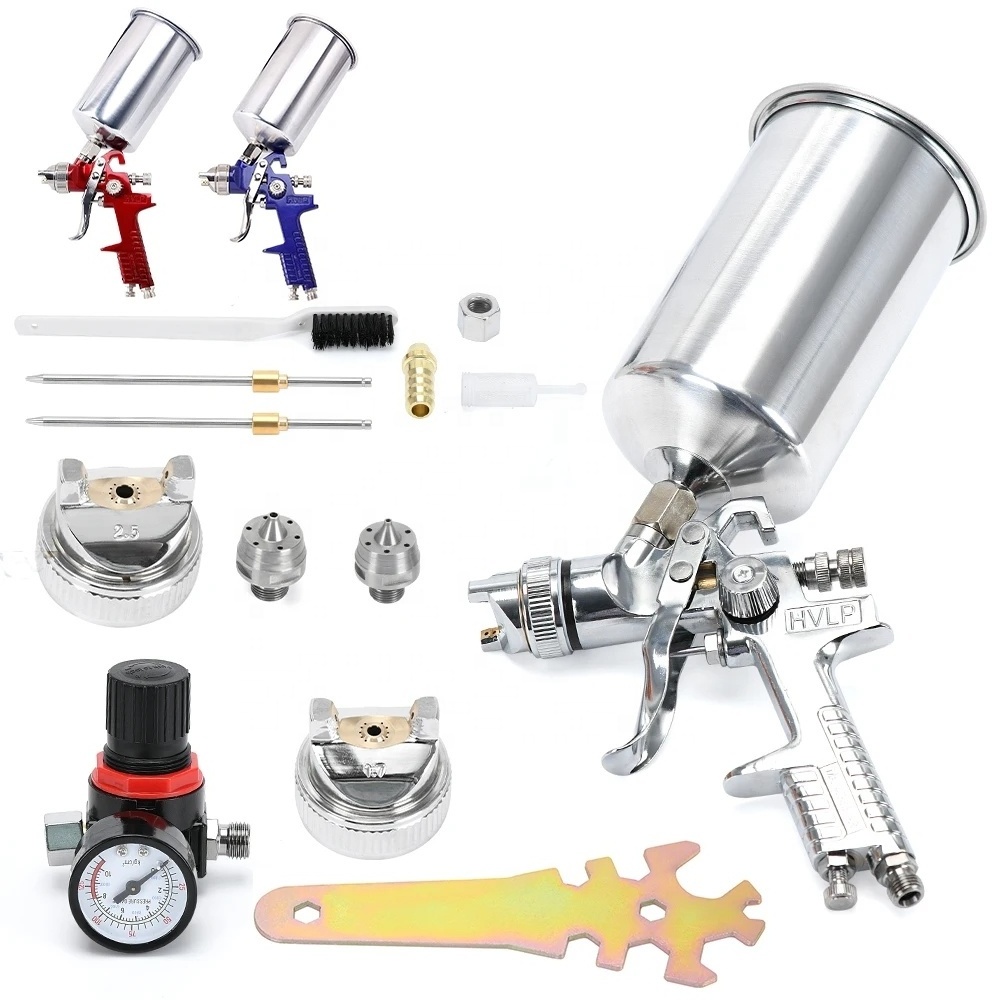

Package Included:

• 1x HVLP Spray Gun;
• 1x 1000cc Aluminum Cup;
• 1x 1.4mm Nozzle with Needle(Pre-installed to the Spray Gun);
• 1x 1.7mm Nozzle with Needle;
• 1x 2.5mm Nozzle with Needle;
• 1x Mesh Filter;
• 1x Barbed Tail;
• 1x Screw Nut;
• 1xTrue Micrometer Air Regulator with Gauge;
• 1x Brush;
• 1x Spanner Wrench;
• 1x Instruction Manual.(100% Brand New Never Used Or Installed)

Fine tuning:

By adjusting the pattern adjustment knob and the fluid adjustment knob, the desired pattern and fine atomization can be easily obtained.

Spray pattern adjustment:

Turn the spray pattern adjustment knob to the right until it is tightened to make the spray pattern round, or turn to the left to make the spray pattern elliptical.

Fluid adjustment:

Turning the fluid adjustment knob clockwise will reduce the fluid output, and turning it counterclockwise will increase the fluid output.

Note:

Provide Tracking Number With Every Order, Please Buy With Confidence!

No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.

Will come with everything you see in the picture. Please allow difference due to manual measurement.

Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

For any inquiries or special requests such as larger amount ordering please write to us.
