- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
8300*2400*4700mm
-
Weight:
-
800 KG
-
Marketing Type:
-
New Product 2023
-
Feeder hoper size:
-
3000*2200mm
-
Capacity:
-
100-150t/h
-
Motor power:
-
100kw
-
Keyword:
-
gold trommel wash plant
-
Product name:
-
gold trommel wash plant
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
-
Color:
-
Customers' Requirements
-
Function:
-
Screening\separation\sorting\sieving
-
Quality:
-
High Leavel
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
The Nile
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
8300*2400*4700mm
-
Weight:
-
800 KG
-
Marketing Type:
-
New Product 2023
-
Feeder hoper size:
-
3000*2200mm
-
Capacity:
-
100-150t/h
-
Motor power:
-
100kw
-
Keyword:
-
gold trommel wash plant
-
Product name:
-
gold trommel wash plant
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
-
Color:
-
Customers' Requirements
-
Function:
-
Screening\separation\sorting\sieving
-
Quality:
-
High Leavel
Product Description

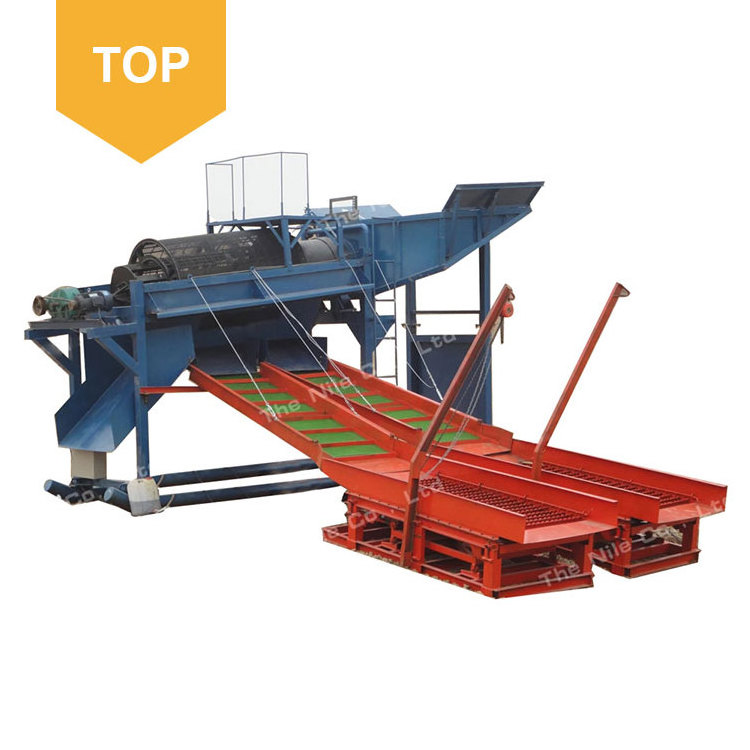

Mobile Gold Trommel
The mobile gold trommel is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa,North Korea, Tanzania, Ghana etc.
The main structure of the GTS trommel gold wash plant is a screening cylinder, which is composed of several circular meshes and also inclined with the ground; Outside is sealed by the sealing guard to prevent environmental pollution. Through variable speed deceleration system, the screening cylinder is rotated at a certain rotation speed, and the material is separated from the top to the bottom through the screening cylinder, the fine material is discharged from the lower part of the front end of the screening cylinder. The drum screen can be provided with a comb-shaped cleaning mechanism, and the relative movement of the comb-shaped cleaning mechanism and the screening cylinder can be achieved the effect of cleaning the sieve body without ant interruption during the screening process, so that the sieve and the splitting cylinder is always clear and does not affect the screening effect throughout the working process.
Technical Data
|
Model
|
Trommel Type
(mm)
|
Productivity
(t/h)
|
Motor Power
(kw)
|
Dimensions
(mm)
|
Sluice Box Size
L*W (mm)
|
|||||
|
GTS10
|
800*1500
|
5-10
|
11
|
2500*1000
|
2000*500
|
|||||
|
GTS30
|
1200*2500
|
30
|
35
|
5000*1400
|
3000*1000
|
|||||
|
GTS50
|
1500*3000
|
50
|
50
|
6500*1800
|
4500*1000
|
|||||
|
GTS100
|
1500*4500
|
100
|
100
|
8300*2200
|
6000*1000
|
|||||
|
GTS150
|
1600*4800
|
150
|
120
|
9200*2200
|
2*(6000*1000)
|
|||||
|
GTS200
|
1800*5000
|
200
|
150
|
11500*2250
|
2*(6000*1000)
|
|||||
|
Centrifugal Concentrator
|
|
|
|
|
|
|||||
|
Centrifugal Concentrator SLT 30, Capacity 5T/H
Centrifugal Concentrator SLT 40, Capacity 10T/H
Centrifugal Concentrator SLT 60,Capacity 20T/H
Centrifugal Concentrator SLT 80, Capacity 35T/H
Centrifugal Concentrator SLT 100, Capacity 75T/H
|
|
|
|
|
|
|||||
Our Advantages
Overseas Service
1.We have
engineers in Kenya , Sudan ,Uganda
, Professional installation and training skills .
2.We have
factory and warehouse in Kenya and China
, Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers
know the local condition
very well , We will supply the most suitable solution for you .
Factory and Warehouse in Kenya
Welcome to visit our factory in China and Kenya .
