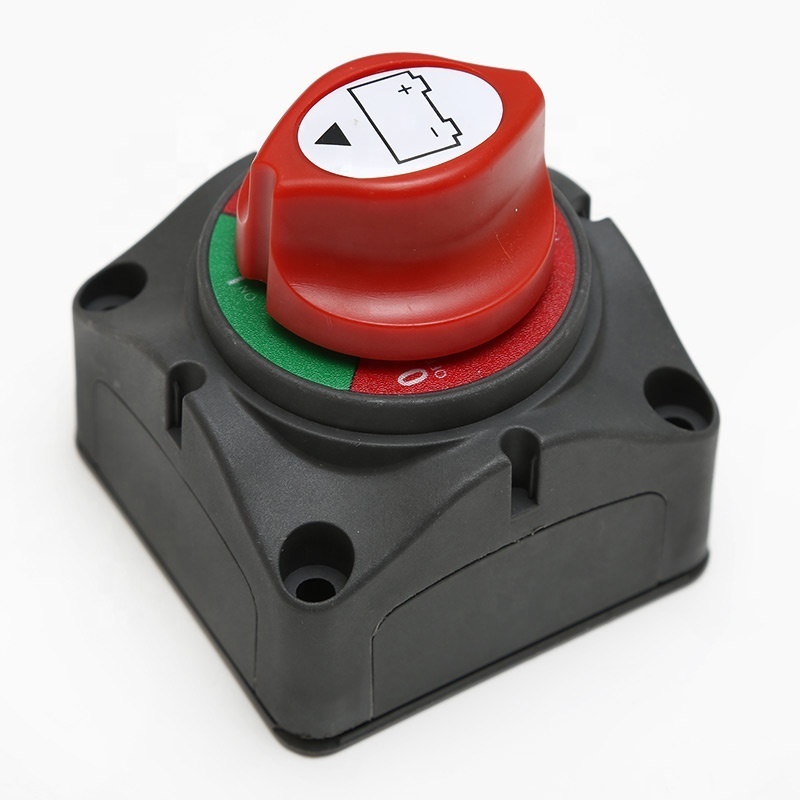

Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch for Marine Boat Caravan RV ATV Vehicle Heavy Duty

Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch for Marine Boat Caravan RV ATV Vehicle Heavy Duty

FOB Reference Price: Get Latest Price

≥100 Pieces

US $14

≥1000 Pieces

US $13.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Guangdong, China

Model Number:: Battery Disconnect Isolator Switch

Max. Current:: 600A

Product Name:: Battery Disconnect Selector Cut On/Off Rotary Isolator Switch

Rated Current:: 600 Amps DC

Rated Voltage:: 12-60V DC

Material:: Plastic + tinned copper

Stud:: M12

Switch Type:: Selector 2 Position

Operation Type:: ON-OFF

Continuous Current:: 275Amps DC

Intermittent Current:: 350Amps DC

Application:: ATV, automotive, ships, motor homes, caravans, trucks, UTV, etc.

Quick Details

Whether the smart:: Yes

Max. Voltage:: 60V DC

Place of Origin:: Guangdong, China

Brand Name:: Guangdong, China

Model Number:: Battery Disconnect Isolator Switch

Max. Current:: 600A

Product Name:: Battery Disconnect Selector Cut On/Off Rotary Isolator Switch

Rated Current:: 600 Amps DC

Rated Voltage:: 12-60V DC

Material:: Plastic + tinned copper

Stud:: M12

Switch Type:: Selector 2 Position

Operation Type:: ON-OFF

Continuous Current:: 275Amps DC

Intermittent Current:: 350Amps DC

Application:: ATV, automotive, ships, motor homes, caravans, trucks, UTV, etc.

The Description of 3 Position Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch 200 A for Marine Boat Caravan RV ATV Vehicle Heavy Duty

3 Position Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch 200 A for Marine Boat Caravan RV ATV Vehicle
Heavy Duty

•DC CIRCUIT BREAKERS

• POWER BREAKER

• MAIN BREAKER

-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices.

Durable Made for Safety Use/ Built To Prolong Battery Lifespan/ Keep You Main Battery Fully Charged/ Prevent the Start Battery from Being Run Down/ Waterproof Shockproof Withstand Harsh Weather

The Details of 3 Position Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch 200 A for Marine Boat Caravan RV ATV Vehicle Heavy Duty

Max. Current	600A
Rated Current	600 Amps DC
Rated Voltage	12-60V DC
Color	Black, Red
Material	Plastic + tinned copper
Stud	M12
Switch Type	Selector 2 Position
Operation Type	ON-OFF
Continuous Current	275Amps DC
Intermittent Current	350Amps DC
Application	ATV, automotive, ships, motor homes, caravans, trucks, UTV, etc.
Certification	ROHS

The Product Size of 3 Position Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch 200 A for Marine Boat Caravan RV ATV Vehicle Heavy Duty

Simple Operation

The Feature of 3 Position Battery Disconnect Selector Master Power Cut On/Off Rotary Isolator Switch 200 A for Marine Boat Caravan RV ATV Vehicle Heavy Duty

1. Durable Material: This battery disconnect switch is made of ABS plastic housing, tinned copper studs and nuts.Come with stainless steel mounting screws and caps to help fix the switch tightly. Removable side plates provide access for battery cables. 2. Safety Protection: Battery shut off switch can disconnects the battery safely, protect batteries from excessive drain when vehicle or boat is not in use. 4. Great Compatibility:This battery quick disconnect is used for DC 12-60V systems to isolate and secure the electrical system,and can stand alone or be locked together with other switch, simple and economical way to separate batteries. 5. Easy to use: the battery switch has a clear colour label to mark the on/off position. ON = switch on (green), OFF = switch off (red). 6. Mainly isolate and repair the electrical system to reduce power consumption; the rear cover insulates the clamps to avoid short circuits.

Why Choose Us/Our Advantages

The Senreach ignition protected manual battery isolator switch are compact, weather proof and light weight designed. The highly visible manual reset switch allows for a clear fault indication. Ignition protection and flame resistant materials makes these breakers ideal for installation in gasoline powered vehicles and engine compartments. The terminal studs are front facing for ease of installation and covered with protective caps to prevent short circuits and current jumps.

Application

Wide range of applications: Power Cut-off Switch Kit is used as a power disconnect. Safely installed on petrol boats or vehicles. Universal used not only for car, van, caravan, RV, truck, yacht, marine Boat, ATV, UTVs, automotive, automotive electronics, electrical products, ships, campers, sailing boats, travel trailers, small yachts, motorhomes, motorcycles, caravans, trucks, UTV, but also electrical equipment's switch, such as flashing light, chassis light, fog light, dome light.
