- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTE-AUTO
-
Model Number:
-
INT13-TGG
-
Product name:
-
B series metal connectors
-
Outshell Material:
-
Brass plated pearl/black chrome
-
MOQ:
-
1 Pcs
-
IP rating:
-
IP50
-
Temperature Range:
-
-50 ~ 150 Degree
-
Warranty:
-
5000 Times Push Pull
-
Sample:
-
Freely Supplied
-
Contact Plating:
-
Gold Plated Contacts
Quick Details
-
Type:
-
Push Pull Self - Latching
-
Application:
-
Audio Video
-
Gender:
-
Male and Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTE-AUTO
-
Model Number:
-
INT13-TGG
-
Product name:
-
B series metal connectors
-
Outshell Material:
-
Brass plated pearl/black chrome
-
MOQ:
-
1 Pcs
-
IP rating:
-
IP50
-
Temperature Range:
-
-50 ~ 150 Degree
-
Warranty:
-
5000 Times Push Pull
-
Sample:
-
Freely Supplied
-
Contact Plating:
-
Gold Plated Contacts
Product Description
B Series Connectors with the Following Main Features
1. Secure push-pull self-latching system design
2. Multiple key options for aligned and blind mating
3. Keying system available (alpha=0/30/45/60/80/145/155)
4. 360° screening for full EMC shielding
5. Multipole types 2 to 32 contacts
6. Supply size 00B, 0B, 1B, 2B, 3B, 4B series
7. Solder contact, PCB contacts (straight or elbow)
8. Crimp contact can be customized
9. High-density configurations for blind mating even in tight spaces
10. Available customized cable assembly solution
Product Photo & Part Number
0B Series Connectors : Plug and Socket
The 00B push pull connector is a type of miniature circular connector commonly used in electronic devices and equipment that require a secure and reliable connection between components. It consists of a male and female connector that can be easily mated and unmated by pushing and pulling the connectors.
Part Number:

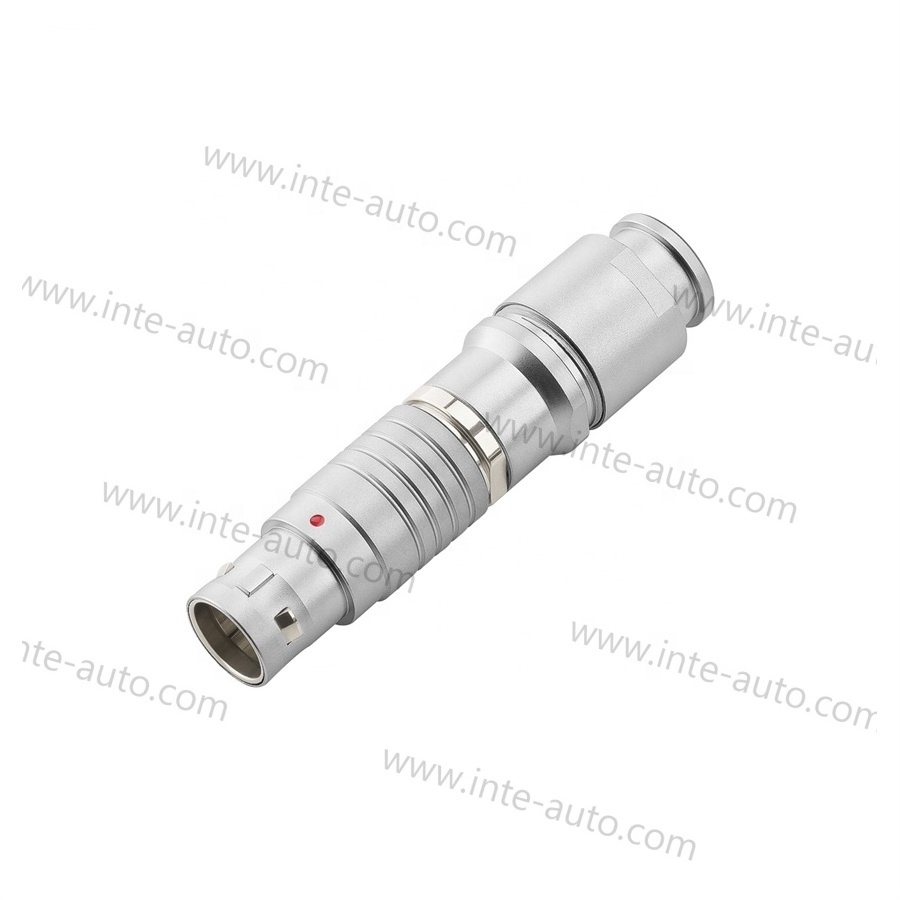

Plug: INT13-TGG.0B.303.CLAD30Z
Description:
00 3 pins straight plug, 3.0mm cable collet, 1 key (alpha=0), nut for fitting bend relief
Socket: INT13-ZGG.0B.303.CLL
Description:
00 3 pins fixed receptacle, nut fixing, 1 key (alpha=0), solder contacts
00B size available 2 3 4 5 Pins.
In a microphone application, the 00B push pull connector can be used. The connector allows for a secure and reliable connection that can be easily connected and disconnected.
When selecting 00B push pull connector for a microphone application, it's important to consider factors such as the number of contacts required, electrical and mechanical specifications.
It's also important to ensure that the connector is compatible with other brands in the microphone.
Overall, the 00B push pull connector is a versatile and reliable connector that can be used in a variety of applications,
including microphones.
Overall, the 00B push pull connector is a versatile and reliable connector that can be used in a variety of applications,
including microphones.
Technical Characteristics
|
Characteristics
|
Parameter
|
Standard
|
|
|
Endurance
|
>6000 cycles
|
IEC 60512-5 test 9a
|
|
|
Humidity
|
Up to 95% at 60°C
|
|
|
|
Temperature Range
|
-40°C， +250°C
|
|
|
|
Resistance to Vibration
|
10-2000Hz, 15g
|
IEC 60512-4 test 6d
|
|
|
Shock Resistance
|
100g, 6ms
|
IEC 60512-4 test 6c
|
|
|
Salt Spray Corrosion Test
|
>144h
|
IEC 60512-6 test 11f
|
|
|
Protection Index (mated)
|
IP50
|
IEC 60529
|
|
Certification
Name: RoHS Certificate - Plastic Connector
Name: RoHS Certificate - Plastic Connector
Name: RoHS Certificate - Metal Connector
Name: TUV Aduited
Manufacturing and Testing
Customized Cable Assembly
INTE-AUTO is a professional company that specializes in push pull connectors and cable assembly services. With 10+ years of experience and advanced equipment, we are capable of providing high-quality connectors and cable that meet the specific requirements of various industries.
Connector Assembly
INTE-AUTO's skilled technicians and engineers ensure that every connector assembly is made with precision and accuracy, delivering reliable and consistent performance. The push pull connectors can used in the various application,
including automotive, medical, and aerospace.
Production Deparment
INTE-AUTO's production department is a vital part of department, equipped with state-of-the-art machinery and staffed by experienced technicians. They utilize advanced manufacturing techniques to ensure the highest quality and efficiency in every production process.
CNC Machine in INTE-AUTO
INET-AUTO production department follows strict quality control rules to ensure that every product meets or exceeds customer expectations.
We commit to providing our customers with high-quality products and efficient services.
Production Machine in INTE-AUTO
Our skilled operators and engineers are trained to operate the CNC machines to ensure the highest level of performance and quality. We optimize machining processes and improve production efficiency, reducing lead times and costs for our customers.
Produce Line in INTE-AUTO
INTE-AUTO has 25 sets of CNC machines, we are capable of producing complex and precision parts with great efficiency.
With our advanced capabilities, we can meet the complex and diverse needs of our customers across various industries.
Product Application
Push Pull Connectors Application:
Push-pull connectors are versatile and reliable connectors that are widely used in various applications. They are designed to be easy to connect and disconnect with a simple push pull self-latching connection system, making them ideal for applications where quick and frequent connections are required.
Push-pull connectors are commonly used in medical devices, industrial sector, automation, robotics, instrumentation, aerospace industry, avionics, radar systems, and communication equipment.
With their robust construction and secure locking mechanisms, push-pull connectors are highly durable and resistant to harsh environments, including extreme temperatures, moisture, and vibration.
This makes them ideal for use in challenging applications, such as military and defense, transportation, and oil and gas.
INTE-AUTO Brief Introduction and Advantage
About INTE-AUTO
INTE-AUTO is a leading supplier of push-pull connectors for a wide range of applications, including medical, industrial,
aerospace, and more.
aerospace, and more.
We offer a wide variety of push-pull connectors, including B series IP50 connectors, K series IP68 connectors, P series plastic connectors, S series half-moon connectors, Core series precision half-shell code connectors, hybrid fluidic connector, hybrid coaxial connectors, available in a range of sizes, pins, material, and configurations.
Our push-pull connectors are manufactured to the highest standards, ensuring exceptional performance, reliability, and durability.
We use high-quality materials and advanced production techniques to produce connectors that are resistant to harsh environments, such as moisture, dust, and extreme temperatures.
At INTE-AUTO, we are committed to providing our customers with the best possible service and support. Our team of experts is available to help you choose the right connector for your application and answer any questions you may have.
INTE-AUTO Advantage
1. Years of Experience:
With over 10+ years of experience, INTE-AUTO has a deep understanding of customer needs and market trends.
2. Free Sample:
INTE-AUTO is committed to providing high-quality samples with free cost to support your prototype.
3.
Competitive Pricing:
INTE-AUTO offers competitive pricing without compromising on quality or service
4.
Customization Capabilities:
INTE-AUTO can customize
cable assemble and
OEM/ODM
to meet specific customer requirements, offering flexibility and versatility.
5.
Strong R&D Capabilities:
INTE-AUTO has a strong R&D team that continuously innovates and develops new products to meet evolving customer needs.
6.
Fast Lead Times:
INTE-AUTO strives to deliver products within 7 - 10 workdays
if the QTY is under 200 PCS. We have 1000 + inventory items,
efficiently to meet customer deadlines and requirements.
7.
Strong Partnerships:
INTE-AUTO has strong partnerships with our customers. O/A payment terms can be valid if we have
stable business relationship.
8. Flexible payment way: T/T, PayPal, Westunion, Credit card.
8. Flexible payment way: T/T, PayPal, Westunion, Credit card.
9.
Responsive Customer Service:
You will get our reply within 8 hours. INTE-AUTO's customer service team is responsive, knowledgeable, and committed to providing exceptional support.
10.
Advanced Manufacturing Technology
: INTE-AUTO uses advanced manufacturing technology to ensure efficient production and consistent quality.
FAQ
1. What kind of products does INTE-AUTO offer as a push-pull connector supplier?
INTE-AUTO provides a wide range of push-pull connectors, including circular connectors, cable assemblies, waterproof connectors, hybrid connectors and more.
2.
What industries does INTE-AUTO Push Pull Connectors serve?
INTE-AUTO serves a diverse range of industries, such as test device, robot, measurement, defense, medical, transportation, camera, microphone and telecommunications.
3. Does INTE-AUTO offer custom push-pull connector solutions?
Yes, INTE-AUTO can provide customized push-pull connector solutions to meet specific customer requirements. Our team of experienced engineers can work with customers to design and develop custom connectors that meet their unique needs.
4. What are the advantages of using push-pull connectors?
Push-pull connectors are easy to use and provide a secure and reliable connection. They are also resistant to vibration and environmental factors such as moisture and dust.
5. Does INTE-AUTO provide technical support?
Yes, INTE-AUTO has a team of experienced engineers, who can provide technical support and guidance to customers. We can assist with connector selection, design, installation, and troubleshooting.
6. What is the quality of INTE-AUTO's push-pull connectors?
INTE-AUTO's push-pull connectors are made of high-quality brass material, they are designed and manufactured to meet stringent quality standards. Our connectors undergo rigorous testing and inspection to ensure their reliability and durability.
7. What is the warranty on INTE-AUTO's push-pull connectors?
INTE-AUTO offers a 5000 mating times warranty on our metal push-pull connectors to ensure customer satisfaction. 1000 mating times warranty on plastic type.
8. What is the pricing of INTE-AUTO's push-pull connectors?
INTE-AUTO offers m
oderate
pricing for our push-pull connectors, and our prices vary depending on the product model and order quantity. Customers can contact us for a quote or for more information on pricing.
