Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
CU/PVC 450/750V
-
Rated voltage:
-
450/750V
-
Product name:
-
Pvc House Wiring Electrical Cable
-
Certification:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Standard:
-
IEC NEMA GB JIS
-
Packing:
-
100m/roll
-
Keyword:
-
Copper Electrical Cable
Quick Details
-
Application:
-
Overhead
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
CU/PVC 450/750V
-
Rated voltage:
-
450/750V
-
Product name:
-
Pvc House Wiring Electrical Cable
-
Certification:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Standard:
-
IEC NEMA GB JIS
-
Packing:
-
100m/roll
-
Keyword:
-
Copper Electrical Cable
PVC Insulated and Sheathed Wire
1. Application
CE Certificate Copper core PVC insulation power wire is fit for ac rated voltage 450/750V
2. Working temperature
BV-105 model not more than 105 C, others not more than 75C installation temperature not lower than 0C.
3.Specification size and technological data
|
Type |
Name |
Laying place and requirement |
Crated voltage |
Nominal Section (mm 2 |
|
227IEC01(BV) |
Copper conductor PVC insulated wires
Aluminum conductor PVC insulated wires |
Fixed laid indoors Conduit etc. |
450/750
300/500
450/750 |
1.5...185
|
|
227IEC05 (BV) |
0.5...1
|
|||
|
BLV |
2.5...185
|
|||
|
227IEC07(BV-90) |
Heat resistant copper conductor PVC insulated wire at 90 0 C |
Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. |
300/500 |
0.5...2.5 |
|
BVR |
Copper conductor PVC insulated flexible cable |
Be for laying permanent place where flexible required. |
450/750 |
2.5...150 |
|
BLVV |
Aluminum conductor PVC insulated PVC sheathed round wires |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
|
|
|
BVVB |

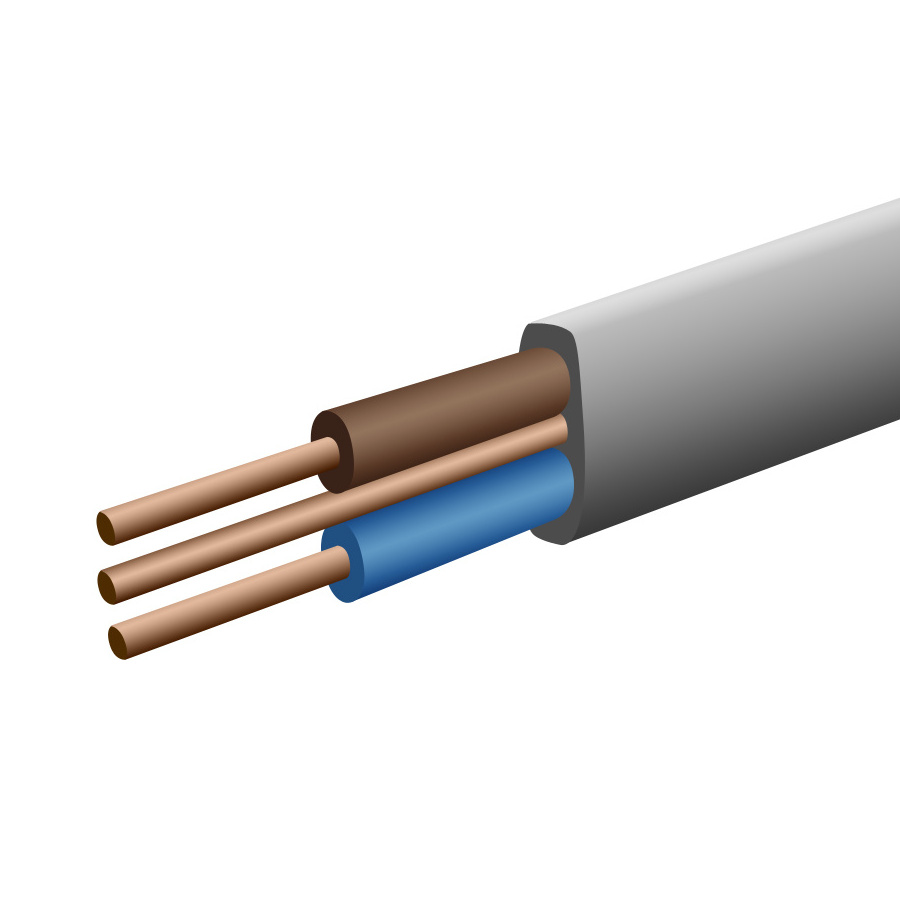

Copper conductor PVC insulated PVC sheathed flat wires |
300/500 |
1...10 |
|
|
BLVVB |
Aluminum conductor PVC insulated PVC sheathed flat wires |
300/500 |
2.5...10 |
|
|
227IEC02(RV)
227IEC06(RV) |
Copper conductor PVC insulated flexible connector wire |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
450/750
300/500 |
1.5...240
0.3...1 |
|
227IEC42(RVB) |
Copper conductor PVC insulated flat flexible connector wire |
300/300 |
0.3...1.5 |
|
|
RVS
|
Copper conductor PVC insulated flexible twisting connector wire |
300/300 |
0.3...1.5 |
|
|
227IEC52(RVV)
227IEC53(RVV) |
Copper conductor PVC insulated PVC sheathed round flexible connector wire |
300/300
300/500 |
0.5...6
0.3...4 |
|
|
227IEC08(RV-90)
|
Cu conductor heat resistant PVC insulated flexible connector wire at 90 0 C |
Mainly used at the places where heat resistance is required |
300/500 |
0.5...2.5 |
We also can manufacture many other specifications, if you have interest, welcome your enquiry!
