Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP8ET2ET1S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
1000M POE switch for FTTH FTTX solution
-
PoE Ports:
-
8*10/100/1000Mbps POE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps RJ45 & 1*1.25G SFP
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System,wireless AP, IP Phone, Wireless AP
-
Power Supply:
-
Built-in power supply, 135W
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
200*118*44mm
-
Operating Temperature:
-
-10℃ ~ 70℃
-
Warranty:
-
5 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
22Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP8ET2ET1S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
1000M POE switch for FTTH FTTX solution
-
PoE Ports:
-
8*10/100/1000Mbps POE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps RJ45 & 1*1.25G SFP
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System,wireless AP, IP Phone, Wireless AP
-
Power Supply:
-
Built-in power supply, 135W
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
200*118*44mm
-
Operating Temperature:
-
-10℃ ~ 70℃
-
Warranty:
-
5 years
Product Description

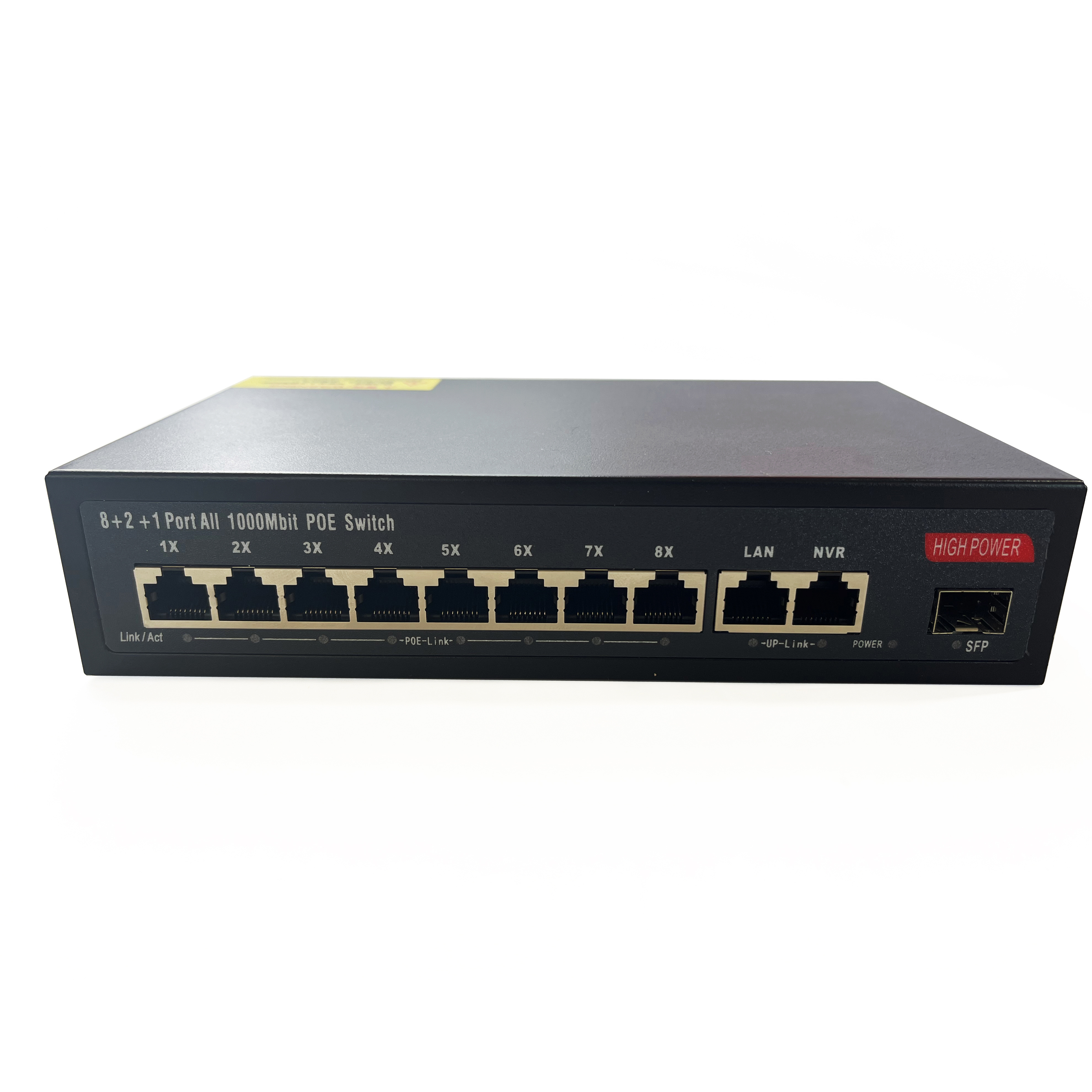

Factory Realtek Unmanageable Network Switch 10 ports full Ethernet 1000M POE switch for FTTH FTTX solution
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps or 10/100/1000Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Feature
◆8
* 10/100/1000M PoE Ports+2*10/100/1000Mbps RJ45 & 1*1.25G SFP slot Uplink port;
◆ Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Ethernet Uplink port supports 10/100/1000M adaptive;
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Panel indicator monitoring status and help failure analysis;
◆ Support 1U Rack Mount.
◆ Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Ethernet Uplink port supports 10/100/1000M adaptive;
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Panel indicator monitoring status and help failure analysis;
◆ Support 1U Rack Mount.
Specification
|
Technical parameter list
|
|
|
|
Product Name
|
11 ports 10/100/1000Mbps POE Switch(8+2+1)
|
|
|
Product Model
|
SST-LP8ET2ET1S
|
|
|
Power Supply Type
|
Build In, 1/2+,3/6-
|
|
|
PoE Output Power
|
15.4W/30W
|
|
|
Connector
|
8*POE port, 2*RJ45 Uplink+1*SFP Uplink
|
|
|
Network Medium
|
Cat5 (UTP) or more
|
|
|
Technology
|
|
|
|
Network Standards
|
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
|
|
PoE power
|
15.4W per port(IEEE802.3af). Internal power supply
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
|
|
Processing types
|
Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
|
Address database Table Size
|
4K MAC address
|
|
|
Buffer memory
|
1.5Mbits embedded memory per unit
|
|
|
Backboard Bandwidth
|
22Gbps Full duplex
|
|
|
Jumbo Frame
|
9216-byte
|
|
|
Power
|
|
|
|
POE output
|
DC48-56V, 135W
|
|
|
PoE power consumption
|
15.4W per port(IEEE802.af), 30W per port(IEEE802.at)
|
|
|
Overload current protection
|
Present
|
|
|
Mechanical
|
|
|
|
Casing
|
Metal
|
|
|
Installation
|
DESKTOP/Rack mounting with Bracket/on wall
|
|
|
Interface
|
|
|
|
LED Indicators
|
System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error |
|
|
Environment specification
|
|
|
|
Operating temperature
|
-10-70℃
|
|
|
Storage temperature
|
-40-85℃
|
|
|
Operating humidity
|
90% maximum relative humidity, non-condensing
|
|
|
Storage humidity
|
95% maximum relative humidity, non-condensing
|
|
|
Regulatory Approval
|
|
|
|
ISO
|
Manufactured in ISO9001 facility
|
|
|
Safety
|
CE/RoHS/FCC/CCC
|
|
|
Warranty
|
5 years
|
|
|
Dimensions
|
200*118*44mm (L*W*H)
|
|
|
Weight
|
N.W:0.98Kg G.W:1.2Kg
|
|
