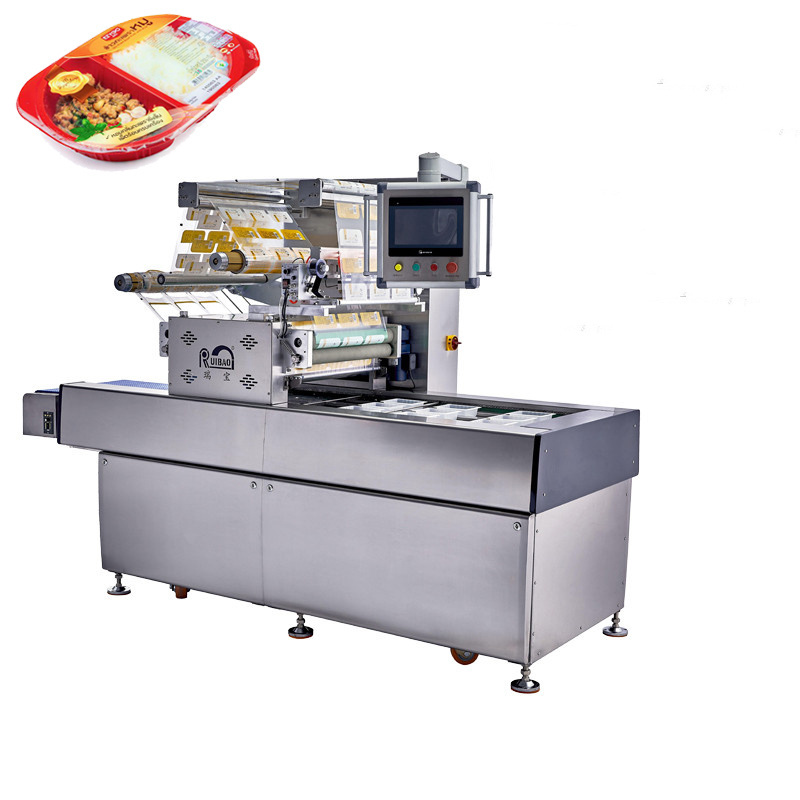

fast food tray sealing machine automatic modified atmosphere packaging machine MAP gas tray sealer

fast food tray sealing machine automatic modified atmosphere packaging machine MAP gas tray sealer

FOB Reference Price: Get Latest Price

≥1 Sets

US $26332

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 110V/220V/380V

Place of Origin:: Zhejiang, China

Brand Name:: RUIBAO

Dimension(L*W*H):: 2800*1170*1780-2550*1170*1780

Weight:: 720 KG

Function:: tray sealing

Capacity:: 4-8 times/min

Gases:: N2, O2 ,CO2

Gas substitution rate:: 99%

Suitable for:: PP PE PET plastic film and trap

Advantage:: keep food fresh

Name:: vaccum machine vacuum packing

Usage:: PP Bag vacuum Sealer

Keyword:: vacuum packing machine price

Feature:: automatic vacuum food sealer

Quick Details

Packaging Type:: Stand-up Pouch, Bags, Film, Pouch

Packaging Material:: Plastic, Paper

Driven Type:: Electric

Voltage:: 110V/220V/380V

Place of Origin:: Zhejiang, China

Brand Name:: RUIBAO

Dimension(L*W*H):: 2800*1170*1780-2550*1170*1780

Weight:: 720 KG

Function:: tray sealing

Capacity:: 4-8 times/min

Gases:: N2, O2 ,CO2

Gas substitution rate:: 99%

Suitable for:: PP PE PET plastic film and trap

Advantage:: keep food fresh

Name:: vaccum machine vacuum packing

Usage:: PP Bag vacuum Sealer

Keyword:: vacuum packing machine price

Feature:: automatic vacuum food sealer

How to get quotation and process order

Step 1 : Enquiry

Show samples
check size, settle down the model machine (our machine pack different type such as trap,film)

Step 2: Place order

checking details like spare parts and optional device then place the order. Customer send 50% deposit and we produce the machines.

Step 3: check machine

We concern production of machines and send pictures or videos to customers.Once the machine is ready, customers send sample tray or sample film for testing. After test OK and send the video to customers, then customer sending the balance

Step 4: delivery

we received the amount Booking shipment and pack with wooden case. Deliver the goods to the customers

Step 5: installment

customer received the machine, kindly read the operation instruction book and contact us for video guide until the machine running smoothly

Step 6 after-sale service

We will be online 24 hours. All the machines guarantee for one year.

Product Description

1)ZKM-550M model is Vacuum modified atmosphere packing machine for the tray max wide is 510MM single line .
2) ZKM-650M model is Vacuum modified atmosphere packing machine for the tray max wide is 510MM double line.

Different customers requires different demands. So You can choose as your market requirements：

a) MAP packing (single line or double line s) PS: MAP also have 4 types difference options:

1. filling one gas without vacuum

2. filling 3 gases without vacuum

3. filling one gas with vacuum

4. filling 3 gases with vacuum

The price is different as your requirements. More information please contact us.

b) SKIN packing (single line or double lines

c)MAP + SKIN packing (single line or double lines)

The price is depending on your choice.

304 Stainless steel sorting machine This sorting machine can sort all the tray and come out one by one.

label sticker machine This is optional device.It can connect with ZKM series automatic tray sealing machine.

Details & Optional functions

PLC+VACUUM PUMP+FILM FEEDING DEVICE

* IDEC PLC and Weinview touch screen* German Rietschle brand vacuum pump 150#
* France Schneider brand electric element
* Taiwan Airtac brand cylinder element
* Japanese Panasonic sensor for film feeding device
and air shaft operate easier and convenient

HIGH VACUUM DEGREE+ RECYCLING SYSTEM+ NEW DESIGN

* highest air cleaning then do vacuum seal can get high vacuum degree. It can pack different mode (customized)*recycling device
also use air shaft easier to take off
* Humanization body frame design.
*304# Stainless steel body + Alloy frame

Elmo Rietschle Brand vacuum pump

conveyor belt

one set mold ( seperate by SS strip)

Packing & Delivery

export wooden carton

Model	ZKM-550M	ZKM-650M
Voltage	380V/3 phase (can be customized)	380V/3 phase (can be customized)
Controller	Franch schneider PLC and touch screen	Franch schneider PLC and touch screen
servo motor and driver	Franch schneider	Franch schneider
Vacuum pump	German Rietschle brand	German Rietschle brand
Total power	7.5KW	8KW
Vacuum degree	maxi 0.1mbar	maxi 0.1mbar
Main material	304SS, Aluminium	304SS, Aluminium
Air pressure	0.6-0.8mpa	0.6-0.8mpa
N.W	720KG	720KG
Guarantee	1 year	1 year
Overall size	255011701780mm	280011701780mm
Packing capacity	3~6 cycles/min	3~6 cycles/min
Language	English	English
Air compressor	Not included	Not included
price	19882USD	26332USD
