Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
1500 KG
-
Warranty of core components:
-
12 Months
-
Product name:
-
Gold Trommel Screen Separator Machine
-
Keywords:
-
Gold Trommel
-
Name:
-
Washing Drum Screen
-
Application:
-
Alluvial Gold Washing
-
Usage:
-
Gold Separating
-
Advantage:
-
Long Working Life
-
Feeding size:
-
<300mm
-
Quality:
-
High Reputation
-
Other name:
-
Drum Seperator
-
Material:
-
Manganese Steel
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
hengchang
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
1500 KG
-
Warranty of core components:
-
12 Months
-
Product name:
-
Gold Trommel Screen Separator Machine
-
Keywords:
-
Gold Trommel
-
Name:
-
Washing Drum Screen
-
Application:
-
Alluvial Gold Washing
-
Usage:
-
Gold Separating
-
Advantage:
-
Long Working Life
-
Feeding size:
-
<300mm
-
Quality:
-
High Reputation
-
Other name:
-
Drum Seperator
-
Material:
-
Manganese Steel
Products Description
Top China Supplier Portable Gold Mining Washing Rotary Drum Trommel Screen with Sluice Box
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining feeding machine, mining crushing machine,mining milling machine, mining screening equipment, mining classifying separator, mining flotation machine and the mining gravity separator. If you want to buy mining equipment, choose Hengchang, we must ensure that you are satisfied.

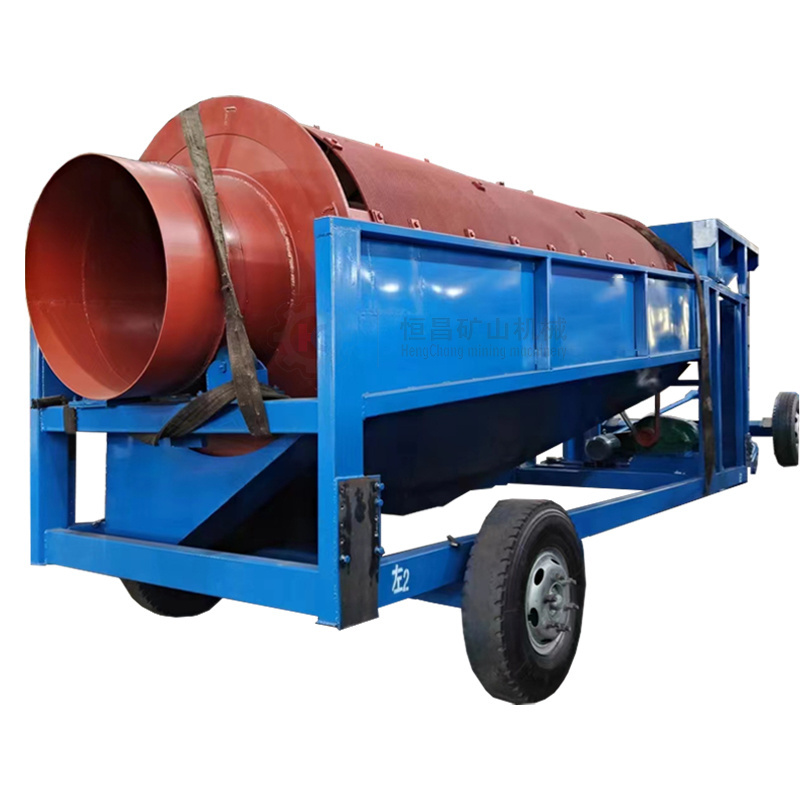

Gold Rotary Drum Screen Separator Machine
is a more flexible and cheaper gold washing solution, it can fully Customizable & moveable. This small machine can equip with the sluice box, gold centrifugal concentrator, shaker table, gold trommel, and other washer like sand washing machine. Also, vibrating feeders, vibrating screen, pumps, and other portable mining equipment can followed according to different conditions.
Top China Supplier Portable Gold Mining Washing Rotary Drum Trommel Screen with Sluice Box Applications:
It is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for classification of bulk material such as coal, minerals,coke etc.
1) Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical, fertilizer industry etc.
4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5) Metallurgy, construction, building materials, abrasives, and other industries.
Top China Supplier Portable Gold Mining Washing Rotary Drum Trommel Screen with Sluice Box Applications:
It is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for classification of bulk material such as coal, minerals,coke etc.
1) Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical, fertilizer industry etc.
4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5) Metallurgy, construction, building materials, abrasives, and other industries.
Product Working Principle
Materials fed into the trommel screen, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The three coupling shafts are designed higher than the screening surface, which enables the larger particles being stirred up and thus increases the screening efficiency. The particles larger than screen mesh size are discharged as the upper size materials which could be delivered away by belt conveyor,while the particles smaller than screen mesh are discharged as under size materials.
Product Structure
Product Paramenters
|
Model
|
Capacity
(t/h)
|
Power
(kw)
|
Screen diameter
(mm)
|
Discharge size
(mm)
|
Dimension (LxWxH)
(mm)
|
Weight
(kg)
|
|
GT1015
|
50
|
4
|
1000
|
3-10
|
3000x1400x2145
|
2200
|
|
GT1020
|
100
|
5.5
|
1000
|
3-10
|
3460x1400x2145
|
2800
|
|
GT1225
|
160
|
7.5
|
1200
|
3-10
|
4146x1600x2680
|
4200
|
|
GT1530
|
250
|
11
|
1500
|
3-10
|
4460x1900x2820
|
5100
|
|
GT1545
|
350
|
15
|
1500
|
3-10
|
5960x1900x3080
|
6000
|
|
GT1848
|
450
|
22
|
1800
|
3-10
|
6500x2300x4000
|
7500
|
|
GT2055
|
600
|
30
|
2000
|
3-10
|
7500x2500x4000
|
8600
|
Product Features
1) The sieve hole is not easily blocked.2) Running smoothly,low noise.
3) Simple structure and easy maintenance.
4) Screening cylinder can be closed,easy to close dust collection.
5)Using special sceen,high screening efficiency and long service life.
3) Simple structure and easy maintenance.
4) Screening cylinder can be closed,easy to close dust collection.
5)Using special sceen,high screening efficiency and long service life.
Certifications
Exhibition
FAQ
Q1:What is your machine used for ?
A1: Trommel screen is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for the classification of bulk material such as coal, minerals, coke etc.
Q2: Are you manufacturer or trade company?
A2: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q3: Where your products have been exported before?
A3: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q4: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q5: How about the wear parts supply?
A5: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us ,leave your whats app and email address, our sales manager will contact you within 1 hours.
A1: Trommel screen is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for the classification of bulk material such as coal, minerals, coke etc.
Q2: Are you manufacturer or trade company?
A2: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q3: Where your products have been exported before?
A3: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q4: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q5: How about the wear parts supply?
A5: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us ,leave your whats app and email address, our sales manager will contact you within 1 hours.
