Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QF
-
Screen Type:
-
CELL , a-Si TFT-LCD
-
Panel Model:
-
LC430DUY-SHA3
-
Pixel Format:
-
RGB Vertical Stripe
-
Resolution:
-
1920(RGB)*1080 (FHD) 51PPI
-
Active:
-
941.184*529.416 (H*V)
-
Viewing Angle:
-
89/89/89/89 (Min.)(CR≥10)
-
Display:
-
16.7M 68% NTSC
-
Transmissivity:
-
No B/L
-
Colors:
-
60Hz
-
Signal Interface:
-
LVDS (2 ch, 8-bit) , 51 pins Connector
Quick Details
-
Type:
-
TFT
-
Display Size:
-
43 inch
-
Supplier Type:
-
Original manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QF
-
Screen Type:
-
CELL , a-Si TFT-LCD
-
Panel Model:
-
LC430DUY-SHA3
-
Pixel Format:
-
RGB Vertical Stripe
-
Resolution:
-
1920(RGB)*1080 (FHD) 51PPI
-
Active:
-
941.184*529.416 (H*V)
-
Viewing Angle:
-
89/89/89/89 (Min.)(CR≥10)
-
Display:
-
16.7M 68% NTSC
-
Transmissivity:
-
No B/L
-
Colors:
-
60Hz
-
Signal Interface:
-
LVDS (2 ch, 8-bit) , 51 pins Connector
Led/LCD tv panel boe parts tv screen panel
Descriptions of Led/LCD tv panel boe parts tv screen panel :
Led/LCD tv panel boe parts tv screen panel is a 43 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
Parameters of Led/LCD tv panel boe parts tv screen panel :
| Manufacturer | Qiangfeng | Model Name | LC430DUY-SHA3 |
| Panel Size | 43 inch | Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 1920(RGB)×1080, FHD, 51PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 941.184(W)×529.416(H) mm | Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) | Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M 68% NTSC | Frequency | 60Hz |
| Lamp Type | No B/L | Touch Screen | Without |
| Panel Weight | 1.50Kgs (Typ.) | Application | TV |

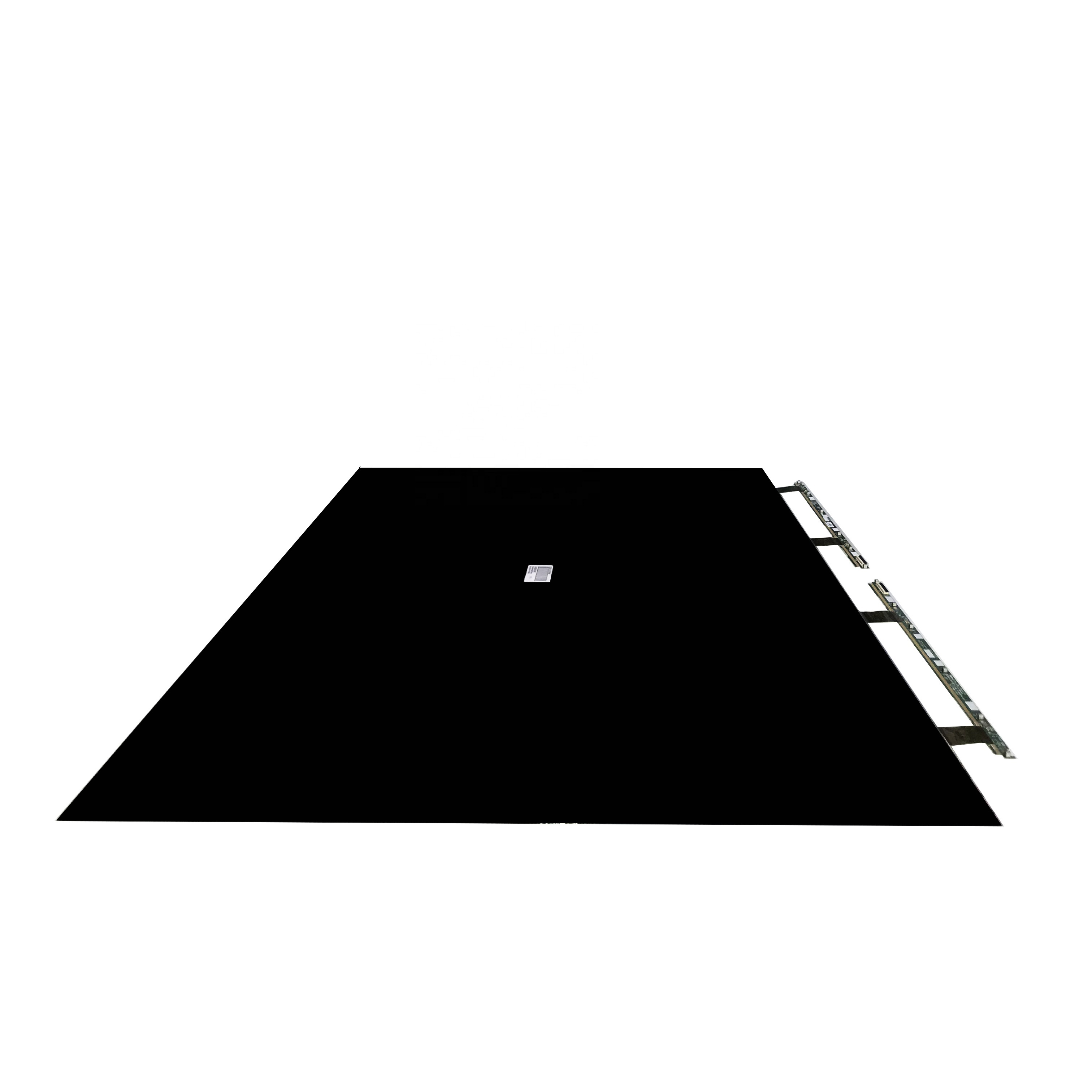

Pictures of Led/LCD tv panel boe parts tv screen panel
:
