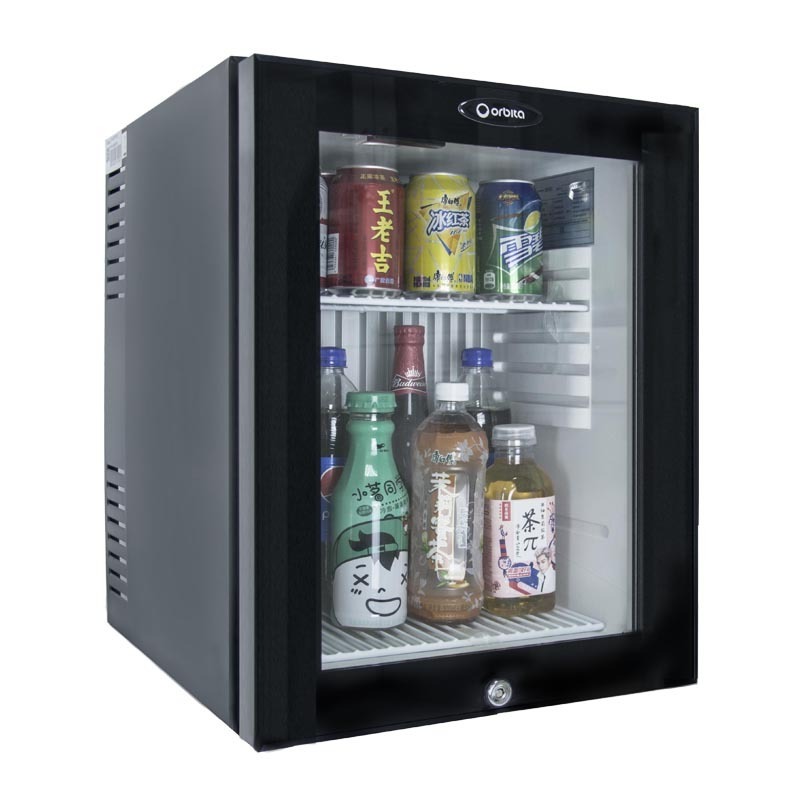

Hotel gas mini fridge with lock and key

Hotel gas mini fridge with lock and key

Absorption mini bar

No compressor

No freon

Environmental protection

Noiseless and useful life is long

1. BRIEF introduction

1: Minibar are the one of the products which are environmental friendly, without fluorine, and cause no pollution to the aerosphere.

2: Minibar are without compressor, silent and don’t produce any noise, function stably and soundly. The products can defrost automatically and belong to static-cooling refrigerators.

3: The products adopt electronic temperature control, which makes the temperature in the product.

4: Quite even, and have little fluctuation when starting and shutting off.

5: The door hinges of the product are left-and-right interchangeable

2 .The working principle of the absorption minibar

Abdorption refrigeratior is the principle of ammonia-water-ammonia mixed solution in a continuous absorption-diffusion process to achieve the purpose of cooling .In absorption refrigerator system,ammonia as a refrigerant.ammonia solution as the absorbent.helium as balance gas.The ammonia water from bottom of the cooler was heated by heat film into ammonia gas.then moved to the heat sink,naturally cooled into ammonia water,then entered into the evaporator mixed with ammonia gas,the rapid gasification to take away the heat leat to refrigeration After refrigeration,the ammonia water continues to sink to reach the bottom of refrigerator,and begin the next refrigeration recycle.

3. Technical parameter:

1. Absorption refrigeration utilizes green refrigeration mode, which meet the requirement of environmental protection, energy saving and mute.

2. Low temperature illumination lamp.

3. Shift-proof door line can fix articles effectively.

4. The height of the immersed plastic shelves is available for change.

Model	MB-20	MB-30	MB-40	MB-60
Storage  temperature ( °C )	0~12	0~12	0~12	0~12
Cooling method	absorption	absorption	absorption	absorption
Input power(W)	65	65	65	85
Energy consumption(kwh/24h)	0.9	0.9	0.9	1.2
Validity capacity(L)	20	30	40	60
Voltage(V)	AC220/110	AC220/110	AC220/110	AC220/110
Type of controller	Digital	Digital	Digital	Digital
Type of door seal	removable	removable	removable	removable
Net/gross weight(kg)	18/20.5	16.5/18.5	18.5/20.5	21/21.5
Shape size(W*D*H)mm	400*470*517	400*420*480	400*440*550	485*495*560
Packing size(W*D*H)mm	452*497*560	460*480*545	460*500*610	565*575*625

4. Usage instructions

1:Please let the product work about 1 hour with no load,and then put in the foodstuff when using the product for the first time.

2:The product shall stand horizontally and can’t be slanted;otherwise it will cause poor cooling.

3:There are totally 5 positions in the temperature adjusting device,normally please use position 4.Position 1 is the warmest while position 5 is the coolest.

5:Don’t put too much foodstuff into the cabinet once,please add foodstuff gradually.

6:Certain distance shall be kept between the foodstuff stored in the cabinet,so that the cool air can flow freely and the temperature will be even.

5.Why Orbita Minibar?

Quality

ORBITA minibars have been quality engineered to comply with the latest global refrigeration standards for in-room minibars.

Design

The ORBITA minibars are designed as either free stand alone units or to be mounted in cupboards or similar. The minibars are available in 3 contemporary designs to match your hotel room.

Technology

ORBITA minibars are developed upon expert knowledge of minibar operations and thus enabling us to recommend the best type of technology for your hotel.

Environment

ORBITA minibars are produced under the philosophy that all resources are used as efficiently as possible and to burden the environment as little as possible.The use of environmentally superior Cyclopentane in the insulation manufacturing process, combined with low energy consumption, generous internal cabinet space and totally silent operation make PolarBar minibars a four-way winner: savings, quality, flexibility, great value.

All products are CE certified and produced according to ISO9001:2000 and ISO14000 standards and WEEE regulations.

5.How to place the order ?

1 .C hoose items from our website or catalogue, and then advise us Quantity ,Color,Mortise Standard you need for each model by E-mail .

2 .P roforma I nvoice will be send to you to confirm the order.

3 .Arrange the payment by T / T , P aypal or W estern u nion.

4 .P roduction will be arranged once deposit  payment received.

5 .G oods will be shipped to you by internation express or sea transport & air transport.

6 .Tracking number will be sent to you after items have been shipped.

7 .We will help to track it until you get them.

FAQ

1.It is more expensive then others , why ?
Orbita  minibar use European absorption technology. It need higher quolity material and technology to support it . That means the cost is higher then other type minibar.

2.Which capacity do you have?
We have 20L, 25L,30L ,40L,60L

3.Can we put the minibar in the wardrobe?
You can, but better to leave some space in the back of the minibar. It is aborption type and need some space for air circulation

4.How to maintain it ? When it have the problems?

You can contact our after-sales service when it is with the problems . And show them the  evidence, like picture, vedio. We will judge what cause it ? And then give you a satisfied sollution.

5.what is the advantage of your minibar comparing to other absorption type minibar?
The cooling technology is from Eu which is the major part of the minibar.

6.Can you minibar make ice?
Minibar should not not make ice and it has special treatment to avoid frost as well.

7.Does your minibar have a locker?
Yes, it has a locker on it. Minibar can be locked when tourist group check in.

You are welcome to contact us for more informations !
