Quick Details
-
Production Capacity:
-
99%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EDIAO
-
Voltage:
-
220v/380v 50-60HZ
-
Dimension(L*W*H):
-
3000*1800*1500mm
-
Weight:
-
1500 kg
-
Working area:
-
1300*2500*400mm
-
Reposition precision:
-
0.02mm
-
Processing precision:
-
0.05mm
-
USE:
-
marble/ granite/stone/metal/glass
-
Control system:
-
DSP/NC-studio/Mach3
-
Name:
-
ED-1325 cnc router for stone
-
Keywords:
-
cnc router
-
Motor:
-
Stepper
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 5.5kw 6.0kw
-
Spindle speed:
-
0-24000RPM
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
15 KW
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
99%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EDIAO
-
Voltage:
-
220v/380v 50-60HZ
-
Dimension(L*W*H):
-
3000*1800*1500mm
-
Weight:
-
1500 kg
-
Working area:
-
1300*2500*400mm
-
Reposition precision:
-
0.02mm
-
Processing precision:
-
0.05mm
-
USE:
-
marble/ granite/stone/metal/glass
-
Control system:
-
DSP/NC-studio/Mach3
-
Name:
-
ED-1325 cnc router for stone
-
Keywords:
-
cnc router
-
Motor:
-
Stepper
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 5.5kw 6.0kw
-
Spindle speed:
-
0-24000RPM

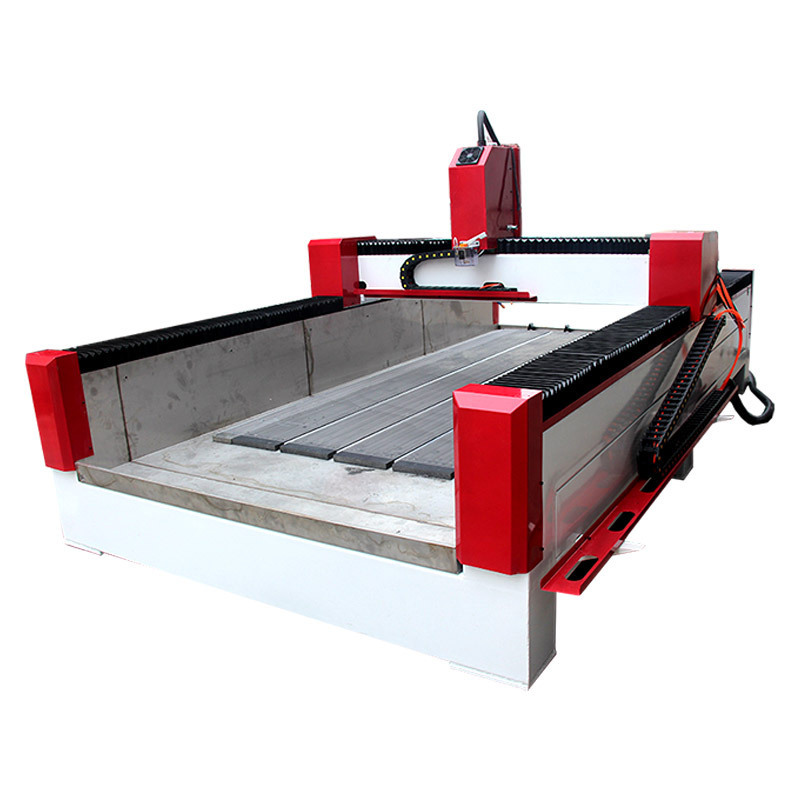

Tomb cnc carving milling router machine with sink 1325
Performance Features:
1.Three axises adopt import Taiwan Hiwin (or PMI) square linear orbit , two line sliding track, heavy loading, stable working, high precision, long lifetime .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3. Whole seamless weld steel structure , not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
4. Constant power spindle and motor, hightly cutting capability ,high efficiency.
5. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam , Castmate ,Wentai ,Coredraw.
6. Double direction cutters cooling system can prolong the lifetime of using.
7. High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
|
X,Y Working area : |
1300mmx2500mm |
|
Z Working area: |
400mm |
|
Table size : |
1300mmx2500mm |
|
Processing precision : |
0.05mm |
|
Reposition precision: |
0.02mm |
|
Table structure : |
cast iron |
|
X,Y,Z structure : |
X,Y,Z ball screw |
|
Command: |
G CODE |
|
Machine power: |
2KW |
|
Max processing speed : |
30000mm/min |
|
Max speed : |
8000mm/min |
|
Working voltage: |
AC380V/50Hz |
|
Spindle power: |
5.5KW |
|
Spindle rotating speed : |
0-24000rpm/min |
|
Drive motor : |
Stepper |
|
Operation system : |
DSP or NC studio |
