Quick Details
-
Screw Speed (rpm):
-
38 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEISU
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3500.00 * 2200.00 * 2000.00
-
Power (kW):
-
37
-
Weight:
-
300 KG
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw diameter (mm):
-
65/132mm
-
Screw Speed (rpm):
-
38 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEISU
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3500.00 * 2200.00 * 2000.00
-
Power (kW):
-
37
-
Weight:
-
300 KG
Product Description

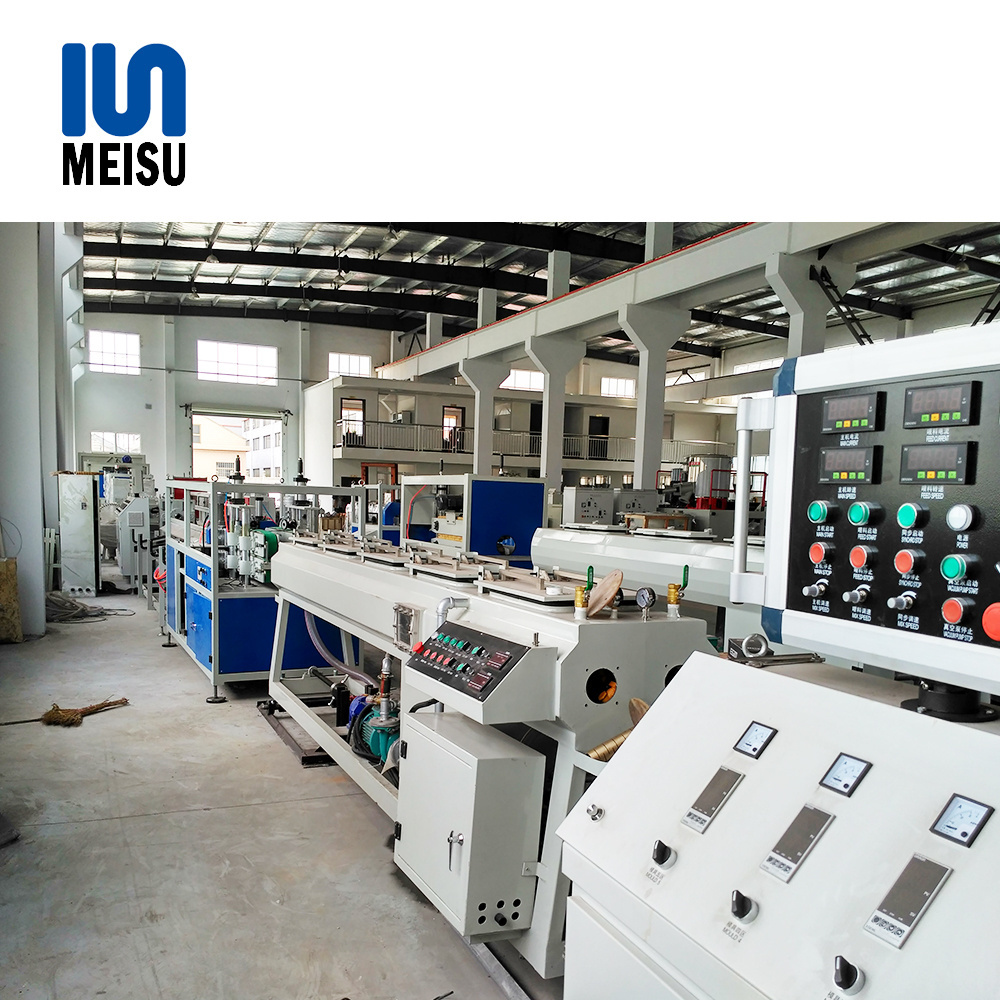

Plastic Extruders
The plastic single screw extruder used for PE is used for plastic processing. Our single screw extruder has competitive prices and guaranteed quality. It is usually used to add PVC, PE, PET, PP, ABS, PLA, PC, etc. The diameter range of the machine screw ranges from 25mm to 200mm. It can be used to manufacture plastic particles such as PVC/PE/PP/ABS/PET, as well as to produce PP/PE pipes, PVC hoses, PP-R pipes, HDPE pipes, and downstream machines such as molds, vacuum calibration tanks, cooling tanks, transporters, cutting machines, palletizing platforms, printers, etc.
Products Features
|
Products Features
|
|
|
|
1.
|
The screw and barrel of the extruder are made of high-quality alloy steel 38CrMoVAlA, which has undergone nitriding treatment and special surface treatment, resulting in good quality and long service life.
|
|
|
2.
|
Overall design: The single screw extruder adopts an overall design to enhance plasticization function and ensure high-performance and stable extrusion. Design concept: High speed, high output, and high-level extrusion.
|
|
|
3.
|
Gearbox: Hard tooth helical gear reducer, beautiful appearance, smooth operation, low noise, and long service life.
|
|
|
4.
|
Heating system: Adopting 304 stainless steel plate cover cast aluminum heater, fan separated cooling system, ensuring good refrigeration and heating performance, and precise temperature control.
|
|
|
5.
|
Drive system: Using well-known Chinese motor brands and ABB frequency converters, providing stable torque output and various speeds.
|
|
Detail photos
Apllication
