Quick Details
-
Holding force:
-
60kg(120Lbs)
-
Lock size:
-
80*37*24 mm
-
Suction plate size:
-
70*33*9 mm
-
Application:
-
File cabinet, display cabinet
-
Door signal:
-
No
-
Lock signal:
-
Yes
-
Working current:
-
120mA
-
Security type:
-
fail safe/power off to open
-
Weight:
-
0.6kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TK
-
Product Name:
-
60kg mini electromagnetic lock
-
Holding force:
-
60kg(120Lbs)
-
Lock size:
-
80*37*24 mm
-
Suction plate size:
-
70*33*9 mm
-
Application:
-
File cabinet, display cabinet
-
Door signal:
-
No
-
Lock signal:
-
Yes
-
Working current:
-
120mA
-
Security type:
-
fail safe/power off to open
-
Weight:
-
0.6kg

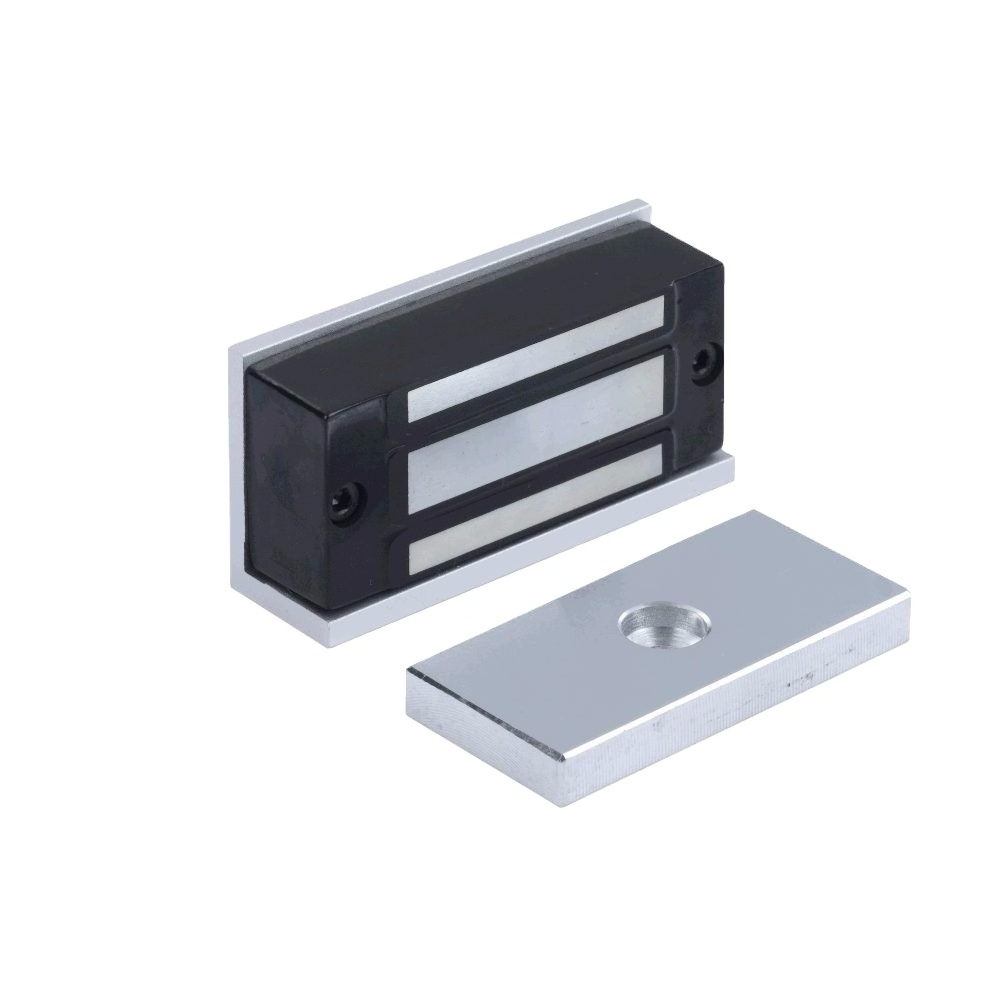

TK-60AS mini 60kgs 120 lbs electronic magnetic lock for single door
electromagnetic lock door magnetic lock with signal
The design of magnetic locks is the same as the electromagnet.By using the principle of electomagnetic,when current passes through the silicon steel sheet,magnetic locks will produce powerful suction,thereby help to tightly absorb iron plate.Every small current produce huge magnetic force,which can effectively control the door.
Specification:
|
Size: 8 0Lx37Wx24H(mm) |
|
Armature Plate Dimension: 7 0Lx33Wx9H(mm) |
|
|
Holding Force: 6 0kg(120Lbs) |
|
|
Input Voltage: 12V DC+10% |
|
|
Current: 12V/120mA |
|
|
Suitable: file/display cabinet |
|
|
Signal output: Yes |
Feature:
*3 Years Warranty
*CE/FCC/RoHS certifications
*Pin-type PCB, very good for maintainance
*High quality silicon-steel plate material , anodized
*Holding force: 50-60KG for 60KG(120Lbs) standard.
*Optional Bracket: Z, U Bracket
Standard Mounting Method
