Quick Details
-
Size:
-
Customize, personalized size
-
Application:
-
stadium
-
Material:
-
Steel Q235B
-
Seat material:
-
hollow plastic seats or aluminum alloy available
-
Seat C/C:
-
450-500mm
-
Row height:
-
300mm
-
Footboard width:
-
800mm(wood,steel or aluminum alloy available)
-
key word:
-
football grandstand
-
Warranty:
-
2 Years
-
Certificate:
-
ISO9001,TUV,CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart Sports
-
Model Number:
-
Smart Bleachers
-
Size:
-
Customize, personalized size
-
Application:
-
stadium
-
Material:
-
Steel Q235B
-
Seat material:
-
hollow plastic seats or aluminum alloy available
-
Seat C/C:
-
450-500mm
-
Row height:
-
300mm
-
Footboard width:
-
800mm(wood,steel or aluminum alloy available)
-
key word:
-
football grandstand
-
Warranty:
-
2 Years
-
Certificate:
-
ISO9001,TUV,CE
Smart Group stadium stand features
-
Free design
for every customer until you get most satisfying grandstand design
- Finish : Grandstands are built using “galvanized” steel understructures.
-
Types of Grandstands:
Non-Elevated Grandstands – The first row starts from the ground level.
Elevated Grandstands – There is a front walkway typically 1-6ft elevated from the ground which is accessed by means of stairs or wheelchair ramps.
- Grandstand Decking : Fully Closed decking . Iron, plywood, aluminum plank decking for options,
- Seats: Aluminum plank or stadium seats
Non-Elevated Grandstands – The first row starts from the ground level.
Elevated Grandstands – There is a front walkway typically 1-6ft elevated from the ground which is accessed by means of stairs or wheelchair ramps.
- Grandstand Decking : Fully Closed decking . Iron, plywood, aluminum plank decking for options,
- Seats: Aluminum plank or stadium seats

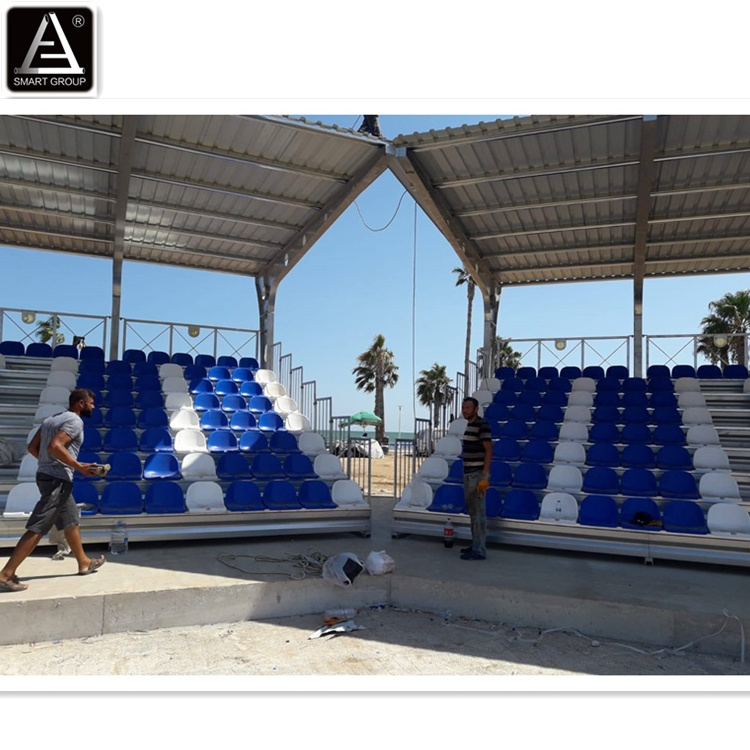

High Standard Steel Grandstand arena Metal Bleachers
|
Product Name
|
High Standard Steel Grandstand arena Metal Bleachers
|
|
Structure
|
I-Beam Steel Structure hot-dip Galvanized
|
|
Seats
|
UV protection and Fire proof plastic seats
|
|
Length
|
customize according to your requirements
|
|
Rows
|
8 rows or customize
|
|
Elevated Height
|
1 meter or customize
|
|
Rising Height
|
300mm
|
|
Row width
|
750mm
|
|
Material
|
Seats:Heavy duty HDPE + hardwares
|
|
|
Structure:Q235B steel, hot dip galvanized
|
|
|
Decking: Steel plate
|
|
Aisle
|
600-1000mm
|
|
Carrying Capacity
|
Foot board: 750kg/m²., Seats: 2000N/m
|
|
MOQ
|
100 seats.
|
|
Certificates
|
TUV / CE / SGS / ISO9001 / European Trademark &The United States trademark
|
|
Application
|
Stadium, Arena,Event,race Track, Training Field, Schools, Athletic field, etc.
|
|
Packaging
|
Metal Structure package by steel rack , seats packed by carton
|
|
Delivery Time
|
20-60 Days (the delivery date is according to the project plan to implement).
|
|
Payment
|
T/T and Trade Assurance
(50% deposit in advance, pay the balance payment before container loading) |
Kindly note that this grandstand are according your ground situation and your size requirements to customize. we are bleachers/grandstand manufacturer in China.
we could supply difference option for customer different budget requirements
Products Description
SMART BLEACHERS
Design · Engineering · Fabrication
Packages & Delivery
Customized Options
Deacking, 3 types
Seating, 3 types
Low bakrest seat
Stadium seats model: HDPE-01
Size: 420*420*170mm
Middle backrest seat
Stadium seats model: HDPE-02Size: 450*415*310mm
Regular aluminum plank
Milled aluminum alloySize: 2000*240*100mm
Product After-sales Service Commitment
1. Basic situation of after-sales
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
2.1 warranty period: 2 years
2.2 During the warranty period, all product repair services are on-site services and do not charge any fees.
2.3 After the warranty period, provide life-long maintenance services, only charge the cost of accessories and consumables
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free training
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats.
Training content including product material understanding, structural characteristics, maintenance and common failure analysis solutions.
2.3 After the warranty period, provide life-long maintenance services, only charge the cost of accessories and consumables
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free training
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats.
Training content including product material understanding, structural characteristics, maintenance and common failure analysis solutions.
Why Choose Us
YOU’RE DEALING DIRECTLY WITH THE MANUFACTURER.
No middle man. We provide all customer service & support from our Guangzhou facility.
YOU’RE CONNECTING WITH THE EXPERTS.
We understand every detail and feature because we engineer every stage of design and fabrication.
YOU’RE GETTING THE BEST PRODUCT AT THE BEST PRICE.
Direct purchasing means significant savings and the best warranty in the business!
YOU'RE GETTING THE STEADY SUPPLY CHAIN.
We cooperate with leading forwarder guarantee the delivery to your city or to your door without damage &on time.
