Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Size:
-
3000*1525*300
-
OE NO.:
-
Accept OEM
-
Material:
-
Steel
-
Surface finish:
-
Hot Dipped Galvanized
-
OEM:
-
available
-
Tyre:
-
185R14C (8pr,850kgs)
-
light & reflector:
-
e-mark & DOT certification
-
Floor:
-
2.5m FLAT steel plate
-
Brake:
-
Cable disc brake
-
Load capacity:
-
2000kgs
-
Spring:
-
Slipper springs
-
Trailer design:
-
As customer drawing
Quick Details
-
Max Payload:
-
2000KG
-
Brand Name:
-
GINO
-
Model Number:
-
GN-BT105W
-
Place of Origin:
-
Jiangxi, China
-
Size:
-
3000*1525*300
-
OE NO.:
-
Accept OEM
-
Material:
-
Steel
-
Surface finish:
-
Hot Dipped Galvanized
-
OEM:
-
available
-
Tyre:
-
185R14C (8pr,850kgs)
-
light & reflector:
-
e-mark & DOT certification
-
Floor:
-
2.5m FLAT steel plate
-
Brake:
-
Cable disc brake
-
Load capacity:
-
2000kgs
-
Spring:
-
Slipper springs
-
Trailer design:
-
As customer drawing
Gino a professional manufacturer of trailers and trailer parts.
Especially the Popular Single Axle box bolted trailers, Single Axle weld trailers, Tandem bolted trailers, Tandem weld trailers,Hydraulic Tipping trailers(drop down side) , Hydraulic tipping weld trailers,Camper trailers. Different size can be made
(6*4 7*4 7*5 8*5 9*5 10*5 10*6 12*5 12*6).
winch can be choiced. Can do OEM &ODM trailers or design as customer’ s request. Competitive price(factory direct) welcome to visit our factory.

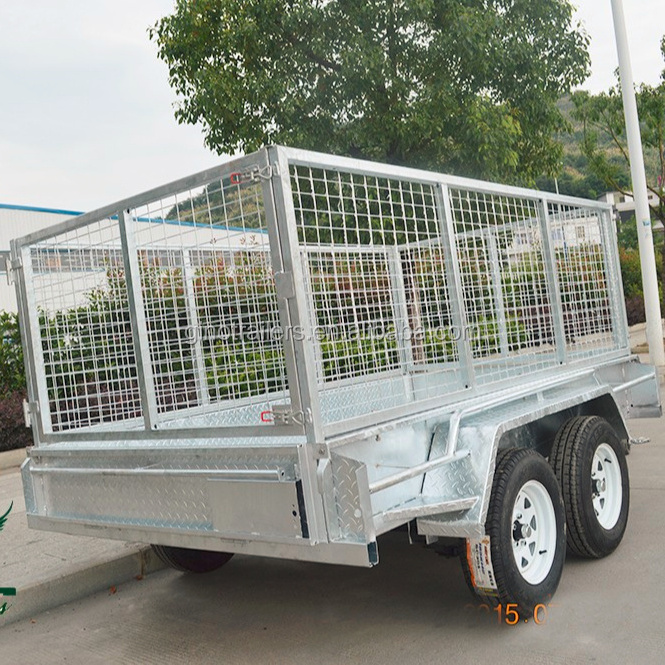

| Tandem Trailers | ||
| Finishing: | Hot dipped galvanized | |
| Load capacity: | 2000KG | |
|
Frame Steel |
Draw Bar: | 100x50x3mm |
| Chassis: | 70x50x2.5mm | |
| Cross bar: | 50x50x2mm | |
| Sheet steel:(bolted) | 2.5mm checker steel plate floor&1.2mm side wall & doors | |
| Sheet steel:(fully weld) | 2.5mm checker steel plate floor &2.5mm side wall&doors | |
| Tyre: | 185R14C(8ply,850KG) with white powder coated rims | |
| Axle: | 45x45mm cable disc brake on one axle & solid square axle without brake | |
| Springs: | 5 leaf heavy duty rocker roller springs | |
| Coupling: | Australian style & 12mm ADR safety chain | |
| Mudguard: | 2.5mm chequer steel plate mudguard | |
| Mesh cage height: | 600mm;900mm | |
| Mesh cage : | 30x30x1.5mm tube | |
| Jockey wheel: | 2000LBS(Double Wheel) & Side swing | |
| Lights&Reflector | LED Taillights with e-mark&DOT certification | |
| Spare tyre: | Non (All trailers do not include the spare wheels) | |
| Tie down: | 20mm round tube tie down all around the trailer | |
|
As buyer style coupling and safety chain with D-lock: |
Yes | |
| Tandem Box Trailer(Bolted)without cage | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-B85T | 2440X1525X300mm | 2000KG | 495KG | 20pcs | 45pcs |
| GN-B95T | 2745x1525x300mm | 2000KG | 535KG | 18pcs | 42pcs |
| GN-B105T | 3050x1525x300mm | 2000KG | 585KG | 16pcs | 35pcs |
| GN-B106T | 3050x1830x300mm | 2000KG | 610KG | 15pcs | 32pcs |
| GN-B126T | 3660x1830x300mm | 2000KG | 650KG | 12pcs | 26pcs |
| Tandem Box Trailer(Fully welded)without cage | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-B85TW | 2440X1525X300mm | 2000KG | 545KG | 12pcs | 35pcs |
| GN-B95TW | 2745x1525x300mm | 2000KG | 595KG | 12pcs | 30pcs |
| GN-B105TW | 3050x1525x300mm | 2000KG | 635KG | 10pcs | 30pcs |
| GN-B106TW | 3050x1800x300mm | 2000KG | 675KG | 10pcs | 25pcs |
| GN-B126TW | 3660x1800x300mm | 2000KG | 710KG | 6pcs | 18pcs |
