Quick Details
-
Brand Name:
-
super
-
Dimension(L*W*H):
-
4.1*1.5*1.5m
-
Weight (KG):
-
3900
-
Type:
-
CNC Hydraulic Box and Pan Folder
-
Folding Thickness:
-
2-5mm
-
Folding Materials:
-
Q235 carbon steel,GI,CR,SS
-
Folding length:
-
1320,2500,3200,4000mm
-
Folding Angle:
-
0~120 degree
-
Back gauge range:
-
max 500mm (or according customer request)
-
Name:
-
Folding Machine
-
Motor Power:
-
2.2~5.5KW
-
Open Height:
-
110mm
-
Certification:
-
ce
Quick Details
-
Bending Thickness(mm):
-
0.8 - 6 mm
-
Bending Length(mm):
-
3200 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
super
-
Dimension(L*W*H):
-
4.1*1.5*1.5m
-
Weight (KG):
-
3900
-
Type:
-
CNC Hydraulic Box and Pan Folder
-
Folding Thickness:
-
2-5mm
-
Folding Materials:
-
Q235 carbon steel,GI,CR,SS
-
Folding length:
-
1320,2500,3200,4000mm
-
Folding Angle:
-
0~120 degree
-
Back gauge range:
-
max 500mm (or according customer request)
-
Name:
-
Folding Machine
-
Motor Power:
-
2.2~5.5KW
-
Open Height:
-
110mm
-
Certification:
-
ce
Products Description

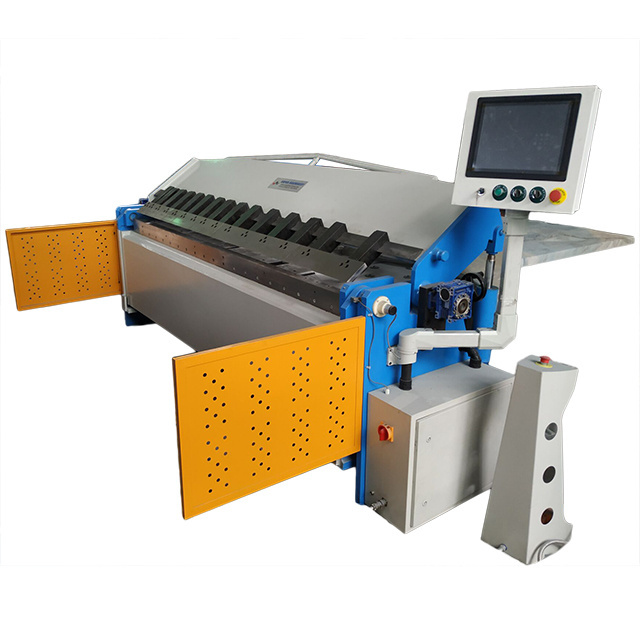

Full Automatic CNC Sheet Metal Folding Machine
Structural & Operating Features;
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
Feature
* 14′-1″ bending width, 14 gauge maximum thickness
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
Options
*
E21s control panel
* Rear ball roller table
* Back gauge extend
* Pnematic back gauge block finger
Product Paramenters
|
Model
|
Capacity(mm)
|
Folding angle(
o
)
|
Open Height(mm)
|
Motor Power(kw)
|
Net Weight(kg)
|
Dimension (L*W*H)(mm)
|
|
W62K
|
2*2500
|
0~120
|
110
|
2.2
|
1700
|
3300x850x1550
|
|
W62K
|
2*3200
|
0~120
|
110
|
2.2
|
3600
|
4100x1550x1550
|
|
W62K
|
3*2500
|
0~120
|
110
|
4
|
3100
|
3450x1130x1800
|
|
W62K
|
3*3200
|
0~120
|
110
|
4
|
3800
|
4150x1130x1800
|
|
W62K
|
3*4000
|
0~120
|
110
|
4
|
6100
|
4900x1150x1900
|
|
W62K
|
4*1320
|
0~120
|
110
|
4
|
1800
|
2270x1130x1800
|
|
W62K
|
4*2000
|
0~120
|
110
|
4
|
2500
|
2900x1130x1700
|
|
W62K
|
5*2500
|
0~120
|
110
|
5.5
|
4000
|
3500x1130x1800
|
|
W62K
|
5*3200
|
0~120
|
110
|
5.5
|
5500
|
4150x1130x1900
|
|
W62K
|
2*4300
|
0~120
|
110
|
4
|
6100
|
5400*1150*1650
|
|
W62K
|
1.5*6300
|
0~120
|
110
|
5.5
|
12000
|
7100*1850*1650
|
Graphic touch panel (standard)
Button panel (optional)
Digital read out panel (optional)
Standard back gauge (servo motor drive , linear guide and ball screw)
Main motor(siemens), magnetic valve (rexroth),hydraulic system
Electric componet(Schneider) , PLC+touch screen (Xinjie)
Rear roller table and pnematic block finger (optional)
CNC folding brake samples
Sheet metal box and pan folding brake machine options:
A. Hydraulic with manual back gauge
B. 1-axis digital CNC for bending angle / back gauge with manual back gauge / bending angle.
C. 2-axis graphic CNC for bending angle and back gauge
B. 1-axis digital CNC for bending angle / back gauge with manual back gauge / bending angle.
C. 2-axis graphic CNC for bending angle and back gauge
