Quick Details
-
Model Number:
-
TIG 400 AC/DC PULSE
-
Max Wire Diameter:
-
5mm
-
Weight:
-
27kg
-
Product name:
-
TIG MIG Welder
-
OEM:
-
Accept
-
Package:
-
Carton
-
Service:
-
24 Hours Online/hotline
-
Payment:
-
T/T, L/C
-
Certification:
-
ISO
Quick Details
-
Dimension (L x W x H):
-
550*240*445
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
TIG 400 AC/DC PULSE
-
Max Wire Diameter:
-
5mm
-
Weight:
-
27kg
-
Product name:
-
TIG MIG Welder
-
OEM:
-
Accept
-
Package:
-
Carton
-
Service:
-
24 Hours Online/hotline
-
Payment:
-
T/T, L/C
-
Certification:
-
ISO
Products Description
|
Product Name:
|

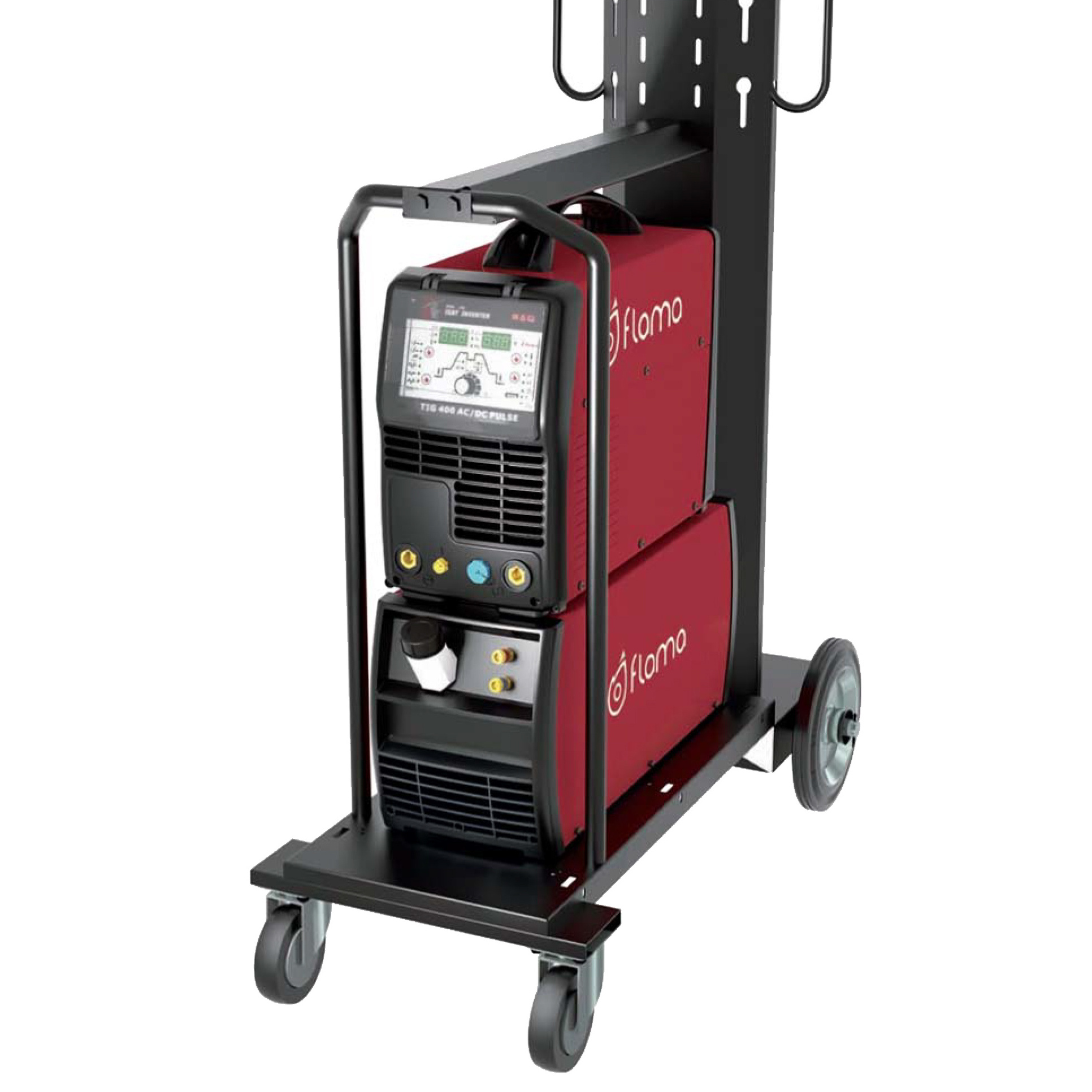

Heavy Duty 3 Phase Dual Remote Control Generator Friendly AC DC Inverter HF TIG Welder
|
|
|
|
|||
|
Dimensions:
|
550*240*445mm
|
|
|
|
|||
|
Features
|
Phase Loss Protection.
Optional trolley and water cooling unit.
High frequency tig mode.
Heavy Duty Cycle.
550V tested in production.
Multi-Waveform output, ac waveforms include square wave, sine wave, triangular wave.
3 phase 380V/400V 415V/440V 50/60Hz.
Remote foot control and wireless remote control.
AC balance (50-85%) control monitors the oxide and helps better cleaning during aluminum welding.
|
|
|
|
|||
Product Parameters
|
Input Voltage
|
3-380V
|
|
Input Current
|
25/32A
|
|
Input Power
|
13/17KW
|
|
Insulation Class
|
H
|
|
Duty Cycle (40°C)
|
60%400A; 100%310A;
|
|
No Load Voltage
|
67V
|
|
Effective Current
|
19/25A;
|
|
Protection Class
|
IP23
|
|
Cooling
|
AF
|
|
Welding Current
|
10-400A
|
|
Fre.HZ
|
50/60
|
|
Pulse width range %
|
5-95
|
|
Dimensions
|
550*240*445mm
|
|
Weight
|
27kg
|
