Quick Details
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ROEY
-
Model Number:
-
PIR-118
-
Mechanical Life:
-
100000 Times
-
Cable length:
-
0M
-
IP level:
-
IP65
-

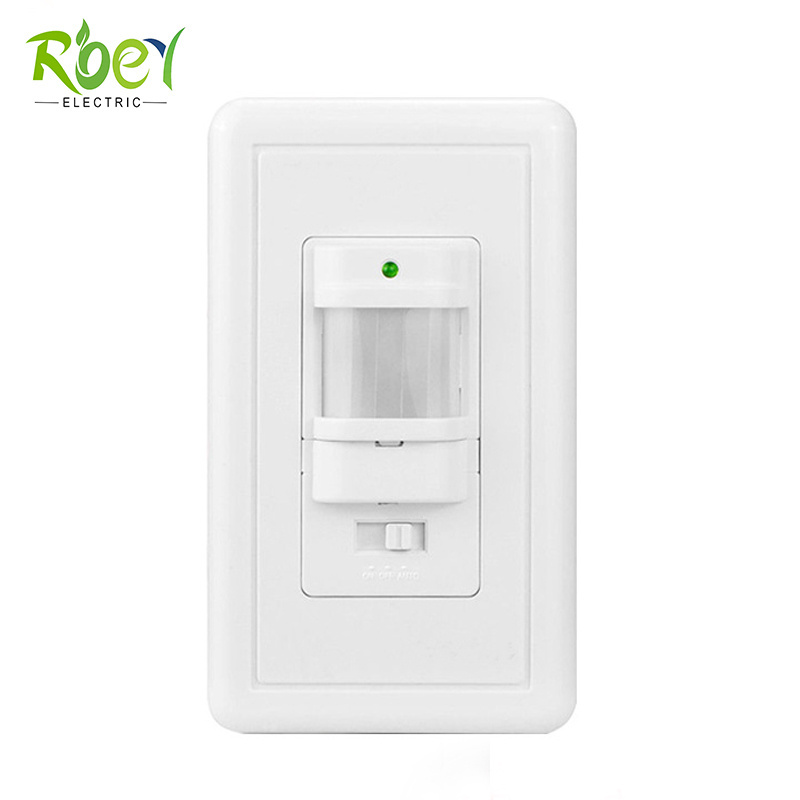

Product Name:
-
Motion Sensor Switch
-
Detection Motion Speed:
-
0.6~1.5m/s
-
Detection Range:
-
180 degree
-
Detection Distance:
-
9m max
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
100-130V/AC 50/60Hz
-
Network:
-
None
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ROEY
-
Model Number:
-
PIR-118
-
Mechanical Life:
-
100000 Times
-
Cable length:
-
0M
-
IP level:
-
IP65
-
Product Name:
-
Motion Sensor Switch
-
Detection Motion Speed:
-
0.6~1.5m/s
-
Detection Range:
-
180 degree
-
Detection Distance:
-
9m max
As there is a photosensitive internal, switch only allows the light switch to be activated on in dark condition. So when you test the switch on AUTO function in a very bright environment (Ambient Light: > 5-10LUX) , It won’t work ( Even movement sensed). In this condition, Please do Cover the detection area with your hand for about 30 seconds then test again.
Features:
- [Motion Sensor & Light Sensor Switch]:Automatically turn on/off lights based on room occupancy when detect hear source and environment brightness.Detection motion speed is 0.6~1.5m/s.
- [Time Delay]:Adjustable Time-Delay for customizing: Min: 10sec±3sec ; Max:7min±2min (The load will stay on for the time you set, then go out).
- [Three Mode]:AUTO mode works as an occupancy sensor (Auto ON, Auto OFF). ON and OFF modes allow you to override the sensor and use the sensor switch as a regular light switch.
- [Neutral Wire Required Installation]: 110~240VAC; Incandescent: 300~600W. 3 wires use only.
- [Evergy-saving]:Motion sensor switch uses a passive infrared (PIR) sensor to evergy-saving and lower bills.
Specification
- Input Voltage :110V/AC-240V/AC
- Power Frequency :50/60Hz
- Detection Range :180 degree
- Detection Distance :9m max(less than 24 Celsius)
- Ambient Light:Work in LUX less than 20LUX (switch on the Auto position)
Time-Delay
Min :10sec(more or less) Max:30min
Working temperature :20~40 Celsius
Working Humidity : higher than 93% RH
Rated Load :
1200W/220v (incandescent lamp)
300W/220V (energy-saving lamp)
400W/110V (incandescent lamp)
400W/110V (incandescent lamp)
Power Consumption :
0.45W(work)
0.1W (static)
Note
Time -delay is added continually: When it receives the second in induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
Currently the temperature becomes lower, the sensitivity of the sensor would become higher, so the probability of false triggering the sensor turning on increases. We recommend to reduce the Lux value appropriately to reduce triggering motion sensor. If the switch works error, please don’t worry. Any questions or needs welcome to contact us.
Attention:
1.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition.
2.Don't fix it at a place where there are obstructing material (e.g. Glass, dense clothes) which IR cannot get though.
3.Don't fix it in strong shock or vibration environment.
