Quick Details
-
Brand Name:
-
Honno, Honno
-
Model Number:
-
HWTA3A-150/L75+50; HWTA1; HWTA2; HWTA3
-
Material:
-
Stainless steel
-
Product Name:
-
Temperature Sensor
-
Type:
-
HWTA3A-150/L75+50
-
Application:
-
Industrial Temperature Measuring
-
terminal:
-
box,aviation connector,jack,plug,bare leads
-
stem length:
-
50mm to 50000mm
-
temperature range:
-
0-150℃(customized)
-
Keywords:
-
Pressure Sensor Air Conditioning
-
MOQ:
-
1 PC
-
Accuracy:
-
1.6%
Quick Details
-
Warranty:
-
1 years
-
Theory:
-
Temperature controller, Temperature Sensor, Temperature Transmitter, Thermocouple Thermometer, Other
-
Place of Origin:
-
China
-
Brand Name:
-
Honno, Honno
-
Model Number:
-
HWTA3A-150/L75+50; HWTA1; HWTA2; HWTA3
-
Material:
-
Stainless steel
-
Product Name:
-
Temperature Sensor
-
Type:
-
HWTA3A-150/L75+50
-
Application:
-
Industrial Temperature Measuring
-
terminal:
-
box,aviation connector,jack,plug,bare leads
-
stem length:
-
50mm to 50000mm
-
temperature range:
-
0-150℃(customized)
-
Keywords:
-
Pressure Sensor Air Conditioning
-
MOQ:
-
1 PC
-
Accuracy:
-
1.6%
Product Overview

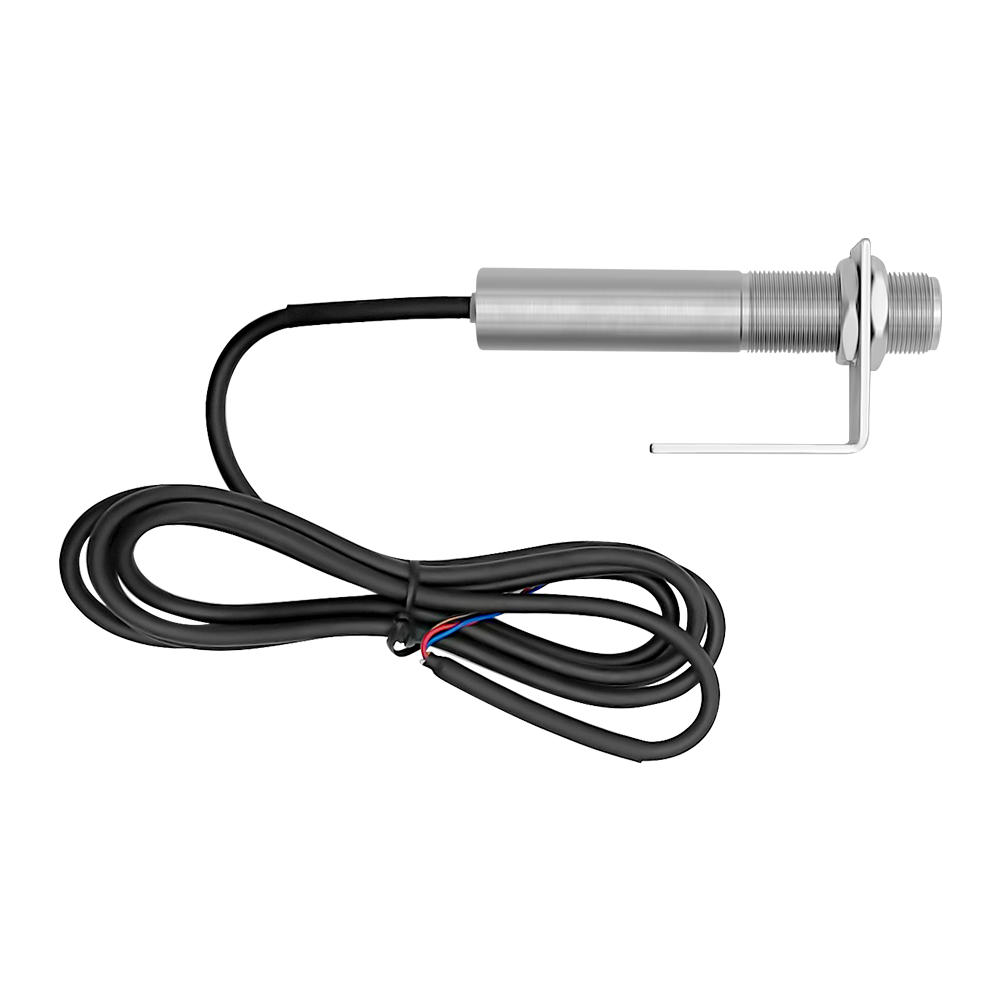

Temperature Sensor
The HWTA1 temperature transmitter has a platinum resistance to sense temperature, which measures the temperature by utilizing the thermal effect of platinum wire's resistance change during temperature changes. It is equipped with a stainless steel protective sleeve to ensure sufficient mechanical strength and corrosion resistance, completing industrial temperature measurement. And convert the resistance signal into a standard current or voltage signal output.
● Wide temperature measurement range, up to -50-300 ℃.
●Compact structure and diverse installation methods.
●Extremely high linearity and repeatability.
●4-20mA output.
●Industrial process temperature measurement is usually used in conjunction with display, recording, and regulating instruments. Suitable for liquid, steam, gas media, and fixed surface temperatures.
●Widely used as supporting equipment in industries such as power, chemical, steel, and ship platinum.
Note
1. There are
many types of temprature sensor
. The following specification is just some examples of our product. Please
contact
me to get
E-catalog and more detailed material
.
2. HOW TO CHOOSE A CORRECT TEMPRATURE METER FOR YOUR DEVICE:
Please feel free to tell us the info about : Measuring Medium and Range, Operating Temprature Range, Signal Output, Power Supply and Wire Connection.
2. HOW TO CHOOSE A CORRECT TEMPRATURE METER FOR YOUR DEVICE:
Please feel free to tell us the info about : Measuring Medium and Range, Operating Temprature Range, Signal Output, Power Supply and Wire Connection.
FEATURES AT A GLANCE
|
Pt100 thermal resistance temperature sensor transmitter industrial
|
|
|
|
Explosion proof grade
|
Exd II CT5Gb
|
|
|
Temperature range
|
-200 to 420 ℃
|
|
|
Sensor
|
Thermal resistance
|
|
|
Application
|
Explosive gas including IIA, IIB, IIC, for liquid/gas/water
|
|
|
Thermal response time (τ0.5)
|
Ø3mm armored diameter<3s
Ø4mm armored diameter<5s Ø5mm armored diameter<8s Ø6mm armored diameter<12s Ø8mm armored diameter<15s |
|
|
Current influence
|
The maximum current should be less than 5mA, the resulting temperature rise should be less than 0.3 ℃
|
|
|
Nominal pressure
|
2.5MPa
|
|
|
Resistance
|
Pt100
|
|
|
Insulation resistance
|
100MΩ
|
|
|
Nominal pressure
|
10MPa
|
|
|
Usage
|
For industrial
|
|
|
Type
|
Anti-explosion
|
|
|
Product name
|
Temperature transmitter
|
|
PRODUCT SPECIFICATIONS
Certifications
PRODUCT CONFIGURATION
Electromagnetic Flowmeter
Heat Enables Mass Flowmeter
Vortex Flowmeter
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q1. What is your terms of packing? A: Generally, ZHYQ brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes
packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms : EXW, FOB, CFR, CIF for your convenient; Payment terms: 100% T/T or credit card or paypal advance before shipment
Q3. How about your delivery time?
A: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the
order.
Q4. What's your MOQ?
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our
clients.
Q6.How long your quotation valid?
A: Our quotation valid for 12 months.
Q7. Can you accept OEM brand?
A: Yes, we can accept the OEM brand without extra charge.
Q8. How long is your product warranty?
A: 7 days replacement and 12 months repair free of charge for quality problem.
Q9. How delivery the goods?
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight
collect, just for your convenience.
Q10. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
