Quick Details
-
Model Number:
-
Cable Wire
-
Application:
-
Surface Temperature Measurement
-
Material:
-
SS304/SS316
-
Certificate:
-
ISO9001
-
Wire Length:
-
Customized
-
Cable Length:
-
1-500m(customized)
-
Wire Diameter:
-
0.3,0.45mm
-
USE:
-
Industrial
-
Principle:
-
Temperature Sensor
-
Accuracy:
-
±1.5℃
-
Temperature Range:
-
0-800 Degree
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CG
-
Model Number:
-
Cable Wire
-
Application:
-
Surface Temperature Measurement
-
Material:
-
SS304/SS316
-
Certificate:
-
ISO9001
-
Wire Length:
-
Customized
-
Cable Length:
-
1-500m(customized)
-
Wire Diameter:
-
0.3,0.45mm
-
USE:
-
Industrial
-
Principle:
-
Temperature Sensor
-
Accuracy:
-
±1.5℃
-
Temperature Range:
-
0-800 Degree
We are a manufacturer of temperature measurement cables. If you want other types of materials or larger quantities, you can contact with us. You will get professional services and preferential prices!
Order this reliable thermocouple wire for use in industrial, research, pharmaceutical, or aerospace applications. Developed using the latest technology, the wire is subjected to a Lengthy Series of electrical, mechanical, and chemical tests-one of the most rigorous quality assurance programs in the thermal instrumentation industry.
they can be used to measure oven, furnace and kiln temperatures. They can be attached to objects like pipes or machine parts. K-type thermocouples can also measure non corrosive liquids.

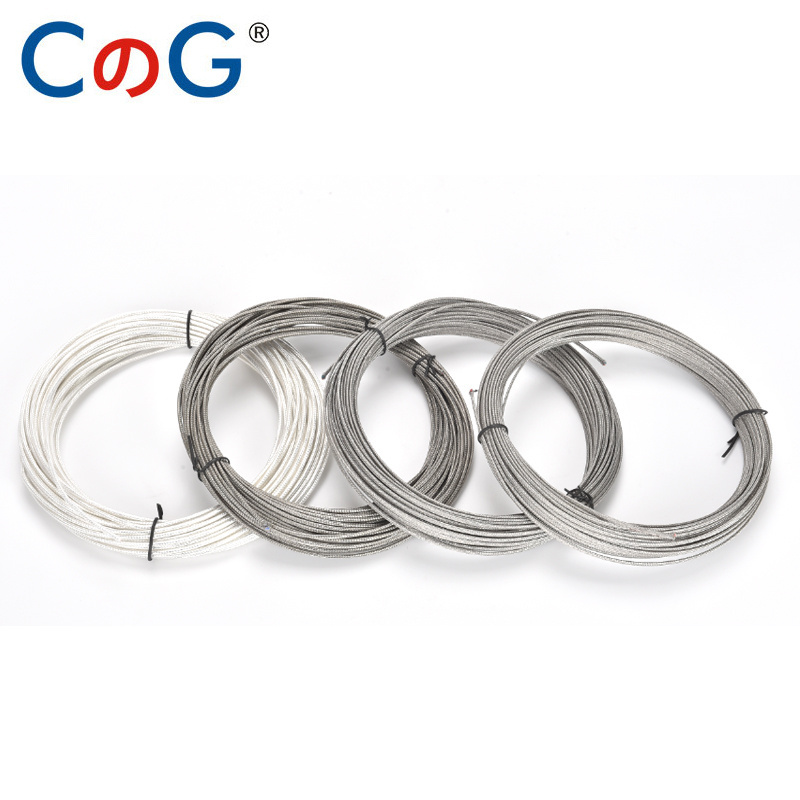

Our high thermocouple wire with braided high temperature fiberglass insulation and coverd with stainless steel braided metal shield. They are single strand wire ,wire is flexible and easy to bend to shape.
Product Name:
Braided metal shield thermocouple wire
Model:
K/ J / E
Insulator:
Stainless steel
Shield:
glass fiber
Core diameter:
2*0.45mm
Accuracy (whichever is greater):
+/- 2.2C or +/- .75%
Temperature measurement Temperature:
K type: 0~1472 °F (0~800 °C) J type: 0~752 °F (0~400 °C)E type: 0~752 °F (0~400 °C)
Core material:
nickel-chromium alloy/nickel silicon alloy (K)
Nickel-chromium 10 alloy/copper-nickel alloy(E)
Iron/copper-nickel alloy (J)
Mark:
red = +, other color = -
Product Name:
PT100 Compensation wire
Insulator:
Stainless steel / PTFE
Shield:
glass fiber / Silver-plated copper
Core diameter:
3*7*0.15mm OD:2.7mm
Temp measurement Temperature:
PT100 type: -328~752 °F (-200 C~ 400 degrees)
Core material:
copper wire
The advantage of stainless steel:
Temperature resistance, anti-wear.
The advantage of PTFE:
anti-corrosion,silver-plated shield layer,good anti-interference,signal.
