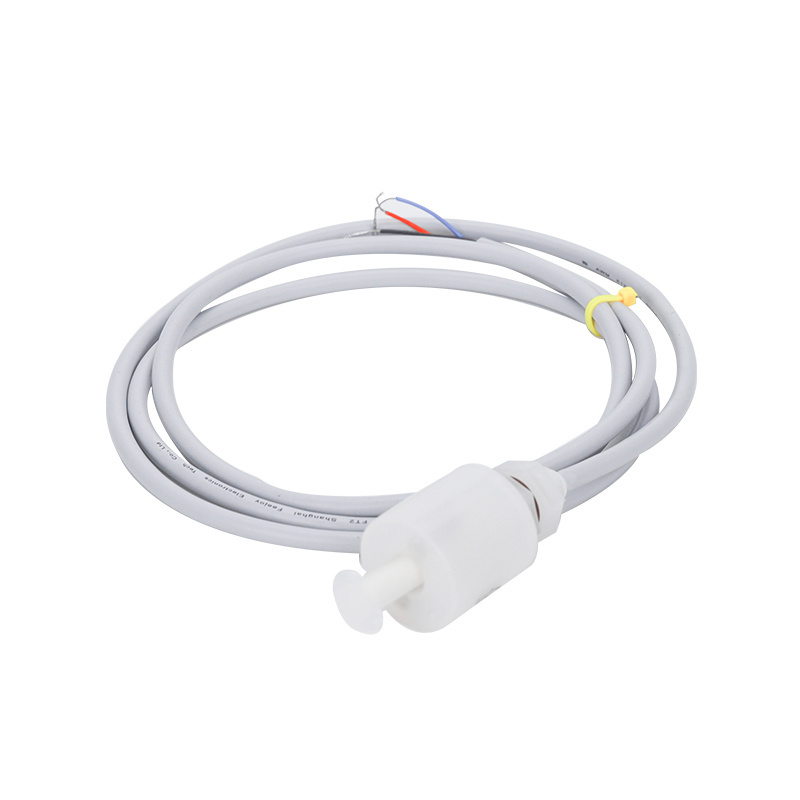

Mini float level switch is widely used in level control and alarm of all kinds of industry such as electronic, electric power, chemical, water treatment, water supply and drainage for its low price, reliable performance and flexible installation method.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FEEJOY
-
Model Number:
-
MF
-
Power:
-
DC50(W)AC70(VA)
-
Max voltage Suggested:
-
DC200 AC240
-
Usage:
-
DC24
-
Starting current:
-
0.7
-
Max current:
-
1A
-
Max pressure:
-
0.5MPa
-
Density:
-
0.7
-
Working temperaTure:
-
-20~80℃
-
Material:
-
304/316
-
Installation method:
-
horizontal
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FEEJOY
-
Model Number:
-
MF
-
Power:
-
DC50(W)AC70(VA)
-
Max voltage Suggested:
-
DC200 AC240
-
Usage:
-
DC24
-
Starting current:
-
0.7
-
Max current:
-
1A
-
Max pressure:
-
0.5MPa
-
Density:
-
0.7
-
Working temperaTure:
-
-20~80℃
-
Material:
-
304/316
-
Installation method:
-
horizontal
The working principle of mini float level switch is direct and simple. Set one point or multi-point of magnetic switch in sealed non-magnetic metal or industrial plastic tube. Fix the float with inner magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and down; utilize the inner magnetic system in the float to trigger the open and close of magnetic switch to operate and control the liquid level. Normal open and close is the state with inserting liquid. Mini float level switch is custom-made product and the switch state can shift in normal condition.
