Quick Details
-
Brand Name:
-
SunSoont
-
Use:
-
FTTH FTTX FTTB Network
-
Warranty Time:
-
2 years
-
Product Name:
-
Sunsoont FTTH Fiber Optic Tool Kit for Installing Fast Connector
-
Product Style:
-
Integrated Optical Power Meter+VFL
-
Fiber port Type:
-
SC/FC/ST
-
Testing Wavelength:
-
850,980,1300,1310,1490,1550,1625nm
-
VFL:
-
10KM
-
Stripper:
-
CFS-3 fiber stripper
-
Dimensions:
-
190*100*48mm
-
Working temperature:
-
-10~+60
-
Application:
-
FTTH FTTB FTTX Network
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
SST-Toolkit-I
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunSoont
-
Use:
-
FTTH FTTX FTTB Network
-
Warranty Time:
-
2 years
-
Product Name:
-
Sunsoont FTTH Fiber Optic Tool Kit for Installing Fast Connector
-
Product Style:
-
Integrated Optical Power Meter+VFL
-
Fiber port Type:
-
SC/FC/ST
-
Testing Wavelength:
-
850,980,1300,1310,1490,1550,1625nm
-
VFL:
-
10KM
-
Stripper:
-
CFS-3 fiber stripper
-
Dimensions:
-
190*100*48mm
-
Working temperature:
-
-10~+60
-
Application:
-
FTTH FTTB FTTX Network

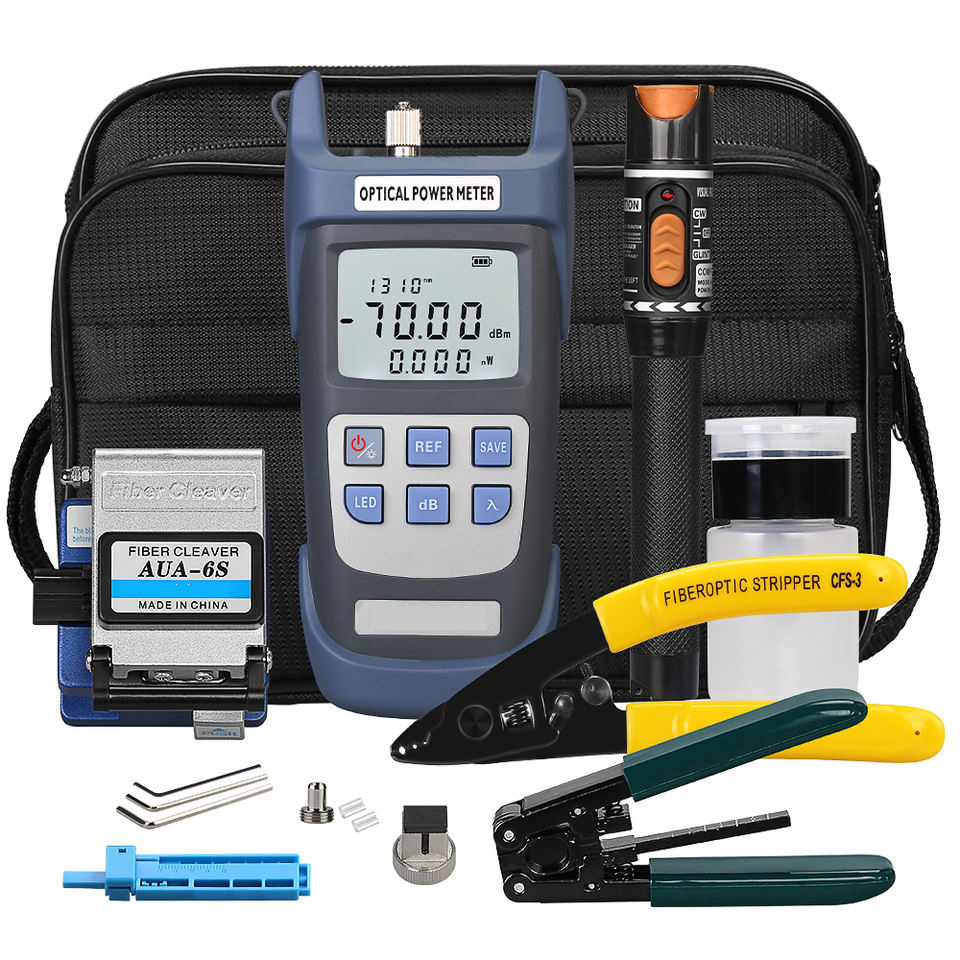

FTTH Fiber Optic Tool Kit for Installing Fast Connector and Fiber Optic Drop Cable CFS-3
Product Description
Fiber Optic FTTH tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction,such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators.
Specification
|
Model
|
Opitcal power meter-A
|
Optical power meter-B
|
|
|
Measurement range
|
-70~+10
|
-50~+26
|
|
|
Range of wave length
|
800~1700
|
|
|
|
Uncertainty
|
±5%
|
|
|
|
Standard wave length (nm)
|
850,980,1300,1310,1490,1550, 1625nm
|
|
|
|
Resolution
|
Linear indication: 0.1% Logarithmic indication: 0.01dBm
|
|
|
|
Working temperature (°C)
|
-10~+60
|
|
|
|
Storage temperature (°C)
|
-25~+70
|
|
|
|
Auto power-off time (min)
|
10min
|
|
|
|
Continuous working hours
|
At least 48 hours
|
|
|
|
Dimensions (mm)
|
190×100×48mm
|
|
|
|
Power supply
|
AA battery
|
|
|
|
Weight(g)
|
400g
|
|
|
Details Images
Item 1: Optical power meter and Visual Fault Locator
5km visual fault locater is integrated with optical power meter
Optional distance: 10km 20km 30km
Color Orange or Blue optional
Default measurement range: -70~+10dBm
Support SC, FC, ST connector
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down
Item 2: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 3: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 4: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 5: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 6: Others
Other accessories, empty alcohol bottle, "L" Tool, FC Adapter, etc
5km visual fault locater is integrated with optical power meter
Optional distance: 10km 20km 30km
Color Orange or Blue optional
Default measurement range: -70~+10dBm
Support SC, FC, ST connector
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down
Item 2: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 3: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 4: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 5: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 6: Others
Other accessories, empty alcohol bottle, "L" Tool, FC Adapter, etc
