Quick Details
-
Drilling Speed:
-
1000~24000rpmStepless speed change
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DNC-430DT
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1000mm*1000mm*1700mm
-
Power (kW):
-
0.55~3.0kw
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
Hot Product
-
Core Components:
-
Complete machine warranty
-
Product name:
-

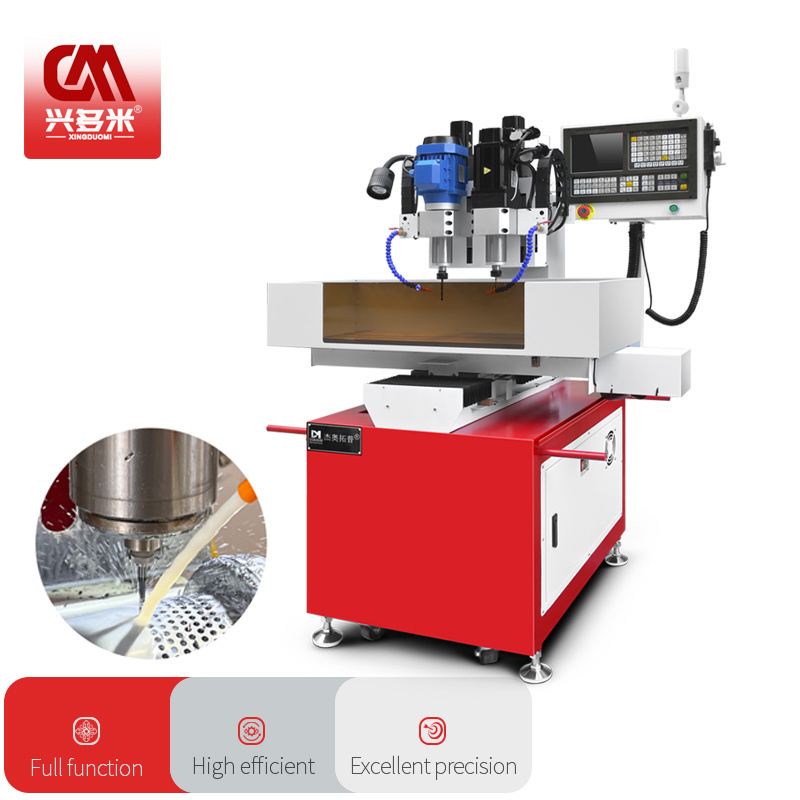

Small CNC drilling and tapping machine
-
X-axis effective travel:
-
400mm(Itinerary can be customized)
-
Y-axis effective travel:
-
300mm(Itinerary can be customized)
-
Z-axis effective travel:
-
120mm(Itinerary can be customized)
-
Borehole range:
-
1~14mm
-
Tapping range:
-
M2~M14
-
Chamfer range:
-
1~14mm
-
Repeated positioning accuracy:
-
±0.02mm
-
Layout form:
-
Vertical type
-
Non-standard customization:
-
support
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
14
-
Range of Spindle Speed(r.p.m):
-
1500 - 24000 r.p.m
-
Drilling Speed:
-
1000~24000rpmStepless speed change
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DNC-430DT
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1000mm*1000mm*1700mm
-
Power (kW):
-
0.55~3.0kw
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
Hot Product
-
Core Components:
-
Complete machine warranty
-
Product name:
-
Small CNC drilling and tapping machine
-
X-axis effective travel:
-
400mm(Itinerary can be customized)
-
Y-axis effective travel:
-
300mm(Itinerary can be customized)
-
Z-axis effective travel:
-
120mm(Itinerary can be customized)
-
Borehole range:
-
1~14mm
-
Tapping range:
-
M2~M14
-
Chamfer range:
-
1~14mm
-
Repeated positioning accuracy:
-
±0.02mm
-
Layout form:
-
Vertical type
-
Non-standard customization:
-
support
Product Paramenters
|
Machine type
|
DNC-430DT
|
|
XYZ three-axis machining stroke0
|
X400mm Y300mm Z120mm
|
|
Spindle speed
|
1500~24000rpm(Can be selected according to demand)
|
|
Spindle taper hole
|
ER20
|
|
Spindle power
|
0.55~3.0KW
|
|
X axis moving speed
|
25m/min
|
|
Y axis moving speed
|
25m/min
|
|
Z axis moving speed
|
25m/min
|
|
Borehole diameter range
|
1~14mm
|
|
Tapping diameter range
|
M2~M14
|
|
Chamfer diameter range
|
1~14mm
|
|
Tool magazine
|
Manual tool change
|
|
Repeated positioning accuracy
|
±0.02mm
|
|
Table size
|
400*280mm
|
|
Programming mode
|
CAD file import/computer programming/manual programming
|
|
System program storage capacity
|
About 10,000
|
|
System external signal control
|
support
|
|
Operating voltage
|
AC 220V/50HZ
|
|
Machine weight
|
Approx. 550KG
|
|
Floor space
|
1000*1000*1700mm
|
Partially processed products
