Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
650 KG
-
Machine name:
-
chubby gorilla bottle filling capping machine
-
Capacity:
-
20-40 bottles/min
-
Filling volume:
-
5-120ml
-
filling nozzle:
-
2
-
capping head:
-
1
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
Quick Details
-
Machinery Capacity:
-
12000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Oil, chubby gorilla bottle filling capping machine
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
650 KG
-
Machine name:
-
chubby gorilla bottle filling capping machine
-
Capacity:
-
20-40 bottles/min
-
Filling volume:
-
5-120ml
-
filling nozzle:
-
2
-
capping head:
-
1
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
YB-YX2
Automatic 10ml 30ml 60ml 100ml 120ml Chubby Gorilla Bottle Filling and Capping Machine V3 Bottle Filling Labeling Machine Line
Products Description
|
Model
|
YB-YX2
|
YB-YX4
|
YB-YX8
|
|
Filing head number
|
2
|
4
|
8
|
|
Capping head number
|
1
|
2
|
2
|
|
Filling volume
|
5-120ml
|
5-120ml
|
5-120ml
|
|
Capacity
|
15-35 bottles/min
|
20-60 bottles/min
|
30-70 bottles/min
|
|
Filling accuracy
|
≤ ±1%
|
≤ ±1%
|
≤ ±1%
|
|
Pass rate
|
≥ 98%
|
≥ 98%
|
≥ 98%
|
|
Power supply
|
1 Ph. AC220V/ 50/60Hz
|
1 Ph. AC220V/50/60Hz
|
1 Ph. AC220V/ 50/60Hz
|
|
Total power
|
2.5 KW
|
2.8 KW
|
3.0 KW
|
|
Net weight
|
About 600kg
|
About 700 kg
|
About 750 kg
|
|
Overall Dimension
|
L2400x W1500x H1800mm
|
L2800x W2000x H1900mm
|
L3200x W1500x H1900mm
|
Machine features:
1. Workflow: bottle feeding→filling→adding inner plug and outer cap→screw capping→self adhesive labeling→ribbon printing (optional)→inkjet printing (optional)→bottle collecting→cartoning (optional).
2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump measuring, accurate measurement, easy to control.
4. Filling system has suction / anti-drip device.
5. Color touch screen display, PLC control system, no bottle no filling/ no adding plug/ no capping.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.
Details Images

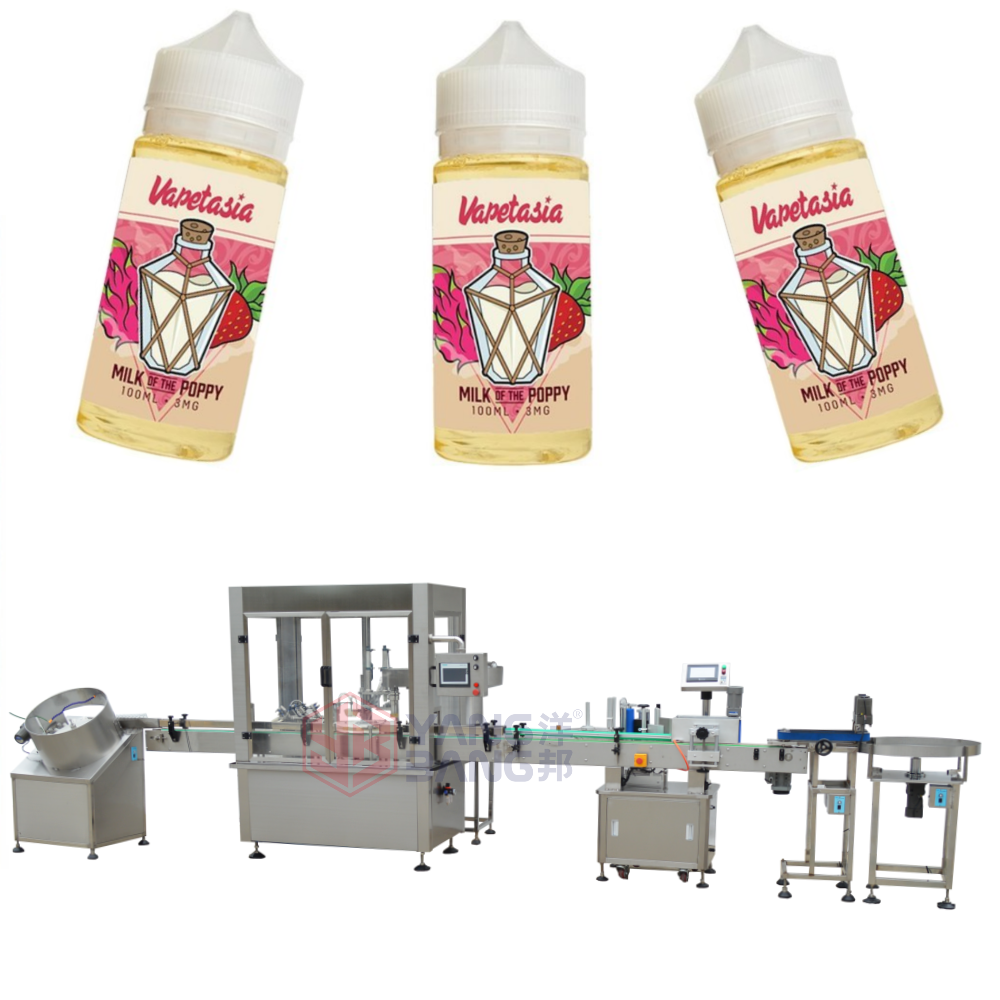

Automatic filling capping and labeling machine for chubby gorilla bottle 10-120ml
Automatic
4/8
heads filling and capping machine line with
cartoning machine
