Quick Details
-
Product Name:
-

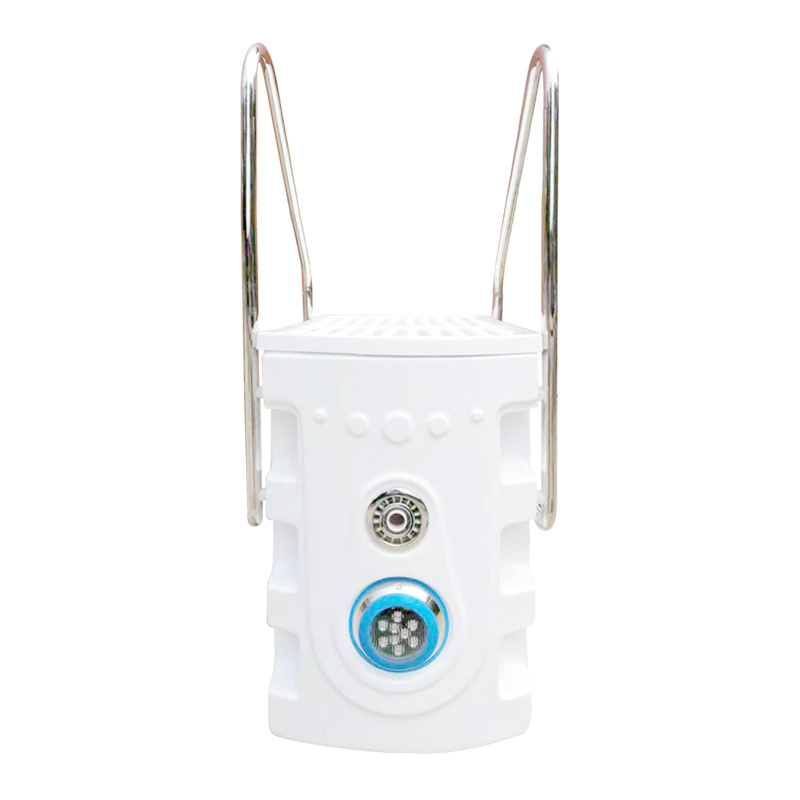

Wall mounted pool filter
-
Flow rate:
-
25m³/hr
-
Main Color:
-
White/blue
-
Power:
-
2hp,220v,50hz/60hz
-
Size:
-
1150x710x1090mm
-
Function:
-
Filter and cleaning
-
Filtration way:
-
Filter bag
-
Filtraion precious:
-
Below 5 u
-
More function:
-
As a ladder, light system,Disinfection,Massage jet
-
Application:
-
Villa pool,School,Club,Hotel,Competition Pool
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Miuswim
-
Model Number:
-
GS-04B
-
Product Name:
-
Wall mounted pool filter
-
Flow rate:
-
25m³/hr
-
Main Color:
-
White/blue
-
Power:
-
2hp,220v,50hz/60hz
-
Size:
-
1150x710x1090mm
-
Function:
-
Filter and cleaning
-
Filtration way:
-
Filter bag
-
Filtraion precious:
-
Below 5 u
-
More function:
-
As a ladder, light system,Disinfection,Massage jet
-
Application:
-
Villa pool,School,Club,Hotel,Competition Pool
Product Description
1. Integrative filter system represents the latest filter technology in the swimming pool industry,Which changes the traditional sand filter system,no need the engine room,the pipe line.
2. Easy to install,with convenient operation,high filter precision and low over head charge.It's the best choice for the swimming pool in office and the villa.
Features & Advanta
g
es
1.
Saving the water source,no need to conside
r
the water leakage
2. P henomenon without the pipeline and backwash.
3. Saving the land resource without the engine room;conformed to the international environmental protection req u irement.
4. Excellent performance . Complete function systems with h igh accuracy
| Technical characteristic: | |
| Dimensions | 1150*710*1090mm |
| Flow rate | 25m3/h |
| Voltage | 220v/50Hz or 60 Hz |
| Precision of filtration bag | ≤5u |
| Operating noise | ≤50Db |
| Material | Acrylic |
| Installation | Wall mounting |
| Accessories: | |
| Filtration pump | 1*2HP |
| Filtration basket with bag | 1 piece |
| Chlorine feeder | 1 piece |
| Light | 1*LED or 100W |
| Time controller | 1 piece |
| Swim jet | 2 pieces |
| Handle rail (S.S.) | 2 pieces |
| Ozone (optional) | 1 piece |
| All in one System | |
| Filtration system | 1 piece |
| Disinfection system | 1 piece |
| Time control system | 1 piece |
| Circle system | 1 piece |
| Lighting system | 1 piece |
