Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GH
-
Model Number:
-
GH76X800MM
-
Diameter:
-
76/89/114, 68-114mm
-
Surface treatment:
-
Hot Dip Galvanized
-
Certificate:
-
ISO9001-2008
-
Length:
-
550-2500mm
-
Type:
-
Ground Screw Anchor
-
Application:
-
Fence Post Support
-
Packing:
-
Steel pallet
-
MOQ:
-
1000 PCS
-
Sample:
-
within 7 days
Quick Details
-
System of Measurement:
-
Metric
-
Material:
-
Steel
-
Capacity:
-
2000KG
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GH
-
Model Number:
-
GH76X800MM
-
Diameter:
-
76/89/114, 68-114mm
-
Surface treatment:
-
Hot Dip Galvanized
-
Certificate:
-
ISO9001-2008
-
Length:
-
550-2500mm
-
Type:
-
Ground Screw Anchor
-
Application:
-
Fence Post Support
-
Packing:
-
Steel pallet
-
MOQ:
-
1000 PCS
-
Sample:
-
within 7 days
factory directly hot dip galvanized ground helical pile
1.Hot-dipped galvanized steel
2.Advanced spiral thread
3.Suitable for all kinds of soild
4.Firm Welding
Widely used in construction to fasten and install the fence post, shaky board room, metal wire mesh, Flag poles, Traffic signs ,Bill board,sheds,tent and so on.

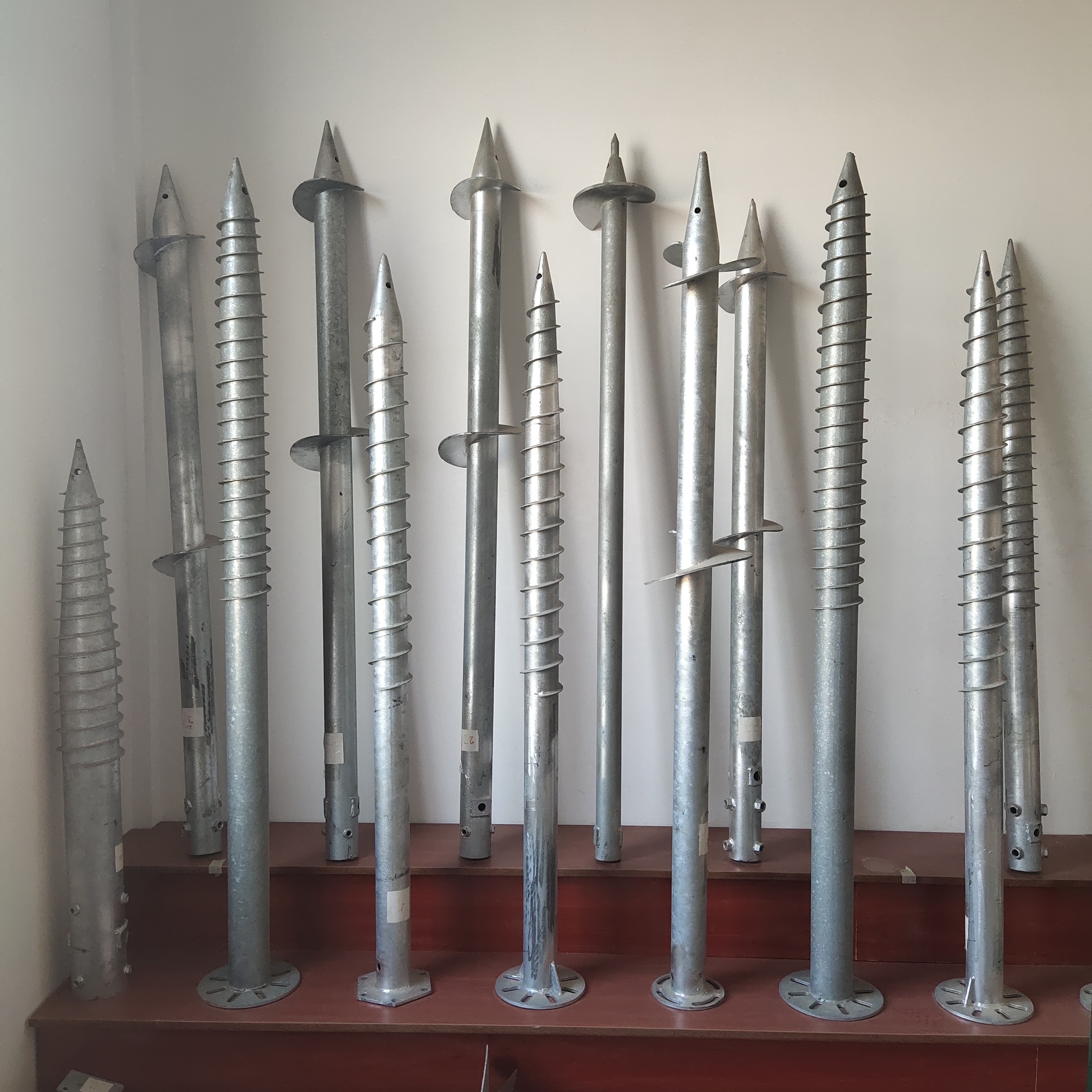

Picture of ground screw anchor
|
|
size information
WITH FLANGE
| Specification | Pipe Dia mm | Length mm | Flange Size mm | Pipe thickness mm | Weight(m,kg) |
| GH76X1200-200 | 76MM | 1200 | 220X8 | 3/4 | 9.4 |
| GH76X1600-220 | 1600 | 220X8 | 11.8 | ||
| GH76X1800-220 | 1800 | 220X8 | 15.98 | ||
| GH76X2000-220 | 2000 | 220X8 | 16.4 | ||
| GH76X2500-220 | 2500 | 220X8 | 19.9 | ||
| GH76X3000-220 | 3000 | 220X8 | 23.3 | ||
| GH88.9X1200-220 | 88.9MM | 1200 | 220X8 | 12 | |
| GH88.9X1600-220 | 1600 | 220X8 | 15 | ||
| GH88.9X2000-220 | 2000 | 220X8 | 17.9 | ||
| GH88.9X2500-220 | 2500 | 220X8 | 21.6 | ||
| GH88.9X3000-220 | 3000 | 220X8 | 25.3 | ||
| GH114X1200-220 | 114MM | 1200 | 220X8 | 13.1 | |
| GH114X1600-220 | 1600 | 220X8 | 16.84 | ||
| GH114X1800-220 | 1800 | 220X8 | 18.48 | ||
| GH114X2000-220 | 2000 | 220X8 | 20.33 |
| Specification | Pipe Dia mm | Dia mm(outer) | weight kg |
| 76x1200-T3 | 3 | 76 | 7.60 |
| 76X1600-T3 | 9.75 | ||
| 76X1800-T3 | 10.80 | ||
| 76X2000-T3 | 11.90 | ||
| 76x1000-T3.5 | 3.5 | 7.20 | |
| 76X1200-T3.5 | 7.60 | ||
| 76X1600-T3.5 | 11.10 | ||
| 76X1800-T3.5 | 12.30 | ||
| 76X2000-T3.5 | 13.60 | ||
| 89x1200-T3 | 3 | 89 | 9.00 |
| 89X1600-T3 | 11.40 | ||
| 89X1800-T3 | 12.75 | ||
| 89X2000-T3 | 14.00 | ||
| 89X1200-T3.5 | 3.5 | 10.10 | |
| 89X1600-T3.5 | 13.10 | ||
| 89X1800-T3.5 | 14.50 | ||
| 89X2000-3.5 | 16.00 |
packing for ground screw anchor
P rocess Step 1:
Cutting the material of hollow pipe as client ’ s length requirement.
P rocess Step 2:
dril ling holes on the upper end.
P rocess Step 3 :
Sealing edge--- Make the pipe heated and s o ftened in tail end with heating machine.
Put the heat pipe into the pipe-shrinking machine promptly to make the tail end into cone-shape.
P rocess Step 4:
Welding screw spiral-- .Use the automatic welding machine to welding the screw spiral for spiral surround the whole pipe automatically and most effectively.
P rocess Step 5;
Testing the welding condition.
P rocess Step 6 :
Galvanizing--- Hot-dip Galvanization --put the welding well ground screw to the galvanizing Zinc.
P rocess Step 7 :
Testing the galvanizing condition.
P rocess Step 8:
Packing on steel pallet for shipping .
