Quick Details
-
Type:
-
AC Surge Protector
-
Certificates:
-
GB18802, IEC61643-1,CE,LEC 66143-1/EN 61643-11)
-
Working Voltage Un(DC):
-
230/400V,AC
-
Max discharge current Imax:
-
50~150kA
-
Norminal discharge current In:
-
25~100kA
-
Continue operating Voltage Uc(DC):
-
275/320/385/440V
-
Combination type:
-
1+N-PE,2+N-PE,3+N-PE
-
Response time:
-
<25ns
-
Brand:
-
Suntree,OEM,ODM
-
Gurantee period:
-
2 years
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SUP1
-
Type:
-
AC Surge Protector
-
Certificates:
-
GB18802, IEC61643-1,CE,LEC 66143-1/EN 61643-11)
-
Working Voltage Un(DC):
-
230/400V,AC
-
Max discharge current Imax:
-
50~150kA
-
Norminal discharge current In:
-
25~100kA
-
Continue operating Voltage Uc(DC):
-
275/320/385/440V
-
Combination type:
-
1+N-PE,2+N-PE,3+N-PE
-
Response time:
-
<25ns
-
Brand:
-
Suntree,OEM,ODM
-
Gurantee period:
-
2 years

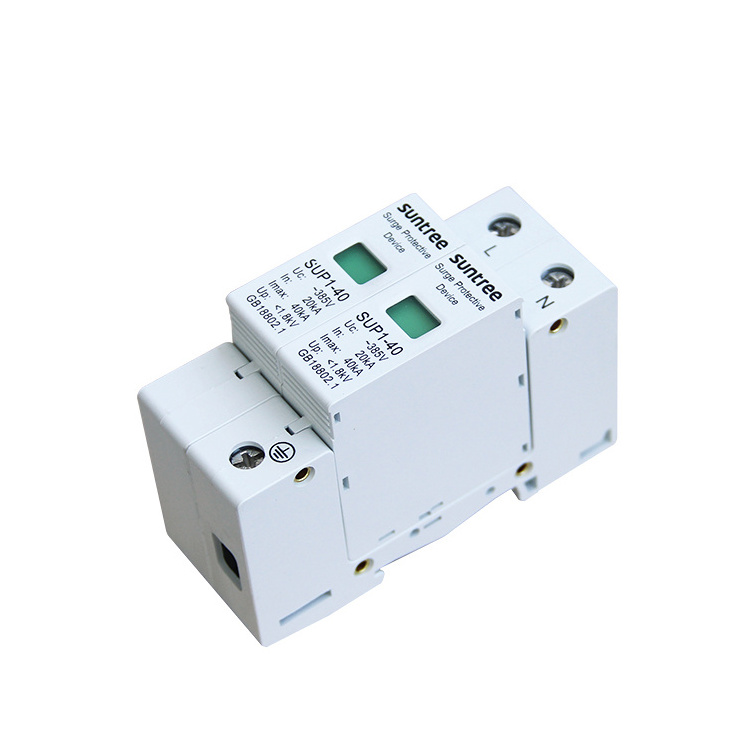

Product Description
Product parameters
|
Type
|
SUP1
|
|
|
|
|
||||
|
Protection level B,C,D Grade
|
D,C,B
|
|
|
|
|
||||
|
Rated Operating Voltage Un(V)
|
380V/220V
|
|
|
|
|
||||
|
Max continuous operating voltage Uc/V
|
275V
|
320V
|
385V
|
385V
|
420V
|
||||
|
Voltage protection level up(KV)
|
≤1.0
|
≤1.2
|
≤1.8
|
≤2.0
|
≤2.8
|
||||
|
Maximum discharge current Imax(8/20μs)KA
|
5
|
10
|
20
|
30
|
60
|
||||
|
Nominal discharge current In(8/20μs)KA
|
10
|
20
|
40
|
60
|
100
|
||||
|
Response times
|
≤25
|
|
|
|
|
||||
|
Test Standard
|
IEC61643.1, GB18802.1
|
|
|
|
|
||||
|
Operating Environment
|
-40 degree to + 85 degree
|
|
|
|
|
||||
|
Max Connection Line
|
35mm2 hard wire/35mm2 strand wire copper line
|
|
|
|
|
||||
|
Recommended Connection Line
|
16mm2 hard wire/25mm2 strand wire copper line
|
|
|
|
|
||||
|
keyword
|
ac surge protection device
|
|
|
|
|
||||
