Quick Details
-
Brand Name:
-
YUGONG
-
Voltage:
-
3P-380V(50 HZ)
-
Power:
-
4000w
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450kg
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Processing range:
-
16-40mm
-
Rotating speed:
-
40-62r/min
-
Maximum processing length:
-
80mm
-
Work efficiency:
-
3-4cm/min
-
Certification:
-
iso
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Rebar thread Rolling
-
Production Capacity:
-
100%
-
Brand Name:
-
YUGONG
-
Voltage:
-
3P-380V(50 HZ)
-
Power:
-
4000w
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450kg
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Processing range:
-
16-40mm
-
Rotating speed:
-
40-62r/min
-
Maximum processing length:
-
80mm
-
Work efficiency:
-
3-4cm/min
-
Certification:
-
iso

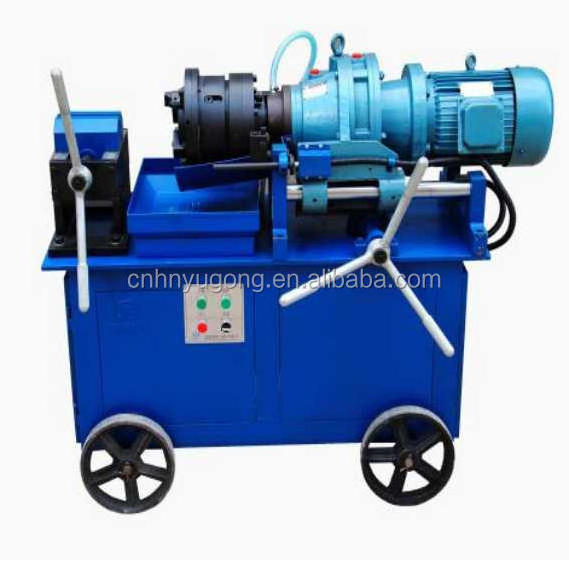

Rebar thread rolling machine is mainly applied to peel rebar rib first, then roll parallel thread on rebar end, after that, two threaded rebar sectors could be connected by coupler. It is a necessary machine for rebar joint.
In addition, it is also applied to roll threads on round steel bar, anchor rod, or other equivalent materials.
|
Technical Parameter of Rebar Thread Rolling Machine |
|
|
Model |
HGS -40 |
|
Rebar diameter |
1 4 -40mm |
|
Max. process length |
80mm |
|
Work schedule |
80mm |
|
62-80 r/min |
|
|
Motor power |
4kw |
|
Voltage |
380v |
|
3 0 -4 0m m/min |
|
|
Dimension |
1500*600*1000mm |
|
Weight |
450kg |
Roller
|
Technical Parameter of Roller |
|||||||
|
Model |
16 |
18 |
20 |
22 |
25 |
28 |
32 |
|
Outer diameter (mm) |
24 |
27 |
31 |
33 |
37 |
41 |
47 |
|
Length(mm) |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
|
Quantity per bag (pcs) |
280 |
200 |
150 |
130 |
100 |
80 |
60 |
1.O ne-time clamping reinforced rib peeling rolling thread can be completed.
2. Both right-handed threads & left-handed threads could be processed with one machine head.
3 . Processing speed, high degree of automation .
4.C onvenient operation, service life is long,
5.The t hread rolling round joint additional cost is low.
6 . Environment-friendly, safe, no environment and weather restrictions.
Working Picture
