Model No.: OFO6ZAT
1 Sensor: Hall Effect ; Signal Output
2 Pipe Connection: G3/4''
3 Product Material: Nylon + glass fiber
4 Operating Range: DC5~24V
4 Working Current: >10mA
6 Rated Voltage: DC5V
7 Flow Range: 30-3000L\H
8 Accuracy: F=1.2*Q ±1% (Q=L/min=60) 【F =1.2x60 = 72 pulses/liter/minute】
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
FULL SET (LCD-M + OFO6ZAT)
-
Product Name:
-
hot oil flow meter
-
Operating Voltage Range:
-
DC24V±8V/ 1A
-
Solenoid Valve Operating Voltage Range:
-
DC12V / 0.3A-0.5A (Normal closed)
-
Flow Probe Voltage:
-
DC5V
-
Quantitative Range:
-
0.1-9999L/min
-
Charging Method:
-
Power charger
Quick Details
-
Type:
-
Multi-jet meters, Compound meters, Turbine meters, Electromagnetic meters, Prepaid water meters
-
Place of Origin:
-
China
-
Brand Name:
-
Dijiang / SEA
-
Model Number:
-
FULL SET (LCD-M + OFO6ZAT)
-
Product Name:
-
hot oil flow meter
-
Operating Voltage Range:
-
DC24V±8V/ 1A
-
Solenoid Valve Operating Voltage Range:
-
DC12V / 0.3A-0.5A (Normal closed)
-
Flow Probe Voltage:
-
DC5V
-
Quantitative Range:
-
0.1-9999L/min
-
Charging Method:
-
Power charger

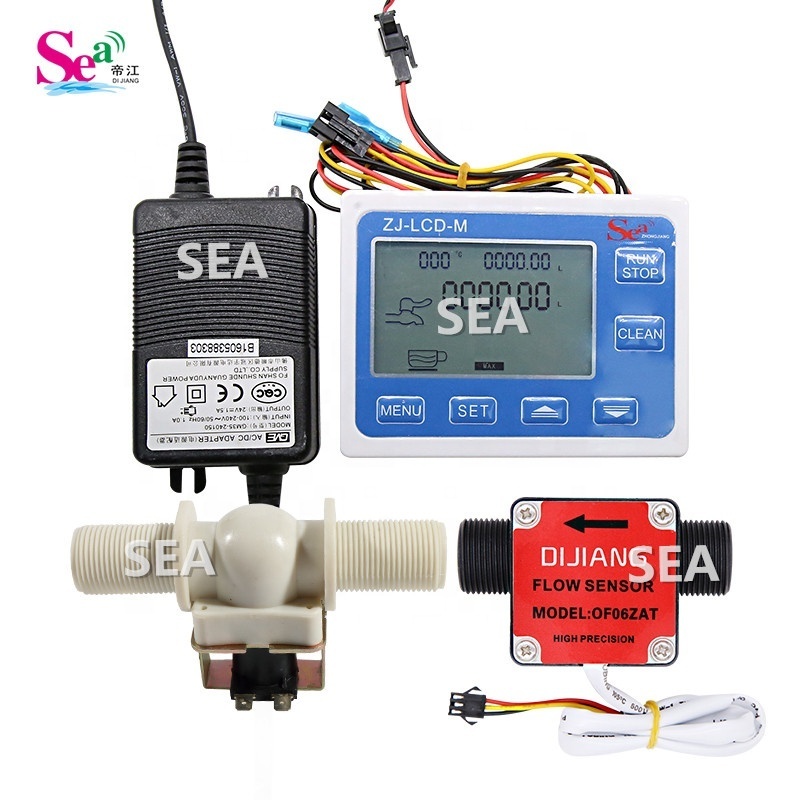

QUANTITATIVE MEASUREMENT INSTRUMENT
LCD-M
《cumulative flow and instantaneous flow, single quantitative and total quantitative,
and water temperature detection 》
USE IN MANY KINDS OF INDUSTRIAL LIQUID FLOW QUANTITATIVE MANAGEMENT
All Raw Materials Conform To ROHS Standard
Adopt advanced single chip microcomputer technology.
Connected with a NPN signal flow sensor and a solenoid valve to be a liquid flow control system.
K value of sensor model OFO6ZAT：001.20 LPM
1 Pipe Connection: G3/4''
2 Operating Voltage: DC12V /24V/ AC220V
3 Working Current: 420mA
4 Coil Resistance: 27.7Ω
5 Rated Power: 5W
6 Medium Temperature: 0 ~ 100℃
7 Water Pressure: 0.02 ~ 0.8MPA
