- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
130*53*105cm
-
Weight:
-
315 kg
-
Name:
-
Pellet machine
-
Application:
-
Producing Animal Feeds Pellets
-
Color:
-
Customer Required
-
Capacity:
-
80-100 kg/h
-
Pellet size:
-
2mm-6mm
-
Machine type:
-
Flat die
-
Die and roller material:
-
42CrMo
-
Driven by:
-
PTO type
-
Roller:
-
2 rollers
-
Tractor engine:
-
≥ 8 hp
Quick Details
-
Max. Capacity:
-
100kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ainuok
-
Dimension(L*W*H):
-
130*53*105cm
-
Weight:
-
315 kg
-
Name:
-
Pellet machine
-
Application:
-
Producing Animal Feeds Pellets
-
Color:
-
Customer Required
-
Capacity:
-
80-100 kg/h
-
Pellet size:
-
2mm-6mm
-
Machine type:
-
Flat die
-
Die and roller material:
-
42CrMo
-
Driven by:
-
PTO type
-
Roller:
-
2 rollers
-
Tractor engine:
-
≥ 8 hp

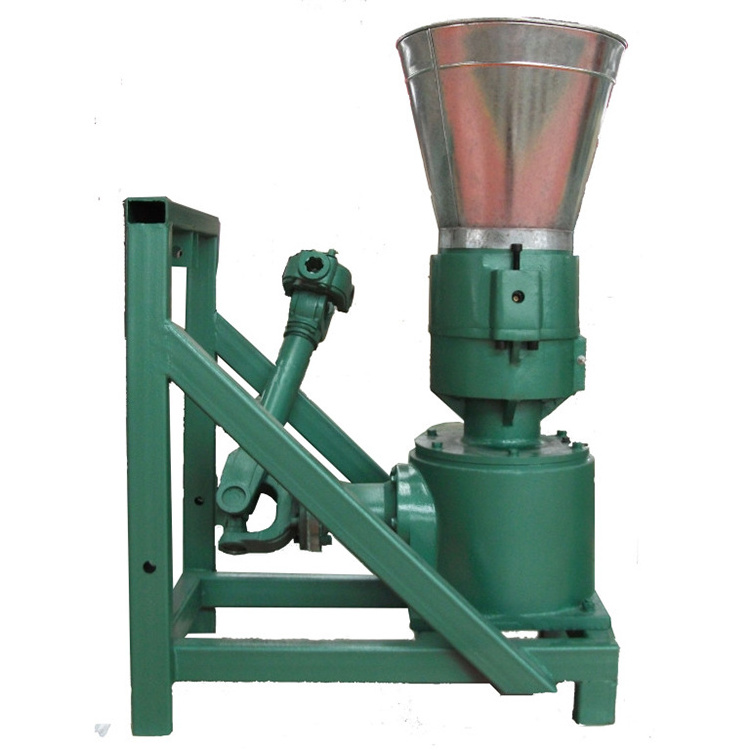

PTO tractor drive sheep feed granulator feed pellet making machine for pig
1 . Feed pellet machine (also known as: granule feed machine, feed granule machine, granule feed molding machine), belongs to the feed granule equipment. It is a feed processing machine with corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into granules after grinding raw materials.Feed pellet machine is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms.
2
.
Electric
,
Desel
engine,
PTO
drive and
Gasoline
type are for option,please
Send Inquiry
to get production details and latest quotation list.
Raw material
1.sawdust, rice husk,straw, grass,crop stalks etc. biological fertilizer, animal manure
2.Moisture required: 10-15%
3.Size:3-5 mm
Final Pellet:
The Pellet Diameter is Dia 2.5mm, 4mm, 6mm, 8mm, 10mm, 12mm, etc,At option.
1.
Widened feed inlet
, convenient for feeding
2.
Pure copper motor
, high power and low noise
3.
Coupling rotation
, low friction, less transmission ratio loss than belt
4.
Stainless steel coupling
,high temperature quenching treatment
5. Made of
Chromium-manganese steel
shaft&grinding disc, high temperature quenching treatment
6.
Length of
feed pellets
can be adjusted
at any time
7.
Grinding disc
size
from 2mm to 12mm
for choice
8.
Nylon casters
, wear-resistant&durable
9.
Oil window&oil dipstick
, accurately detect the oil level
10.
3 layers
of spray
paint
, 20 years anti-rust
11.
Adjust the distance
between the roller&the disc, keep the nuts on both sides balanced, so as not to damage the pressure roller grinding disc
12.
Widened discharge port
, more smoother, and the baffle prevents the feed from falling
We also provide full feed line
Send Inquiry Now
Click
Send Inquiry
below or
Contact Supplier
at right,
Write your requirements down,
Latest
Catalogue with Full Prices
will be sent right now.
|
Model/ Specification |
Power(kw) | Capacity(kg/h) | Single-machine Weight(kg) | Gross Weight(kg) | Package Dimensions(mm) |
| AKK-125 | 3 | 80-100 | 35 | 95 |
1100*350*700 |
| AKK-150 | 4.5 | 100-150 | 40 | 98 | 1150*350*800 |
| AKK-210 | 7.5 | 200-300 | 110 | 280 | 1150*450*950 |
| AKK-260 | 15 | 400-500 | 190 | 315 | 1300*530*1050 |
| AKK-300 | 22 | 500-700 | 400 | 600 | 1450*620*1200 |
| AKK-360 | 22 | 700-800 | 600 | 795 | 1600*670*1450 |
| AKK-400 | 30 | 900-1200 | 750 | 1000 | 1600*670*1450 |
Tips: As the freight changes frequently, please confirm the latest freight with us before ordering.
n
Package: 1set/ctn/plastic wrap/wooden box.
Delivery: Within 15 days after order confirmed.
Payment: T/T, Western Union, Paypal, Trade Assurance payments.
Send Inquiry Now
Click
Send Inquiry
below or
Contact Supplier
at right,
Write your requirements down,
Latest
Catalogue with Full Prices
will be sent right now.
Founded in 2010
, Anyang Ainuok Machinery Equipment Co., Ltd is specialised in the research, development, production and sales of
Wood Crusher Machine, Feed Pellet Machine, Charcoal Machine and Briquette Machine
for more than 12 years.
We have got quality certifications of
ISO9001, SGS, and CE
etc.
Machine color, logo, design, package, carton mark, manual etc can be customized
! With a
production ability of 5000 sets
per month, AINUOK is the largest crusher and pellet factory in China.
Wood Crusher Machine, Feed Pellet Machine, Charcoal Machine and Briquette Machine have been exported to England, Russia, Sweden, Poland, Romania, Malaysia, Indonesia, Vietnam etc 120 countries and districts . Warmly welcome clients at home and abroad to visit Ainuok company.
