Quick Details
-
Dimension(L*W*H):
-
3800X1500X2200mm
-
Weight:
-
4500 KG
-
Mobility:
-
crawler
-
Product name:
-
water drilling rig
-
Application:
-
Hole Hammer Drill Rig
-
Key word:
-
drilling rig
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
Advantage:
-
Low Consumption High Efficiency
-
Key words:
-
Tractor Mounted Water Drilling Machine
-
Air consumption:
-
17-31m3/min
-
Uses:
-
water well and DTH
-
Feature:
-
Multi-functional
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
3800X1500X2200mm
-
Weight:
-
4500 KG
-
Mobility:
-
crawler
-
Product name:
-
water drilling rig
-
Application:
-
Hole Hammer Drill Rig
-
Key word:
-
drilling rig
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
Advantage:
-
Low Consumption High Efficiency
-
Key words:
-
Tractor Mounted Water Drilling Machine
-
Air consumption:
-
17-31m3/min
-
Uses:
-
water well and DTH
-
Feature:
-
Multi-functional

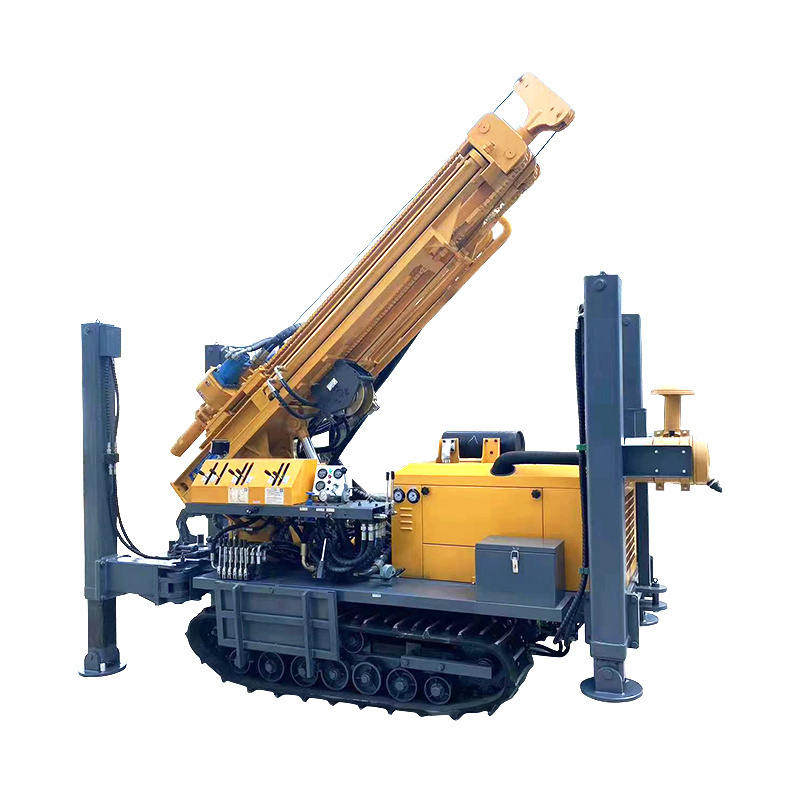

Pneumatic water well borehole drilling rig machine YG-FY180
Pneumatic dth drilling rig mainly drilling rock must connect with air compressor . it has fast drilling speed .
Pneumatic dthdrilling rig can drill 20-40m per hour . high drilling effective .the engine it is 55kw ,more powerful .
Pneumatic water borehole drilling rig it has 4 high hydraulic leg which can lifting 1.6m height can easy loading on the truck . Air water well drilling rig machine is rubber crawler . hydraulic pump and valve both use import brand .
Pneumatic water well borehole drilling rig tower height is 3m . 18ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch . Hydraulic pump can be
change to Famous brand .
diesel engine also can be changed according your requirements . It can add mud pump and foam pump .
We have enough experience for South America ,Southeast Asia,North America ,Africa etc .
Specification
|
Model
|
YG-FY180
|
|
Drilling diameter
|
140-254mm
|
|
Max drilling depth
|
180m
|
|
One time advance length
|
3.4m
|
|
Walking speed
|
2.5km/h
|
|
Climbing angles
|
30max
|
|
Diesel engine power
|
55KW
|
|
Using air pressure
|
1.7-2.5Mpa
|
|
Air consumption
|
17-31m3/min
|
|
Drilling rod diameter
|
76mm
|
|
Drilling rod length
|
3m/pc
|
|
Swing speed
|
45-65rpm
|
|
Swing torque
|
3200-4600N.M.
|
|
Weight
|
4500KG
|
|
Size
|
3800X1500X2200mm
|
