The main technical feature is that the stems are removed after crushing, the speed can be adjusted according to the different grape varieties, the gap between the crushing rollers can be adjusted, and the adaptation to grape varieties is strengthened.The parts in contact with the grapes and the exposed parts of the whole machine are made of stainless steel, which meets the standards of food-grade enterprises.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
customized
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
2600*800*1600mm
-
Weight:
-
500 KG
-
Output product name:
-
juice
-
Product name:
-
grape crushing stem stalk remove machine
-
Application:
-
Commercial Juicer Extractor
-
Material:
-
304 Stainless Steel
-
Capacity:
-
1000kg/h
-
MOQ:
-
1 Set
-
Package:
-
Wooden Case
-
Color:
-
Stainless Steel Color
-
Final product:
-
Fruit Jam Puree Pulp
-
Feature:
-
High Efficient
-
Advantage:
-
Easy Operation
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Model Number:
-
GD-1000
-
Brand Name:
-
Antler
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
customized
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
2600*800*1600mm
-
Weight:
-
500 KG
-
Output product name:
-
juice
-
Product name:
-
grape crushing stem stalk remove machine
-
Application:
-
Commercial Juicer Extractor
-
Material:
-
304 Stainless Steel
-
Capacity:
-
1000kg/h
-
MOQ:
-
1 Set
-
Package:
-
Wooden Case
-
Color:
-
Stainless Steel Color
-
Final product:
-
Fruit Jam Puree Pulp
-
Feature:
-
High Efficient
-
Advantage:
-
Easy Operation
Product Description

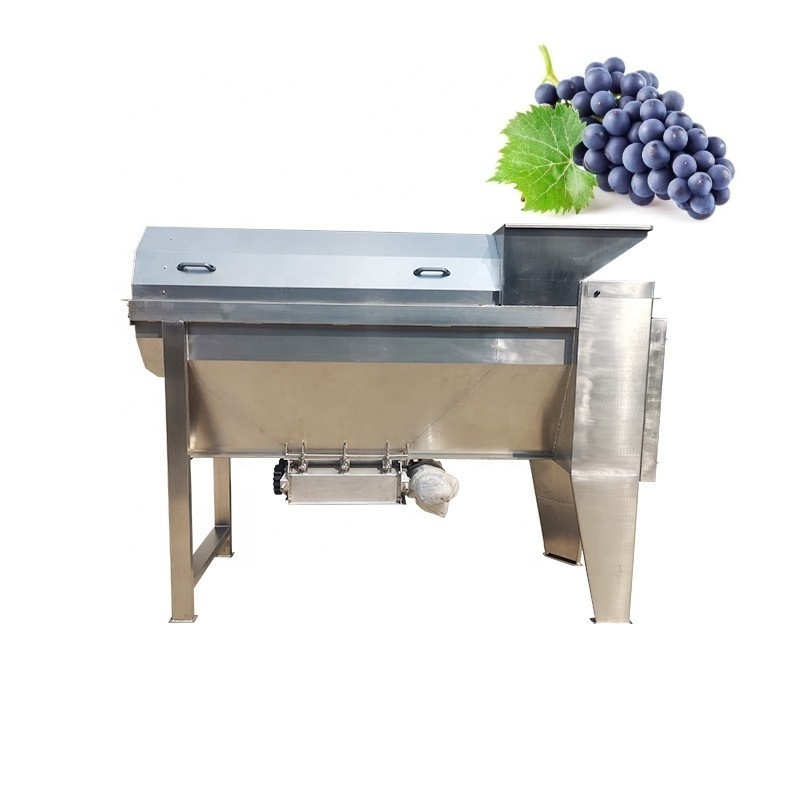

Main structure of grape destemming crusher:
This machine is mainly composed of crushing, destemming, frame and other parts.
1. The crushing device is located at the lower end of the feed box and consists of two crushing rollers. The gap between
the two rollers can be adjusted between 5-15mm, which is determined according to the grape variety.
2. Destemming device: It is composed of destemming shaft and destemming half screen. The stem-removing shaft is
equipped with spirally distributed stem-removing leaves. The stem-removing semi-sieve is formed by punching a
stainless steel plate, and its main function is to separate the fruit and stems and discharge the stems and branches out
of the machine.
1. The crushing device is located at the lower end of the feed box and consists of two crushing rollers. The gap between
the two rollers can be adjusted between 5-15mm, which is determined according to the grape variety.
2. Destemming device: It is composed of destemming shaft and destemming half screen. The stem-removing shaft is
equipped with spirally distributed stem-removing leaves. The stem-removing semi-sieve is formed by punching a
stainless steel plate, and its main function is to separate the fruit and stems and discharge the stems and branches out
of the machine.
Grapes separating and crushing machineGrape washing and sorting machine
Grape processing machine
Grape processing machine
Specification
|
No.
|
Item
|
Inspecification
|
|
1
|
Total power
|
0.75kw
|
|
2
|
Voltage
|
380v
|
|
3
|
Main material
|
304 Stainless Steel
|
|
4
|
Warranty of core components
|
1 Year
|
|
5
|
Processing capacity
|
1000kg/h
|
|
6
|
External dimensions
|
2200*600*900mm
|
|
7
|
Place of Origin
|
China
|
|
8
|
Application fields
|
Fruit processing plant, Vegetable processing plant, Beverage Factory
|
Features:
1. Spiral quantitative feeding. Destemmed first and then broken.
2. In addition to the stem shaft and the stem-removing sieve can achieve stepless speed regulation, the length of the stem-revolving sieve has been lengthened, which can be adapted to the processing of various grape varieties, and thefruit stems outside the machine are less fruity.
2. In addition to the stem shaft and the stem-removing sieve can achieve stepless speed regulation, the length of the stem-revolving sieve has been lengthened, which can be adapted to the processing of various grape varieties, and thefruit stems outside the machine are less fruity.
3. This product is made of stainless steel. The crushing device is located at the lower part of the de-stemming rotary screen.The crushing roller is made of high elastic rubber. The crushing device and the machine body are connected in a quick-opening manner.
4. The slurry pump is a single screw pump, installed at the bottom of the crushing device A supplier of grape destemming crushers, a large supply of reliable quality grape destemming crushers.
4. The slurry pump is a single screw pump, installed at the bottom of the crushing device A supplier of grape destemming crushers, a large supply of reliable quality grape destemming crushers.
