Quick Details
-
Warranty(Year):
-
3-Year
-
Application:
-
Supermarket,Mall,Stores
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
100-240V AC
-
Lamp Luminous Flux(lm):
-
2000
-
Model Number:
-
LDT-20W-RC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ECO WF
-
Product name:
-
Led Recessed Downlight
-
Power Factor:
-
>0.9
-
Power Efficiency:
-
>0.9
-
Beam Angle:
-
30°
-
Hole Size:
-
120mm
-
Product Diameter:
-
135mm
-
Product Height:
-
103mm
-
LED Chip:
-
COB Bridgelux
-
Horizontal Rotation Angle:
-
360°
-
Stretch Angle:
-
90°
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Ceiling Recessed
-
Warranty(Year):
-
3-Year
-
Application:
-
Supermarket,Mall,Stores
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
100-240V AC
-
Lamp Luminous Flux(lm):
-
2000
-
Model Number:
-
LDT-20W-RC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ECO WF
-
Product name:
-
Led Recessed Downlight
-
Power Factor:
-
>0.9
-
Power Efficiency:
-
>0.9
-
Beam Angle:
-
30°
-
Hole Size:
-
120mm
-
Product Diameter:
-
135mm
-
Product Height:
-
103mm
-
LED Chip:
-
COB Bridgelux
-
Horizontal Rotation Angle:
-
360°
-
Stretch Angle:
-
90°

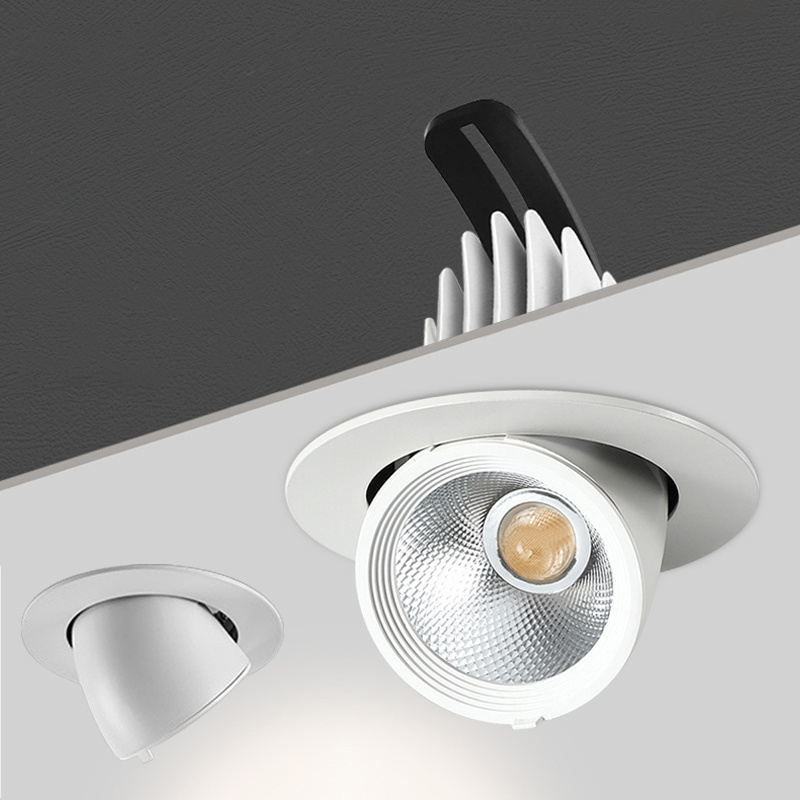

Recessed 360 degree adjustable 20w 30w 45w gimbal LED downlight for commercial lighting
Product Description
|
Recessed Led Gimbal Ceiling Downlight Specification
|
|
|
|
|
|
|
||||||
|
Model No.
|
LDT-7W-RC
|
LDT-10W-RC
|
LDT-15W-RC
|
LDT-20W-RC
|
LDT-30W-RC
|
LDT-45W-RC
|
||||||
|
Power
|
7W
|
10W
|
15W
|
20W
|
30W
|
45W
|
||||||
|
Input Voltage
|
100-240V AC
|
|
|
|
|
|
||||||
|
LED Chip
|
COB Bridgelux
|
|
|
|
|
|
||||||
|
Beam Angle
|
15°/30°/60°
|
|
|
|
|
|
||||||
|
Color Redering Index
|
>80ra
|
|
|
|
|
|
||||||
|
Lumen Output
|
630-700lm
|
900-1000lm
|
1350-1500lm
|
1800-2000lm
|
2700-3000lm
|
4050-4500lm
|
||||||
|
CCT
|
3000K/4000K/6000K
|
|
|
|
|
|
||||||
|
Size
(mm) |
D90*H70
|
D90*H70
|
D110*H85
|
D135*H103
|
D165*H132
|
D165*H132
|
||||||
|
Cut-out Size
|
75-80
|
75-80
|
95
|
120
|
150
|
150
|
||||||
