Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CBSN-315
-
Product Name:
-

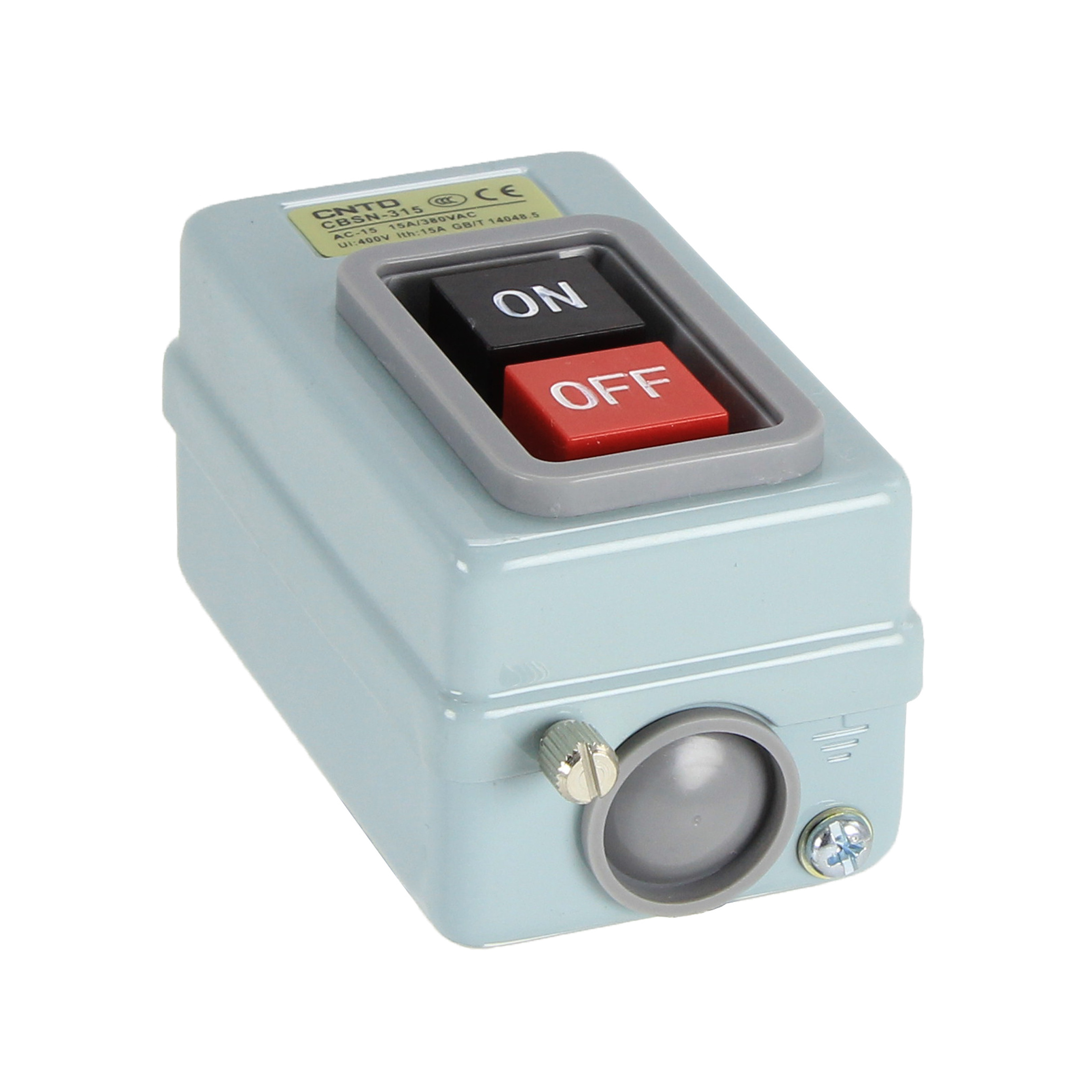

Power Push Button Switch
-
Connection Terminal:
-
M3.5 or M4 or M5
-
Specification:
-
3p 10A 1.5KW/3p 15A 2.2KW/3p 30A 3.7KW
-
Mounting Type:
-
Surface mounting
-
Shell Material:
-
Iron
-
Available Shell Material:
-
Iron, plastic
-
Contact Form:
-
NO, NC, NO+NC
-
Operation Temperature:
-
-10~70C (With no icing)
-
Mechanical Life:
-
1,000,000 times
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Protection Level:
-
No
-
Max. Current:
-
15A
-
Max. Voltage:
-
2.2KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CBSN-315
-
Product Name:
-
Power Push Button Switch
-
Connection Terminal:
-
M3.5 or M4 or M5
-
Specification:
-
3p 10A 1.5KW/3p 15A 2.2KW/3p 30A 3.7KW
-
Mounting Type:
-
Surface mounting
-
Shell Material:
-
Iron
-
Available Shell Material:
-
Iron, plastic
-
Contact Form:
-
NO, NC, NO+NC
-
Operation Temperature:
-
-10~70C (With no icing)
-
Mechanical Life:
-
1,000,000 times
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
Plastic shell and metal shell are for selection
Specifications
|
Model
|
Specification
|
Mounting Type
|
Connection terminal
|
Material
|
|
CBSN-310
|
3 Ф 10A 1.5KW
|
Surface mounting
|
M3.5
|
Iron
|
|
CBSN-315
|
3 Ф 15A 2.2KW
|
|
M4
|
|
|
CBSN-330
|
3 Ф 30A 3.7KW
|
|
M5
|
|
|
CBSP-315
|
3 Ф 15A 2.2KW
|
Surface mounting
|
M4
|
Plastic
|
|
CBSP-330
|
3 Ф 30A 3.7KW
|
|
|
|
|
CBSY-315
|
3 Ф 15A 2.2KW
|
Flush mounting
|
M4
|
Iron
|
|
CBSY-330
|
3 Ф 30A 3.7KW
|
|
|
|
|
CBSS-315
|
3 Ф 15A 2.2KW
|
Flush mounting
|
M3.5
|
Iron
|
|
CBSS-330
|
3 Ф 30A 3.7KW
|
|
M4
|
|
|
CPB-2
|
3A 250VAC
|
Surface mounting
|
M4
|
Plastic
|
|
CPB-3
|
3A 250VAC
|
|
|
|
