The light housing is made of high quality aluminum alloy material.Powder coating, corrosion resistance, easy to clean.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Barrina
-
Model Number:
-
LT9966-1
-
Color Temperature(CCT):
-
3000-6000K
-
Color Rendering Index(Ra):
-
90/80
-
Product Weight（kg）:
-
2.56
-
Product name:
-
LED linear light
-
Size:
-
1200*99*66mm
-
Color:
-
black,white
-
Lamp color temperature:
-
3000-6000K
-
Material:
-
aluminium+PC
-
Voltage:
-
AC85V-240V
-
Wattage:
-
30W/36W/42W
-
Efficiency:
-
100lm/w
-
Ra:
-
80/90
-
warranty:
-
3years/5years
Quick Details
-
Support Dimmer:
-
Yes
-
Design Style:
-
Minimalist
-
Light Source:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Barrina
-
Model Number:
-
LT9966-1
-
Color Temperature(CCT):
-
3000-6000K
-
Color Rendering Index(Ra):
-
90/80
-
Product Weight（kg）:
-
2.56
-
Product name:
-
LED linear light
-
Size:
-
1200*99*66mm
-
Color:
-
black,white
-
Lamp color temperature:
-
3000-6000K
-
Material:
-
aluminium+PC
-
Voltage:
-
AC85V-240V
-
Wattage:
-
30W/36W/42W
-
Efficiency:
-
100lm/w
-
Ra:
-
80/90
-
warranty:
-
3years/5years
Specification
|
Product name
|
LED linear light-9966
|
|
Product size
|
L1200*W99*H66mm
|
|
Material
|
aluminium+PC
|
|
Surface treatment
|
Teflon or Powder coated
|
|
Color Option
|
black/white
|
|
Input voltage
|
85-240V 50/60HZ
|
|
Wattage
|
30W/36W/42W
|
|
CCT
|
3000K/4000K/6000K
|
|
Luminous Efficacy(lm/w)
|
100lm/w
|
|
LEDs life span
|
50000H
|
|
Color Render(CRI）
|
RA≥80 or RA≥90
|
|
Power Factor(PF)
|
≥0.9
|
|
Beam Angel
|
120°
|
|
Optional Features
|
0-10V dimming,DALI dimming,2.4G dimming,CCT dimming
|
|
IP Rate
|
IP20
|
|
Working Temp(℃)
|
-20℃-40℃
|
|
Certification
|
CE,ETL,FCC,ROHS,CCC
|
|
Warranty
|
3 Years or 5 Years
|
Product Features
Aluminum Profile
HIGH CRI
Beautiful natural light
High-quality LED chip,the real "CHIP" is different,using LED chips to restorethe true color of the object, strong heat dissipation, refused to splash screen to protect the eyes and health
Product Specification
|
Model No.
|
Product size
|
Voltage
|
Wattage
|
Efficacy
|
PF
|
CRI
|
Certificate
|
|
BTD9966-1236A0
|
1200x99x66mm
|
85-277V / 220-240V
|
36W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
BTD9966-1030A0
|
1000x99x66mm
|
85-277V / 220-240V
|
30W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
BTD9966-0927A0
|
900x99x66mm
|
85-277V / 220-240V
|
27W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
BTD9966-0618A0
|
600x99x66mm
|
85-277V / 220-240V
|
18W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
BTD9966-0309A0
|
300x99x66mm
|
85-277V / 220-240V
|
9W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
90°splicing
|
150x150x66mm
|
85-277V / 220-240V
|
9W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
120°splicing
|
228x157x66mm
|
85-277V / 220-240V
|
9W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
T splicng
|
245x150x66mm
|
85-277V / 220-240V
|
12W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
Y splicing
|
225x260x66mm
|
85-277V / 220-240V
|
12W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
|
十 splicing
|
245x245x66mm
|
85-277V / 220-240V
|
15W
|
>100lm/w
|
>90
|
>80
|
ETL , CE
|
Installation

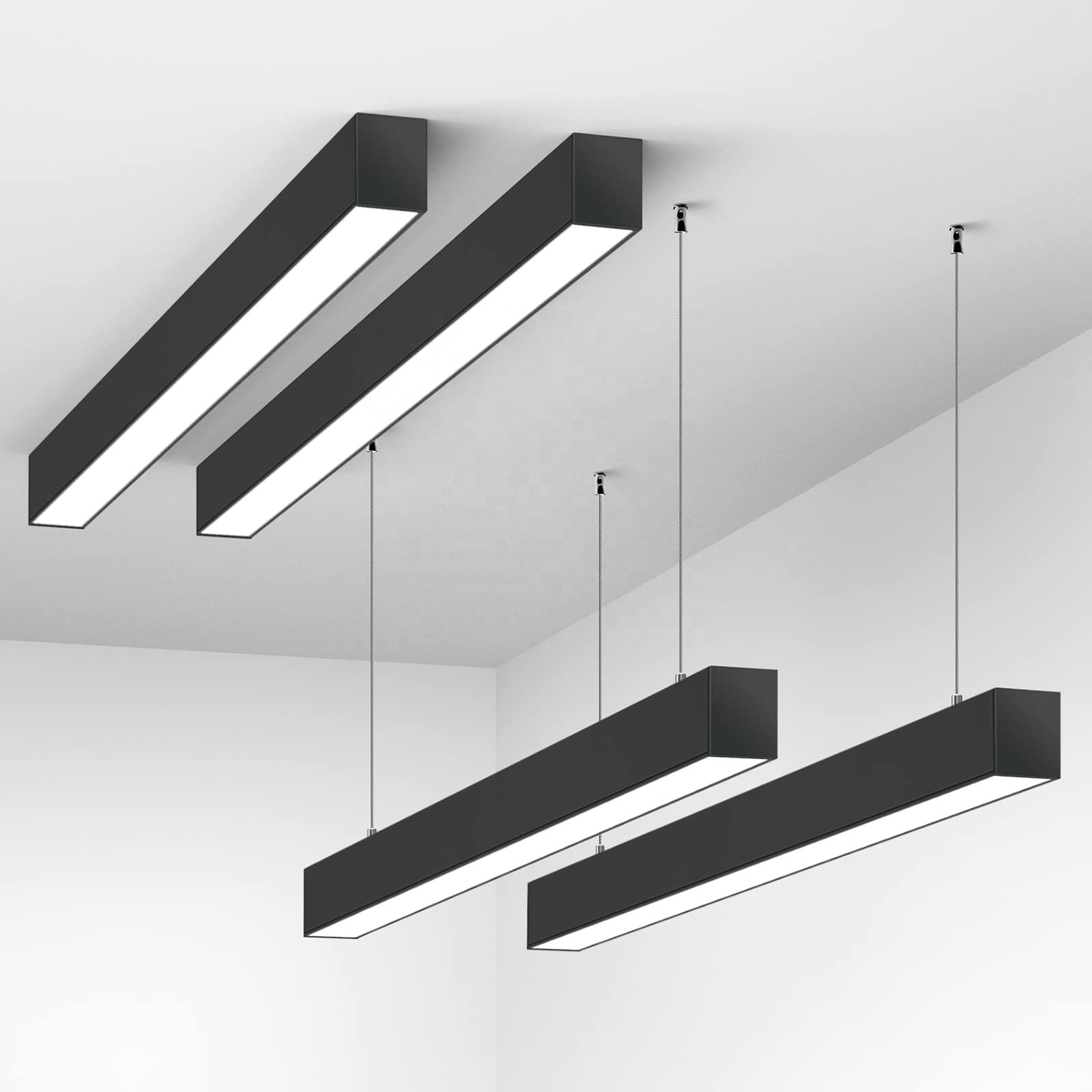

A variety of installation methods, enjoy the changeable visual space fun
Size Diagram
A variety of lengths and spliced shapes, experience a different sense of space
Light Distribution
The illumination data is in full view
Office
Dining Room
Meeting Room
School
Public Buildings
Drawing Room
Why Choose Us
1.Barrina led linear lights adopt
international invention patents
to solve industry pain points faced during production,
installation and after-sales in the linear light field.
2.
Seamless docking technolog
make the lights link easily, changed the status quo that linear light have to reprocessing
on the building site,eliminate a series of quality and process hazards caused by installation. you could link up to 15 lights in a series or use them individually.
3. The products are
standard and integrated
, convenient during production,package,shipping,installation and after-sales.
4. The lights have
constant current and constant voltage intelligent control system
, making they have
high light efficiency and long lifespan
.It is a great option for schools, commercial, office, hotel, exhibition, high-speed rail station, airport and other high-demand places, bring you the most
comfortable environment
all the time.
