Ultrasonic sealing for cup body, both okay for single or double PE coated paper.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
5.0 Kw
-
Dimension(L*W*H):
-
2600*1200*1600mm
-
Weight:
-
2100 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Single Turn Plate Paper Cup Making Machine
-
Raw material:
-
Single PE or Double PE Coated Paper
-
Capacity:
-
80-100 Pcs/min
-
Finished Products:
-
Colorful Paper Cup
-
Usage:
-
New
-
Application:
-
Making Paper Cup
-
Machine Type:
-
Paper Folding Machine
-
Drive way:
-
Gear drive/Chain drive
-
Package Size(L * W * H):
-
2900*1400*1800mm
Quick Details
-
Production Capacity:
-
100 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGQI
-
Voltage:
-
380V
-
Power:
-
5.0 Kw
-
Dimension(L*W*H):
-
2600*1200*1600mm
-
Weight:
-
2100 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Single Turn Plate Paper Cup Making Machine
-
Raw material:
-
Single PE or Double PE Coated Paper
-
Capacity:
-
80-100 Pcs/min
-
Finished Products:
-
Colorful Paper Cup
-
Usage:
-
New
-
Application:
-
Making Paper Cup
-
Machine Type:
-
Paper Folding Machine
-
Drive way:
-
Gear drive/Chain drive
-
Package Size(L * W * H):
-
2900*1400*1800mm
Product Description

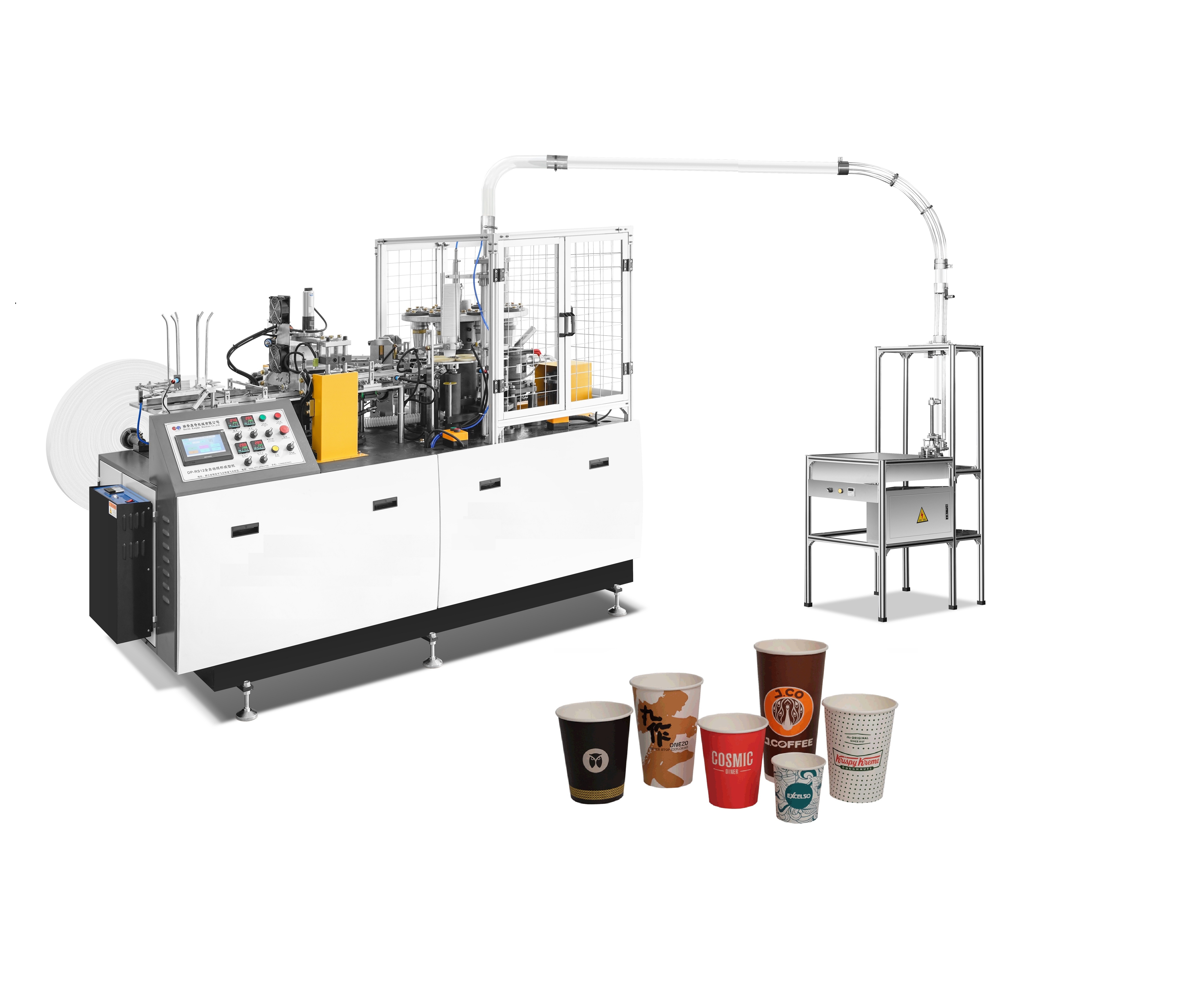

DP-RS 12 Automatic Paper Cup Making Machine
●
PRODUCT APPLICATION
The new DP-RS 12 paper cup forming machine is a fully automatic paper cup forming equipment. It adopts multi-row automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic welding or electric heating welding, oil injection, mechanical hand paper tube transfer, upper cup tube, and punching. The continuous processes of bottoming, bottom folding, preheating, knurling, curling, and cup closing can stably produce paper cups of various specifications. It is a new-shaped paper cup forming equipment independently researched and developed by our company after a comprehensive technical improvement.
|
Model
|
DP-RS12
|
PBCL-100
|
DPJ-X12
|
DPJ- A22
|
|||
|
Paper Raw Material
|
Single/Double PE Coated Paper(Both OK)
|
|
|
|
|||
|
Paper Specifications
|
150-350 g/m
2
|
150-350 g/m
2
|
170-380 g/m
2
|
150-350 g/m
2
|
|||
|
Cup Size
|
3-16oz
|
3-9oz
|
3-12oz
|
10-22oz
|
|||
|
Speed
|
80-90 pcs/min
|
100-110 pcs/min
|
120-130 pcs/min
|
50-60 pcs/min
|
|||
|
Power Supply
|
380V /220V 50Hz
|
|
|
|
|||
|
Total Power
|
4.8 KW
|
4.5 KW
|
8.0KW
|
4.8KW
|
|||
|
Gas Source
|
0.4m
3
/min
|
|
|
|
|||
|
Weight
|
2000KG
|
1500KG
|
2600KG
|
1850KG
|
|||
|
Packing Size
|
2.60*1.30*1.70 M
|
2.1*1.2*1.6 M
|
3.0*1.3*1.9 M
|
2.90*1.3*1.8 M
|
|||
Main Features
1) Simple operation and easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution.
4) Can add the cup stacker, which can directly automatic collect the cup.
Detailed Images
1. Ultrasonic Sealing
2. Single Turntable Plate
It is formed by one turntable for paper cup forming, which reduces the stroke of the main functional machanism and rationally distributes the various functional assemblies.
3. Oil Lubricate System
Full-automatic lubricating system is applied, thus leading to a long lifespan, with less human maintenance.
Also the oil can be recycle used.
4. Photoelectric
Photoelectricity sensor to track every step.
Auto alarm when paper fan go short.
Auto stop when multi paper fans delivery.
Auto alarm when any fault on the machine.
5. Gear Drive System
Gear transmission is more stable than chain transmission, and with high precision.
It's more convenient to operate by using the touch screen and PLC control, all the working information can be shown on the display.
Product Application
●
WORKING PROCEDURE EXPLANATION
To produce the cups, a special coated paper with one-side or double side PE lamination is used. Pre-cut paper is feeding
automatically to a cone mould, and then the two edges are welded by normal heater or ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup. Then, the cup bottom is preheated and folded with the bottom paper to heating, knurling, curling and final step the paper cup is finished and delivered.
Custom Paper Cup
Making paper cup mold
according to your size
A : Top Diameter
B : Height
C : Bottom Diameter
D : Bottom Depth
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2.60*1.30*1.70 M
|
|
|
Weight
|
2T
|
|
|
Packaging Details
|
The film packing as picture shows. If container is too tighter,we will use pe film for packing or pack it according to customers special requirements.
|
|
|
Packaging
|
|
|
|
Size
|
2.70*1.40*1.80 M
|
|
|
Weight
|
2.1 T
|
|
|
Packaging Details
|
The normal package is wooden box, If export to European countries,the wooden box will be fumigated, or pack it according to customers special requirements.
|
|
Our Company
Company Introduction
Zhejiang Kangqi Machinery Co.,Ltd., established in 2008, is a professional engaged in the research, development, sale and service of Paper Cup, Paper Bowl, Paper Lid, Paper Bucket Machines. We are located in Ruian City Zhejiang Province with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained certificates such as CE, ISO. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as India, Pakistan, Bangladesh, Egypt and so on. We also welcome more orders from all over the world.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
—————————————————————————————————————————————————
———————————————————————————————————————————————————
Related Products
FAQ
Q1
.
What size of the cup/bowl you can make?
We can make paper cups/bowls from 2.5OZ-45OZ.
Q2.
What is the packing way of the machine?
Usual , With wooden cases packing or iron tray packing.
Q3.
How about the machine guarantee?
One year. During this period, any parts damaged caused by machine self, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
Q4.
What about the machine installation and training?
If customer request, we will send our technician to install and train operation, but all costs should be covered by buyer. ( including getting visa, 2-way air tickets, food. Hotel. Local traffic, translator, salary ).
Q5.
What about the payment term?
Mostly 30%T/T in advanced,the rest need paid before shipping, or L/C at sight.
Q6.
What information should i let you know if i want to get a quotation?
--Quantity
--What's the detailed size (top diameter,bottom diameter,and height)
--What's the paper thickness.
