Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Savgood
-
Model Number:
-
SG-PTZ2050NO-L1K
-
Video Compression Format:
-
H.265/H.264/H.264H/MJPEG
-
Image Sensor:
-
1/2" Sony Exmor CMOS Sensor
-
Megapixel:
-
2Mp/1920x1080
-
Lens:
-
6-300mm focal length
-
Optical zoom:
-
50x
-
Day/Night:
-
Electronic ICR
-
Defog:
-
Optical Defog
-
EIS:
-
Electronic Image Stabilization (ON/OFF)
-
Focus Mode:
-
Auto/Manual/Semi-automatic/One time
-
Weight:
-
16.7kg
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection
-
Function:
-
Waterproof / Weatherproof, Wide Angle, PAN-TILT, RESET
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Savgood
-
Model Number:
-
SG-PTZ2050NO-L1K
-
Video Compression Format:
-
H.265/H.264/H.264H/MJPEG
-
Image Sensor:
-
1/2" Sony Exmor CMOS Sensor
-
Megapixel:
-
2Mp/1920x1080
-
Lens:
-
6-300mm focal length
-
Optical zoom:
-
50x
-
Day/Night:
-
Electronic ICR
-
Defog:
-
Optical Defog
-
EIS:
-
Electronic Image Stabilization (ON/OFF)
-
Focus Mode:
-
Auto/Manual/Semi-automatic/One time
-
Weight:
-
16.7kg
Model:
SG-PTZ2050NO-L1K

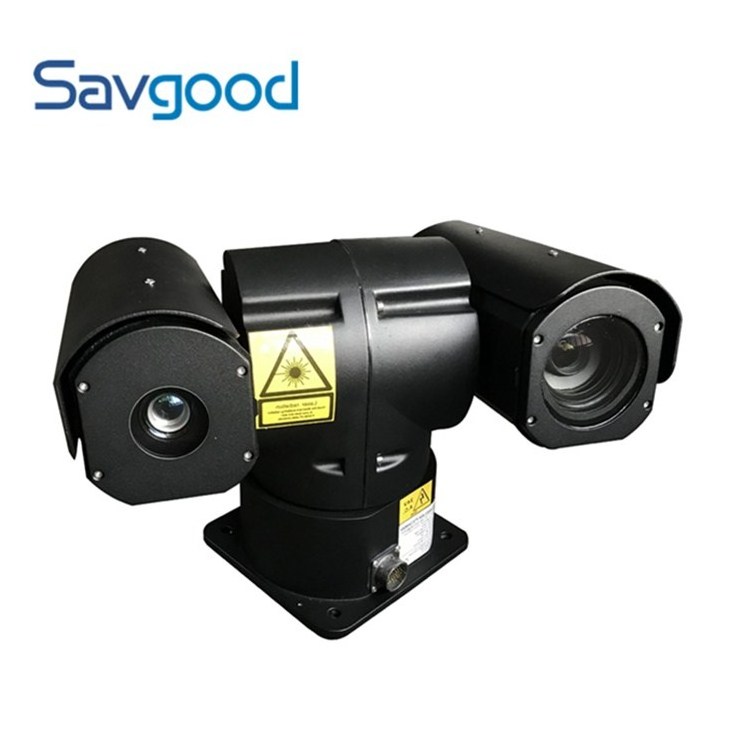

- 2M p 50 x Long Range Zoom Starlight Laser Network Vehicle PTZ Camera
Features:
> Sony Exmor Starlight C MO S Sensor
> Powerful 50x (6~300mm) optical zoom
> Max. 25/30fps @ 2Mp(1920x1080) Resolution
> Support various IVS functions
> Up to 1000m Laser IR Distance
> Optical Defog Function
> IP66
Specifications:
|
Model |
SG-PTZ2050NO-L1K |
||||
|
Sensor |
Image Sensor |
1/2" Sony Starvis progressive scan CMOS |
|||
|
Effective Pixels |
Approx. 2.13 Megapixel |
||||
|
Lens |
Focal Length |
6mm~300mm, 50x Optical Zoom |
|||
|
Aperture |
F1.4~F4.5 |
||||
|
Field of View |
H: 61.9°~1.3°, V: 37.2°~0.7°, D: 69°~1.5° |
||||
|
Close Focus Distance |
1m~1.5m (Wide~Tele) |
||||
|
Zoom Speed |
Approx. 8s (Optical Wide~Tele) |
||||
|
DORI Distance (Human) |
Detect |
Observe |
Recognize |
Identify |
|
|
3,384m |
1,343m |
878m |
338m |
||
|
Video |
Compression |
H.265/H.264/H.264H/MJPEG |
|||
|
Streaming Capability |
3 streams |
||||
|
Resolution |
50Hz: 25fps@2MP(1920×1080), 25fps@1MP(1280×720) 60Hz: 30fps@2MP(1920×1080), 30fps@1MP(1280×720) |
||||
|
Video Bit Rate |
32kbps~16Mbps |
||||
|
Audio |
AAC / MP2L2 |
||||
|
Network |
Storage |
TF card (256 GB), FTP, NAS |
|||
|
Network Protocol |
Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP |
||||
|
Multicast |
Support |
||||
|
General Events |
Motion, Tamper, SD Card, Network |
||||
|
IVS |
Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. |
||||
|
S/N Ratio |
≥55dB (AGC Off, Weight ON) |
||||
|
Minimum Illumination |
Color: 0.001Lux/F1.4; B/W: 0.0001Lux/F1.4 |
||||
|
Noise Reduction |
2D/3D |
||||
|
Exposure Mode |
Auto, Aperture Priority, Shutter Priority, Gain Priority, Manual |
||||
|
Exposure Compensation |
Support |
||||
|
Shutter Speed |
1/1~1/30000s |
||||
|
BLC |
Support |
||||
|
HLC |
Support |
||||
|
WDR |
Support |
||||
|
White Balance |
Auto, Manual, Indoor, Outdoor, ATW, Sodium lamp, Street lamp, Natural, One Push |
||||
|
Day/Night |
Electrical, ICR(Auto/Manual) |
||||
|
Focus Mode |
Auto, Manual, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF |
||||
|
Electronic Defog |
Support |
||||
|
Optical Defog |
Support, 750nm~1100nm channel is Optical Defog |
||||
|
Heat Haze Reduction |
Support |
||||
|
Flip |
Support |
||||
|
EIS |
Support |
||||
|
Digital Zoom |
16x |
||||
|
IR Distance |
Up to 1000m |
||||
|
IR On/OFF Control |
Auto/Manual |
||||
|
IR LEDs |
Laser Module |
||||
|
Wiper |
N/A |
||||
|
PTZ |
Material |
Integrative structure design, Aluminum-Alloy shell |
|||
|
Driving Mode |
Turbine Worm Drive |
||||
|
Power-Off Protection |
Support |
||||
|
Pan/Tilt Range |
Pan: 360°, Endless; Tilt: -84°~84° |
||||
|
Pan/Tilt Speed |
Adjustable, pan: 0°~60°/s; Tilt: 0°~40°/s; |
||||
|
Tour |
4 |
||||
|
Presets |
128 |
||||
|
Protocol |
Pelco-P/D |
||||
|
Connector |
Support |
||||
|
Ethernet |
RJ-45 (10Base-T/100Base-TX) |
||||
|
RS485 |
1 |
||||
|
Audio I/O |
1/1 |
||||
|
Alarm I/O |
1/1 |
||||
|
Cable |
5m by default (with 2m Circle Protection part) |
||||
|
Power Supply |
DC24~36V±15% / AC24V |
||||
|
Power Consumption |
50W |
||||
|
Operating Conditions |
-30°C~+60°C/20% to 80%RH |
||||
|
Protection Level |
IP66; TVS 4000V Lightning Protection, surge prevention |
||||
|
Casing |
Metal |
||||
|
Color |
White by default (Black Optional) |
||||
|
Dimensions(L*W*H) |
Approx. 260mm*387mm*265mm |
||||
|
Net Weight |
8.8kg |
||||
|
Gross Weight |
16.7kg |
||||
Dimension:
Savgood Technology - Zoom Camera Modules manufacturer.
Most of Long Range Zoom solutions are using Normal box camera and Motorized Lens. Which is very Expensive, Not Stable and Low Efficiency Auto Focus.
To solve the current issues of Long Range Zoom cameras solution, based on SONY's popular, high image quality and ultra starlight Exmor/Exmor R CMOS Sensor, we are focus on Ultra LONG RANGE ZOOM camera modules, and have successfully designed & developed many kinds of Zoom Camera Modules, for example, 2Mp 86x Zoom (10~860mm), 2Mp 90x Zoom (6~540mm), 2Mp/4K/8Mp 50x Zoom (6~300mm).
They can support our own fast & accurate excellent Auto Focus algorithm, Defog and IVS (Intelligent Video Surveillance) functions.
