Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
550 KG
-
Power (kW):
-
3
-
Model:
-
DO3112
-
Spindle speed:
-
10000r/min
-
Total installed power:
-
3KW
-
Rated current:
-
4.7A
-
Overall dimensions:
-
1600*1200*1250mm
-
Maximum groove width:
-
10-130mm
-
Maximum groove depth:
-
5-60mm
-
Weight:
-
480KG
-
Power supply:
-
380v 50hz
Quick Details
-
Place of Origin:
-
shandong,China
-
Brand Name:
-
deou
-
Machine Type:
-
Double-end grooving machine
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
550 KG
-
Power (kW):
-
3
-
Model:
-
DO3112
-
Spindle speed:
-
10000r/min
-
Total installed power:
-
3KW
-
Rated current:
-
4.7A
-
Overall dimensions:
-
1600*1200*1250mm
-
Maximum groove width:
-
10-130mm
-
Maximum groove depth:
-
5-60mm
-
Weight:
-
480KG
-
Power supply:
-
380v 50hz
Products Description

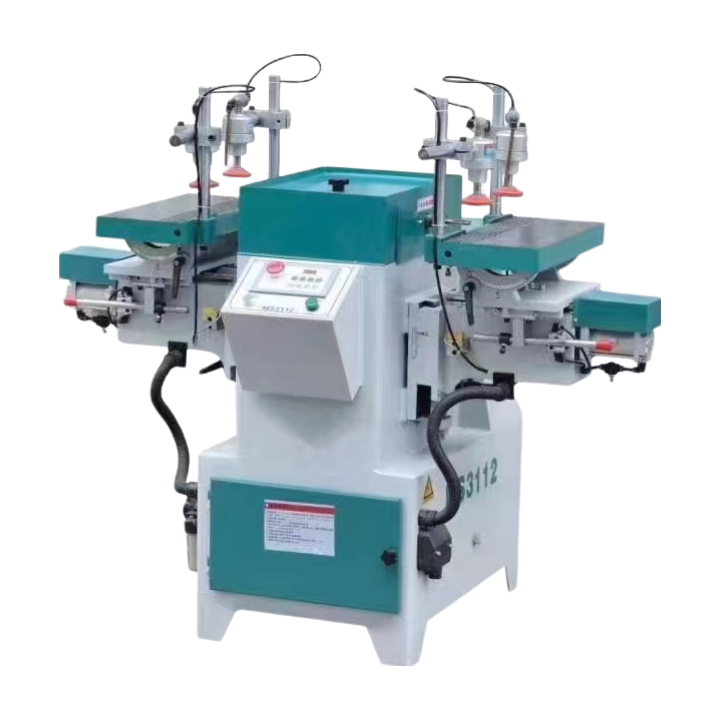

The width of tongue and groove for doors, tables, chairs and other products can be adjusted by the digital display so that it is convenient to adjust the processing size. At the same time, the working table can be tilted 30 degrees for tilted mortise and tenon groove machining; the spindle assembly slides along the precision cylindrical guideway with high weighing frequency to ensure the machining quality and efficiency. The high precision spindle is suitable for heavy cutting.
Technical parameters
|
Spindle speed
|
10000r/min
|
|
Total installed power
|
3KW
|
|
Rated current
|
4.7A
|
|
Overall dimensions
|
1600*1200*1250mm
|
|
Maximum groove width
|
10-130mm
|
|
Maximum groove depth
|
5-60mm
|
|
Weight
|
480KG
|
|
Weight of finished wooden box
|
550kg
|
|
Power supply
|
380v 50hz
|
|
Wooden box size
|
1560*1130*1330mm
|
