Quick Details
-
Rated voltage:
-
12V DC
-
Max. continious working voltage:
-
15V DC
-
Transfer rate:
-
10Mbps
-
Insert lose:
-
≤0.2dB
-
Terminal type:
-
Terminal block
-
Discharge capacity:
-
10kV&5KA
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANSHFA
-
Model Number:
-
LY10
-
Rated voltage:
-
12V DC
-
Max. continious working voltage:
-
15V DC
-
Transfer rate:
-
10Mbps
-
Insert lose:
-
≤0.2dB
-
Terminal type:
-
Terminal block
-
Discharge capacity:
-
10kV&5KA
Products Description
Brief lntroduction

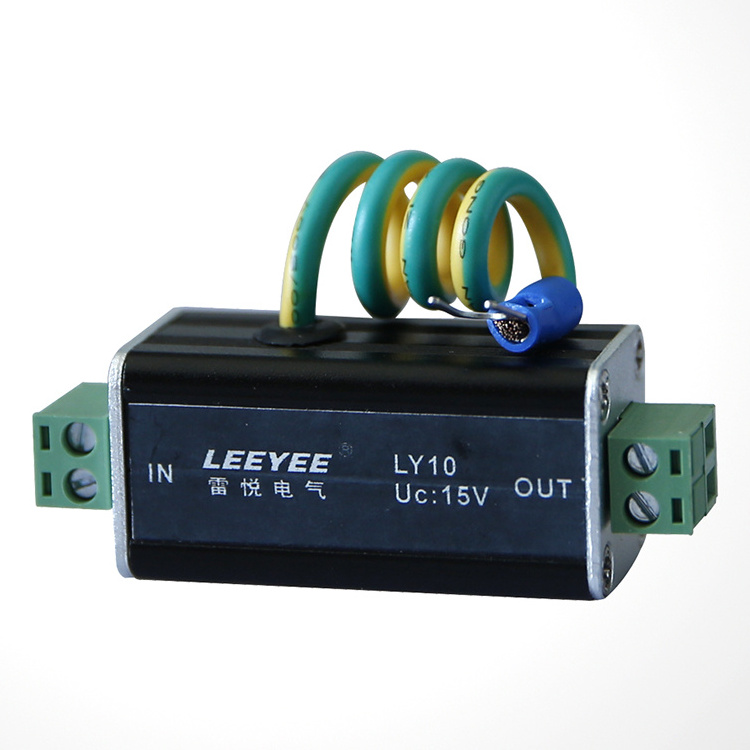

LY10 Signal Twisted-pair Surge Protective Device is widely used in computer communication systems, monitoring control systems,access control intercom system, automatic control systems, security systems and other data transfer control signal line surge protection against lightning. Typical for computer RS485, RS422, RS232 other serial interface.
|
Nominal operating voltage(Un)
|
12V
|
|
Maximum continuous operating voltage(Uc)
|
15V
|
|
Standard discharge current(In)
|
5KA(8/20us)
|
|
Maximum discharge current(Imax)
|
10KA(8/20us)
|
|
Clamping voltage(Up)
|
<60V
|
|
Response time(tA)
|
<10ns
|
|
Transfer rate(Vs)
|
<10Mbps
|
|
Insertion loss(AE)
|
<0.2dB
|
|
Working temperature
|
-40 to +80oC
|
|
Test standard
|
IEC61643-21
|
Application
* Products form the interface card for standard screw-type connection interface circuit to protect the 1-2 group.
* Various rated voltage selection, product installation and maintenance is very convenient.
* Three-stage series type, nominal discharge current of up to 5kA, picosecond response time, can fully protect the equipment using the latest semiconductor devices.
* Typical for the RS485/RS422 serial communication.
* Various rated voltage selection, product installation and maintenance is very convenient.
* Three-stage series type, nominal discharge current of up to 5kA, picosecond response time, can fully protect the equipment using the latest semiconductor devices.
* Typical for the RS485/RS422 serial communication.
