Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Signalinks
-
Place of Origin:
-
Guangdong, China
-
Product:
-
Signalinnks best 4g Ite wifi router
-
Chipset:
-
ZX7520V3
-
Peak Transmission Rate:
-
150Mbps/50Mbps
-
Frequency:
-
1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41
-
The output voltage:
-
5V DC±10%,1A
-
WiFi Sharing:
-
32 users or 16 users
-
Antenna:
-
2*2 MiMo for LTE and WiFi
-
Protocol:
-
IEEE 802.11b/g/n
-
Certification:
-
CE/ROHS/ISO9001/FCC
-
ESIM:
-
support
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Signalinks
-
Place of Origin:
-
Guangdong, China
-
Product:
-
Signalinnks best 4g Ite wifi router
-
Chipset:
-
ZX7520V3
-
Peak Transmission Rate:
-
150Mbps/50Mbps
-
Frequency:
-
1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41
-
The output voltage:
-
5V DC±10%,1A
-
WiFi Sharing:
-
32 users or 16 users
-
Antenna:
-
2*2 MiMo for LTE and WiFi
-
Protocol:
-
IEEE 802.11b/g/n
-
Certification:
-
CE/ROHS/ISO9001/FCC
-
ESIM:
-
support
| Signalinks Communication Technology Co.,Ltd | |||
|

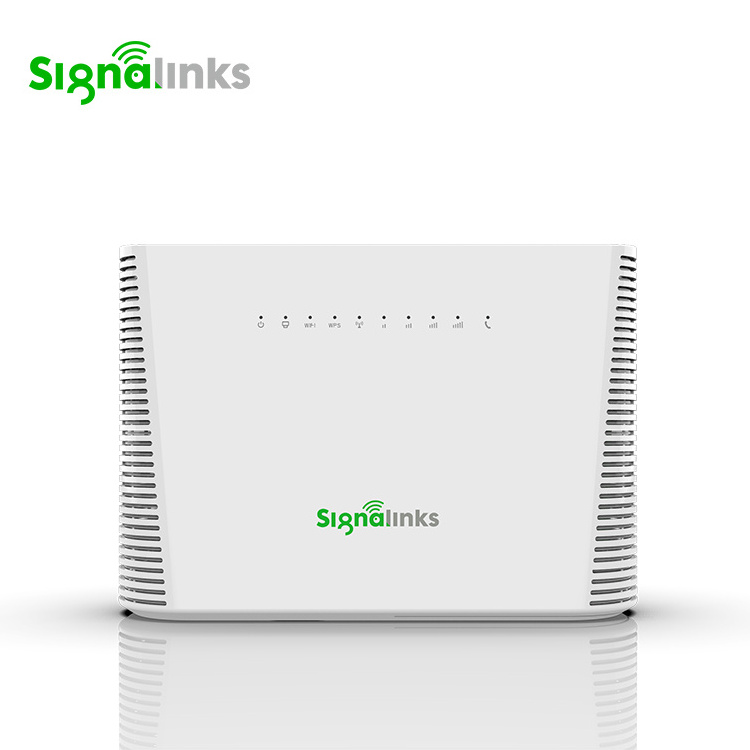

Date:2020-7-7 4G CPE Router specification
Revision Number:V1.5 |
|||
| Category | Spec item | Description | Remarks |
| Basic Info | Model Name | R109G | |
| Type | CPE | ||
| Dimension | 196mm*60mm*138mm | ||
| Weight | about 300g | ||
| Color | White/Black | ||
| Launch time(PP) | July.2020 | ||
| Air Interface | Technical Standard |
Compatible with WCDMA, FDD-LTE,TDD-LTE
Default 802.11b/g/n |
|
| Frequency |
LTE:1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41
WCDMA:B1/5/8/ |
normal:
LTE:B1/3/5/7/8/20/40/41 WCDMA:B1/5/8 |
|
| WIFI | 2.4G, WIFI 2*2 MIMO,802.11 a/b/g/n | ||
| Performance | Maximum Data Throughput |
LTE CAT 4
FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
Theoretical peak rates |
| Hardware | Receive Diversity | Support Receive Diversity | |
| BB Chipset | ZX297520V3E | ||
| WiFi Chipset | RTL8192ES | ||
| WiFi Memory | 32M | ||
| power consumption | <10W | ||
| Power Voltage | DC12V/1A | ||
| USIM/SIM |
2FF SIM card
support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
||
| LED | Power Indication LED, WiFi Indication LED, Interface Status LED,Internet Status LED, Signal Strength LED | ||
| Antenna |
2*2 MiMo internal WIFI antenna;2*2 MiMo internal LTE antenna;
2 external LTE antenna(optional) |
||
| Buttons | Power,Reset,WPS | ||
| Ethernet | 4 LAN, 10BaseT/100Base/ automatic adaptive port | ||
| RJ11 | 1*RJ11 | ||
| Reset | Pin-hole | ||
| ESD | Contact±8KV,Air±10KV | ||
| Battery | optional | ||
| Software | SW Update | TR069 & FOTA(customized) & Local | |
| WIFI Mode | AP/STATION mode | ||
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK | ||
| SMS & Phone Book | YES | ||
| UPnP | Need customize | ||
| Voice | VoLTE & CS Domain voice & VOIP | ||
| IPv4 | Support | ||
| IPv6 | Support | ||
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | ||
| Data Statistics | Support | ||
| VPN Pass Through | N/A | ||
| SIM Lock | Support | ||
| HTTP | Support | ||
| DMZ | Support | ||
| Environment | Operating Temperature | Normal:-10°C to +65°C; | |
| Storage Temperature | -20° C to +85° C | ||
| Humidity | 5%~ 95% | ||
