Quick Details
-
TX power:
-
<24dBm
-
RX sensitivity:
-
<-109dBm
-
Standard:
-
IEEE802.11b/g/n
-
Ethernet:
-
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX
-
Serial:
-
1 RS232(or RS485/RS422) port
-
Standard Power:
-
DC 12V/1.5A
-
Security:
-
WEP, WPA, WPA2, etc. WPS (optional)
-
CPU:
-
Industrial 32bits CPU
Quick Details
-
Place of Origin:
-
Fujian, China
-
name:
-
M2M Industrial Wireless 4G Router With Dual SIM - Dual LTE modules
-
Bandwidth:
-
HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed
-
TX power:
-
<24dBm
-
RX sensitivity:
-
<-109dBm
-
Standard:
-
IEEE802.11b/g/n
-
Ethernet:
-
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX
-
Serial:
-
1 RS232(or RS485/RS422) port
-
Standard Power:
-
DC 12V/1.5A
-
Security:
-
WEP, WPA, WPA2, etc. WPS (optional)
-
CPU:
-
Industrial 32bits CPU

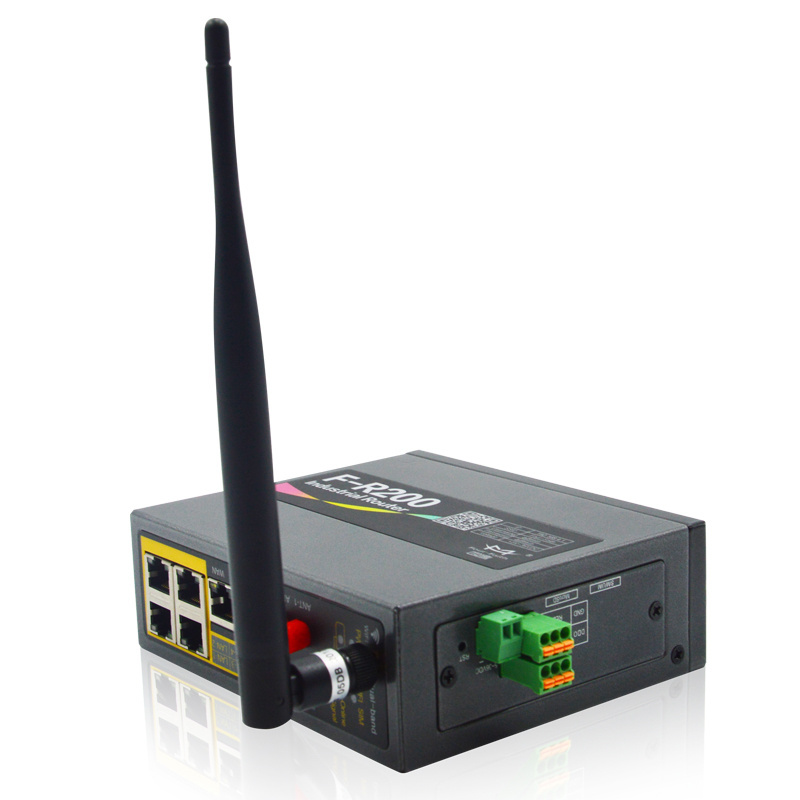

M2M Industrial Wireless 4G Router With Dual SIM - Dual LTE modules
|
•
Ethernet, serial and I/O for connecting diverse field assets
• Maximizes uptime by seamlessly switching between the multiple Internet interfaces • Secure your data using a variety of VPN tunneling schemes • Din-Rail or wall mounting or desktop |
|
•
Serial and I/O for connecting diverse field assets
• Gigabit Ethernet Ports • 802.11b/g/n(2.4GHz) and 802.11ac(5GHz) dual-band Wi-Fi • Secure your data using a variety of VPN tunneling schemes • Din-Rail or wall mounting or desktop |
Product Datasheet for M2M Industrial Wireless 4G Router With Dual SIM - Dual LTE modules
| Item | Content |
| Interfaces | 10/100 Base-T RJ45 Ethernet port, RS-232 or RS-485 Serial Console Port |
| Input/Output | (6) pin 3.5mm terminal block,(2) DI, (1) DO, (1) Relay |
| VPN |
IPSec, GRE, and OPENVPN Client, Up to 10 concurrent tunnels, Split Tunnel , Dead Peer Detection (DPD) , Multiple Subnets ,VPN Failover |
| SERIAL | TCP/UDP PAD Mode,Modbus (ASCII, DTU, Variable), PPP, Reverse Telnet |
| Housing | Metal |
| Dimension | (L x W x H): 133 x 115.7 x 45 mm |
| Weight | 520g |
| Operating Temperature | (-35°C t~ +75°C) / (-31°F ~ +167°F) |
| Warranty | 1 year |
| Accessories | Power Adapter, RS232 serial cable, Cellular Antenna,Wifi Antenna, GPS antenna(Male SMA) 1 (optional) |
Detailed Images
for
m2m industrial 4g lte cellular cdma umts vpn wifi wireless router
|
Advanced Failover Maximise uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM) |
|
|
Multiple Tunnelling Schemes Secure your data using a variety of VPN tunnelling schemes, including IPSec, L2TP, PPTP, Open VPN and GRE. |
|
|
|
Flexible Wi-Fi 802.11 b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID |
|
Serial Port Ethernet, serial and I/O for connecting diverse field assets. |
