Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1500*3000mm
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cutting method:
-
plasma/flame
-
lifting travel:
-
≤100mm
-
Height control:
-
Automatic THC/Capacitive THC
-
Max idle speed Cutting speed:
-
18000mm/min 0-15000 mm/min(according to the thickness of material)
-
Running accuracy:
-
plasma≤0.005mm/ flame≤0.1mm
-
Cutting thickness:
-
plasma<20mm / flame Cutting ≤150mm
-
Plasma cutting gas:
-
air
-
Flame cutting gas:
-
Oxygen + ethyne
-
Nesting software:
-
Starcam(Optional:Fastcam))
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FEIMAI
-
Model Number:
-
FX-LML1530HD
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1500*3000mm
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cutting method:
-
plasma/flame
-
lifting travel:
-
≤100mm
-
Height control:
-
Automatic THC/Capacitive THC
-
Max idle speed Cutting speed:
-
18000mm/min 0-15000 mm/min(according to the thickness of material)
-
Running accuracy:
-
plasma≤0.005mm/ flame≤0.1mm
-
Cutting thickness:
-
plasma<20mm / flame Cutting ≤150mm
-
Plasma cutting gas:
-
air
-
Flame cutting gas:
-
Oxygen + ethyne
-
Nesting software:
-
Starcam(Optional:Fastcam))
-
Certification:
-
CE
Mini Gantry CNC Plasma Cutter
Product Feature:
1 . Adopt newest aviation aluminum meticulously processing , full of The Times flavor, beautiful and liberal, delicate and durable. New transmission structure, precision rack and special reducer, ensure the accuracy of the transmission, Y axis double motor drive, provide large torque drivers. Control cables is import block flame retardant wear-resistant materials refined.
2 . The drive system adopts American chip control, high precision motor, ac power, large torque, ensure smoothly under the high speed.
3 . CNC system adopts 7 "numerical control system, transformation in both Chinese and English. High accuracy arc pressure type automatically height contro l .
4. Optional models: 1530\1540\1560\2030\2040\2060\2040\20120 \3060.
Parameter:
|
Model |
FX-LML1530HD |
|
Cutting method |
plasma/flame |
|
Cutting size |
1500*3000mm |
|
lifting travel |
≤100mm |
|
Height control |
Automatic THC/Capacitive THC |
|
Max idle speed Cutting speed |
18000mm/min 0-15000 mm/min(according to the thickness of material) |
|
Running accuracy |
plasma≤0.005mm/ flame≤0.1mm |
|
Cutting thickness |
plasma<20mm / flame Cutting ≤150mm |
|
Plasma cutting gas |
air |
|
Flame cutting gas |
Oxygen + ethyne |
|
Gas pressure |
0.4-0.5Mpa for normal plasma power |
|
Power |

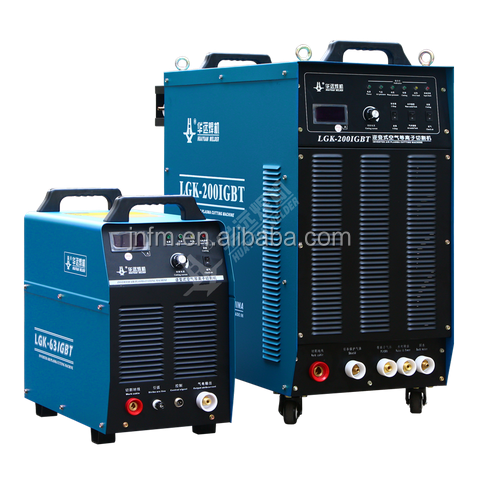

220V/380V 50HZ(we suggest 63A,120A,160A,200A etc) |
|
No. of cutting torch and nozzle |
One set of plasma cutting torch, One set of flame cutting torch,10pcs nozzle |
|
Nesting software |
Starcam(Optional:Fastcam)) |
|
Packing size |
3500*300*300mm, 2900*800*750mm |
Product details:
Cutting effective:
Goods in stock:
CE Certification:
