1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV,fire-resistant,anti-static and with other characters.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XX-012
-
Thickness:
-
10-300mm
-
Size:
-
500*500mm, 800*800mm customized size
-
color:
-
black/ blue/ red/yellow(other color is aviliable)
-
Density:
-
0.96g/cm3
-
Keyword:
-
Crane outrigger pads
-
Hardness:
-
68
-
Tensile strength at break:
-
34Mpa
-
Surface:
-
customer available
-
Usage:
-
crane stable
-
Advantage:
-
high impact resistant and portable
-
Application:
-
construction/ civil engineering
-
MOQ:
-
1000kgs
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xinxing
-
Model Number:
-
XX-012
-
Thickness:
-
10-300mm
-
Size:
-
500*500mm, 800*800mm customized size
-
color:
-
black/ blue/ red/yellow(other color is aviliable)
-
Density:
-
0.96g/cm3
-
Keyword:
-
Crane outrigger pads
-
Hardness:
-
68
-
Tensile strength at break:
-
34Mpa
-
Surface:
-
customer available
-
Usage:
-
crane stable
-
Advantage:
-
high impact resistant and portable
-
Application:
-
construction/ civil engineering
-
MOQ:
-
1000kgs
Product Description

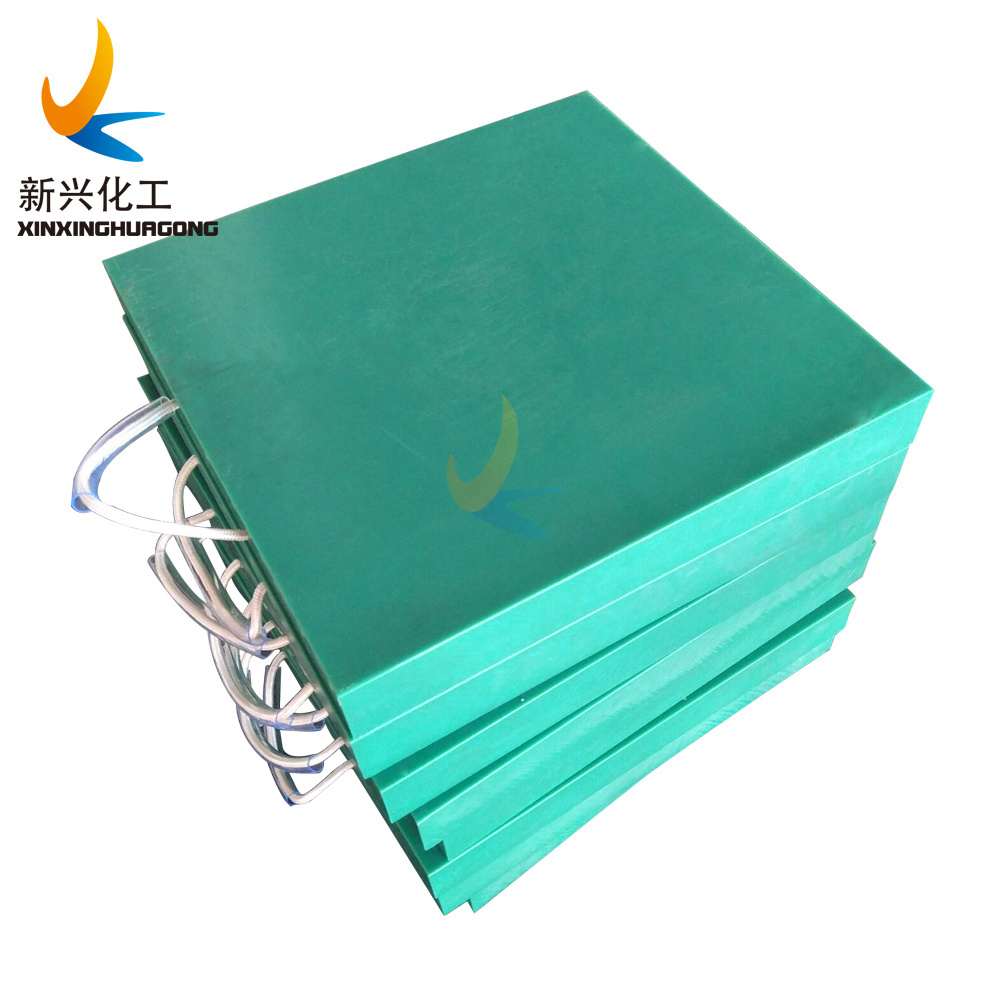

UHMWPE plastic energy bearing crane outrigger mats jacking base pads
Corrosion resistant UHMWPE plastic energy bearing crane outrigger mats are made from ultra high
molecular weight polyethylene（UHMWPE）, an engineering material that offers a superior combination of impact strength, wear and chemical resistance. Each pad is equipped with a durable wire handle to allow for easy storage and mobility. Multicolored stable corrosion and chemical resistant uhmwpe outrigger pads/stabilizer pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
Xinxing engineered plastic cribbing plates and outrigger pads are lightweight,strong,and solid designed to support your crane,and can be easily handld and positioned by one person or two.It cn not be warped like wood or corroded like steel.It won't break in the long guaranteed time and obviously could not attract thieves.
Detailed Images
Advantages of UHMWPE plastic energy bearing crane outrigger mats
· Do not absorb moisture and will not swell up over time due to exposure outdoors.
· Do not lose their impact strength over time.
· Are flexible, so they will bend but not break under extreme loads.
· Are easy to clean due to their low friction surface.
· Are resistant to chemicals,Non-Conductive,Durable & Long Lasting
· Are safer to use in the field compared to other wood based pads.
· Manufactured in many shapes, including round.
· Simple to install and requires virtually no maintenance.
· Unlimited lifetime warranty.
· Do not absorb moisture and will not swell up over time due to exposure outdoors.
· Do not lose their impact strength over time.
· Are flexible, so they will bend but not break under extreme loads.
· Are easy to clean due to their low friction surface.
· Are resistant to chemicals,Non-Conductive,Durable & Long Lasting
· Are safer to use in the field compared to other wood based pads.
· Manufactured in many shapes, including round.
· Simple to install and requires virtually no maintenance.
· Unlimited lifetime warranty.
Our UHMWPE Characters:
Properties of PE
|
Property
|
Unit
|
Value
|
|
Density
|
g/cm3
|
0.93-0.96
|
|
Average molecular weight
|
g/mol
|
3million- 10 million
|
|
Tensile strength (23°C in air)
|
M Pa
|
22
|
|
Breaking strength
|
M Pa
|
42
|
|
Tensile strain at break
|
%
|
600
|
|
Charpy impact strength (notched)
|
mJ/mm2
|
No break
|
|
Ball indentation hardness
|
N/mm2
|
42
|
|
Shore D hardness
|
--
|
65-70
|
|
Abrasion
|
%
|
70-80, steel = 100
|
|
Static Friction Coefficient
|
--
|
≤0.16
|
|
Kinetic Friction Coefficient
|
--
|
≤0.10
|
|
Water Absorption
|
--
|
NIL
|
|
Elongation at break at 23 degress
|
%
|
≥300
|
Packing & Delivery
